Siemens Climatix HMI-DM CB1P3916en02
Building Technologies HMI-DM overview 2015-07-02
To indicate the HMI-DM does not login with any user level
To indicate the current user level is End User
To indicate the current user level is Service
To indicate the current user level is OEM Factory
To indicate there are other line(s) hidden above the current page
To indicate there are other line(s) hidden below the current page
•••
To indicate there are characters hidden in this line:
- If a string is longer than the length of the line, “•••” will be
displayed at the end of the line. If this line is highlighted, it will
scroll automatically character by character;
- In a line with more than one strings, if the end part of a string is
covered by the string of next position, “•••” will be displayed at
the end of the string. When this line is highlighted, the first
string with covered text will scroll automatically character by
To indicate a sub-menu exists
3/12
To indicate the total number of lines on this page is “12”, and the
rd
line is currently being selected

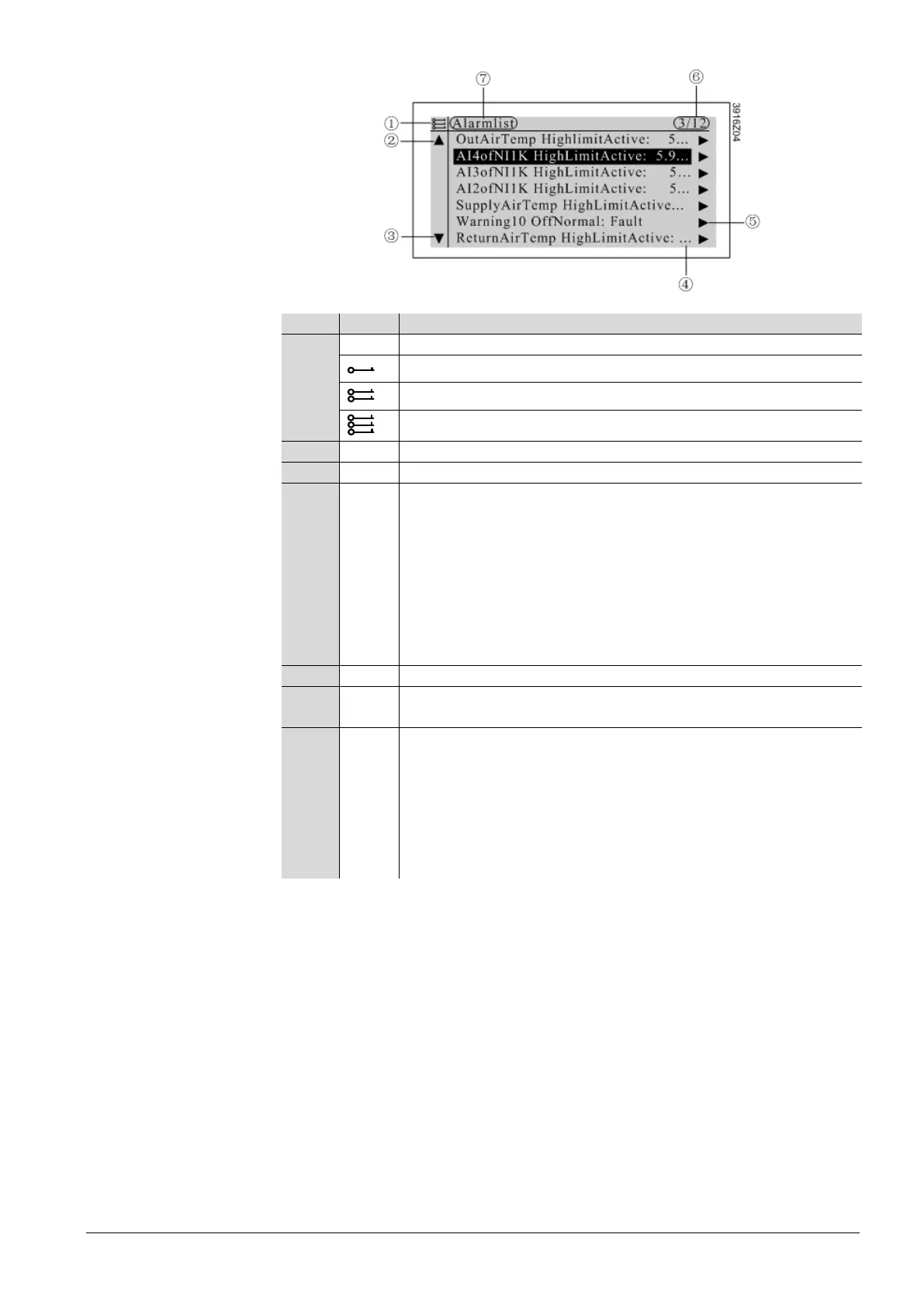

Title
area
The title line, which will never be highlighted, supports all tokens
and has the same characteristics as a normal line in content area.
Application engineer can define the target page on this line, and
when users press key INFO and the current user level has the
privilege to access to this target page, it will redirect to this page.
Regarding how to program a title line, please refer to Climatix
Displaying example on
HMI screen
