31/36
Siemens Climatix HMI-DM CB1P3916en02
Building Technologies Functions and operations 2015-07-02

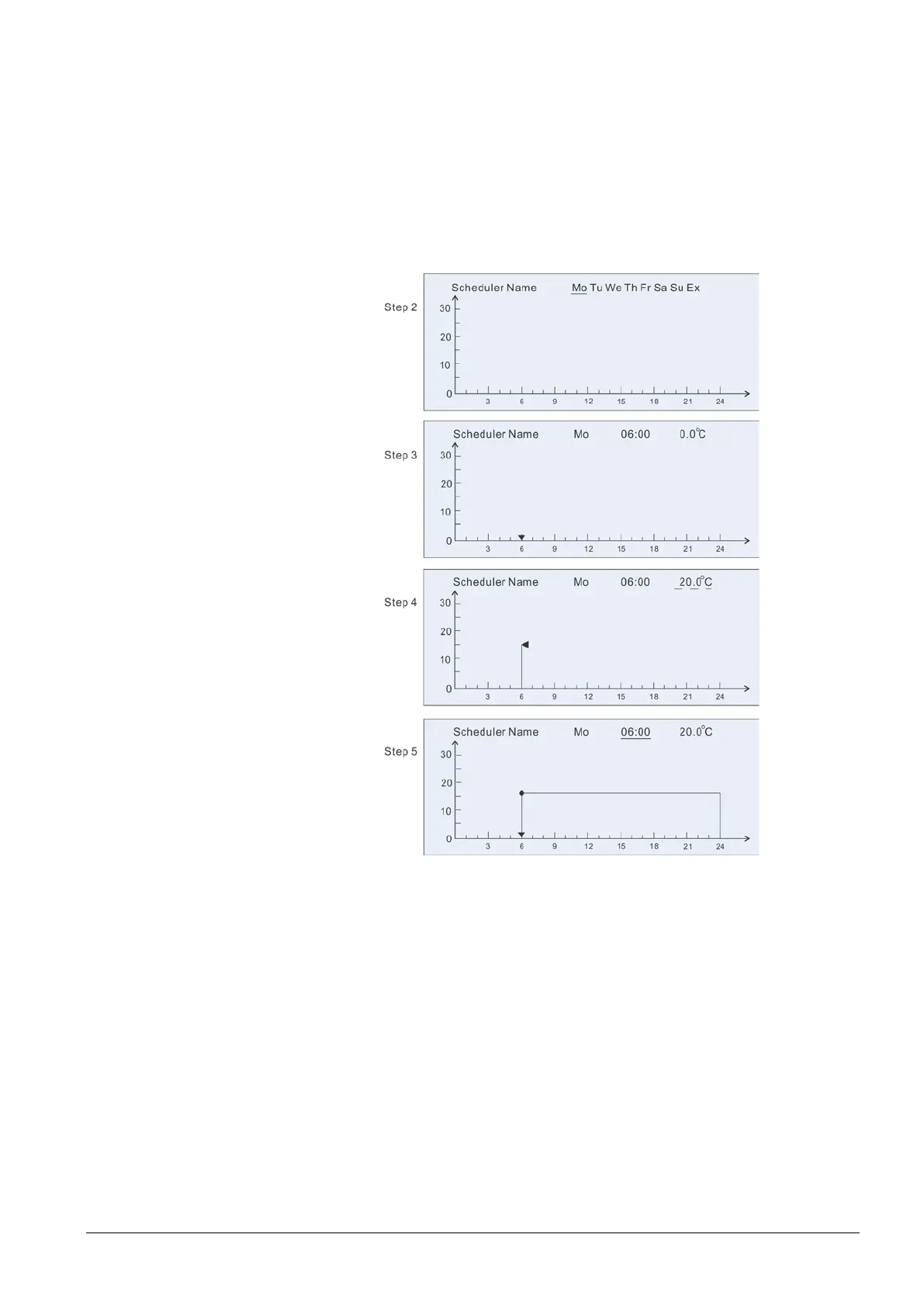

Follow the steps to set the set point scheduler.
1. Enter the Set point Scheduler page.
2. Turn the knob of key ROLL to select the weekday and press key ROLL.
3. Turn the knob of key ROLL to adjust the time point by 15 minutes per each
ROLL, and press key ROLL.
4. Turn the knob of key ROLL to adjust the value on the vertical axis. The
value is displayed on the top line. Press key ROLL.
5. Repeat step 3 through 4 until all scheduler points are set.
