S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
5-3
+RUL]RQWDODQGYHUWLFDOLQVWDOODWLRQ
You can mount an S7-300 either vertically or horizontally. The following ambient air
temperatures are permitted:
• Vertical installation: from 0 °C to 40 °C
• Horizontal installation: from 0 °C to 60 °C.
Always install the CPU and power supply on the left or at the bottom.
SF
BUSF
DC5V
FRCE
RUN
STOP
SIEMENSSIEMENS
SF
BU
SF
DC5V
FRC
E
R
UN
STOP
S
IEM
EN
S
CPU
CPU
PS
PS
1
2
3
3
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM
SM

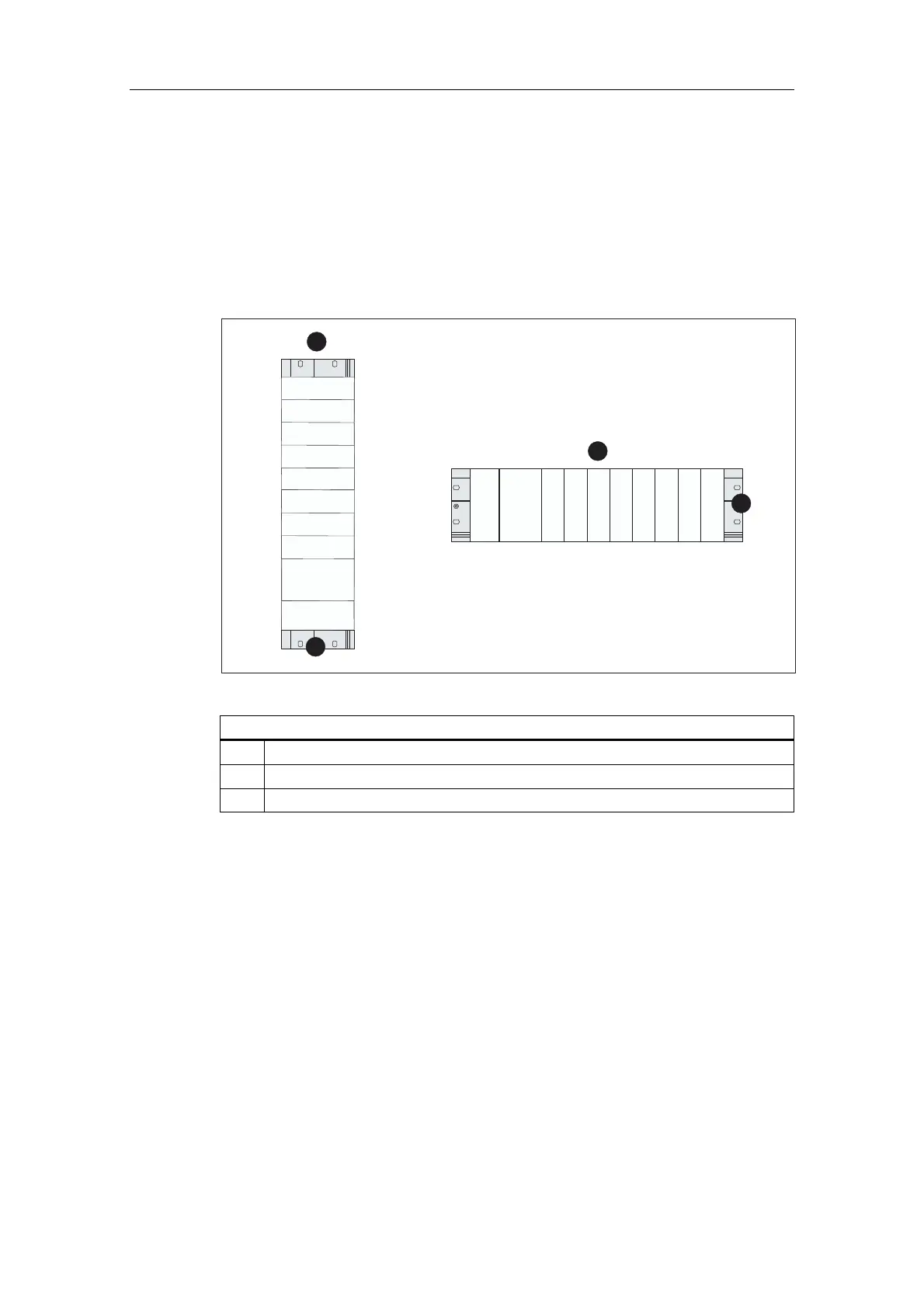

Figure 5-1 Horizontal and vertical installation
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
 Vertical installation of an S7-300
 Horizontal installation of an S7-300
 Rail
)XUWKHULQIRUPDWLRQ
• the selection and dimensions of rails (racks) can be found in Chapter 0RGXOH
GLPHQVLRQV
• connections and interfaces (IMs) are found in Chapter $UUDQJLQJPRGXOHVRQ
PXOWLSOHUDFNV
• the most important rules on S7-300 operation are found in the Appendix
*HQHUDOUXOHVDQGUHJXODWLRQVRQ6RSHUDWLRQ
