&RQILJXULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
5-27
$OO&38VH[FHSW&38[&
The figure below shows you the complete assembly of an S7-300 with TN-S mains
supply (does not apply to CPU 31xC).
Apart from powering the CPU, the PS 307 also supplies the load current for the
24 VDC modules.
Note: The arrangement displayed does not correspond with the physical
arrangement; it was merely selected to give you a clear overview.
Cabinet
Rail
PS
CPU
SM
Signal modules
L1
N
L+
M
µP
AC
AC
AC
AC
DC
DC
L1
M
L2
L3
N
PE
AC 24 to 230 V load circuit for AC modules
DC 5 to 60 V load circuit for
non-isolated DC modules
DC 5 to 60 V load circuit for
isolated DC modules
Low-voltage distribution
e. g. TN-S system (3 x 400 V)
Ground bus in cabinet
1
2
2
2
3
4
5

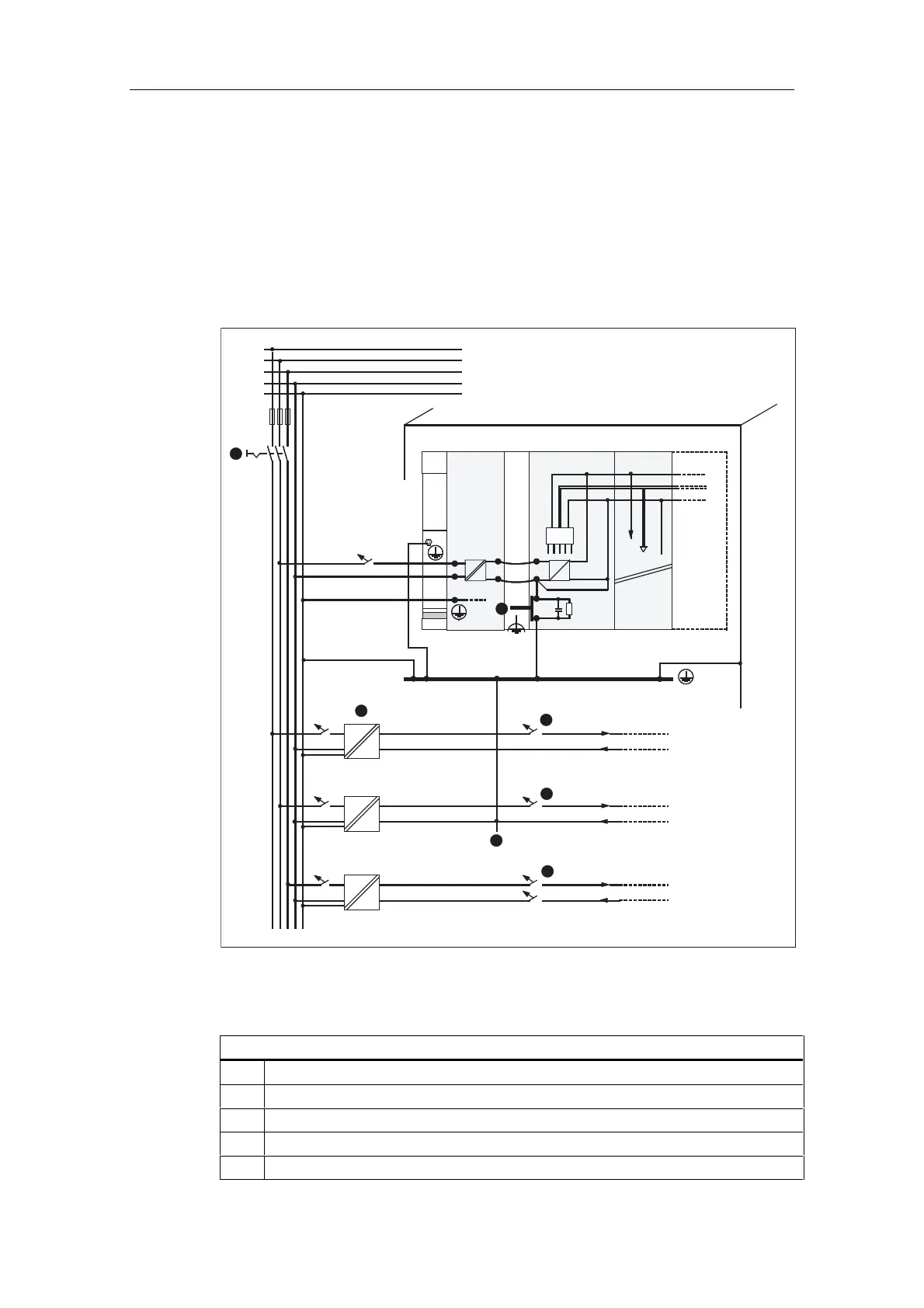

Figure 5-12 Grounding concept for the S7-300 (excluding CPU 31xC)
Table 5-11 Connection of the load voltage reference potential
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
Main switch
Short-circuit/overload protection
Load power supply (galvanic isolation)
Disconnectable connection to protective conductor in order to localize ground faults
Grounding slide contact of the CPU (not CPU 31xC)
