([DPSOH7HUPLQDWLQJUHVLVWRULQWKH03,VXEQHW
The figure below shows you an example of an MPI subnet and where to install the
terminating resistor.
The figure below illustrates where the terminating resistors must be connected in
an MPI subnet. In this example, the programming device is connected via a stub
cable during commissioning or maintenance only.
OP 27
PG
PG
RS 485-
Repeater
1
CPU
PS
ET 200 M
S7-300
CPU
PS
CPU
CPU
PS
ET 200 M
S7-300
CPU
PS
CPU
CPU
PS
ET 200 M
S7-300
CPU
PS
CPU
OP 27
CPU
PS
ET 200 M
S7-300
CPU
PS
CPU
1
1
2
1

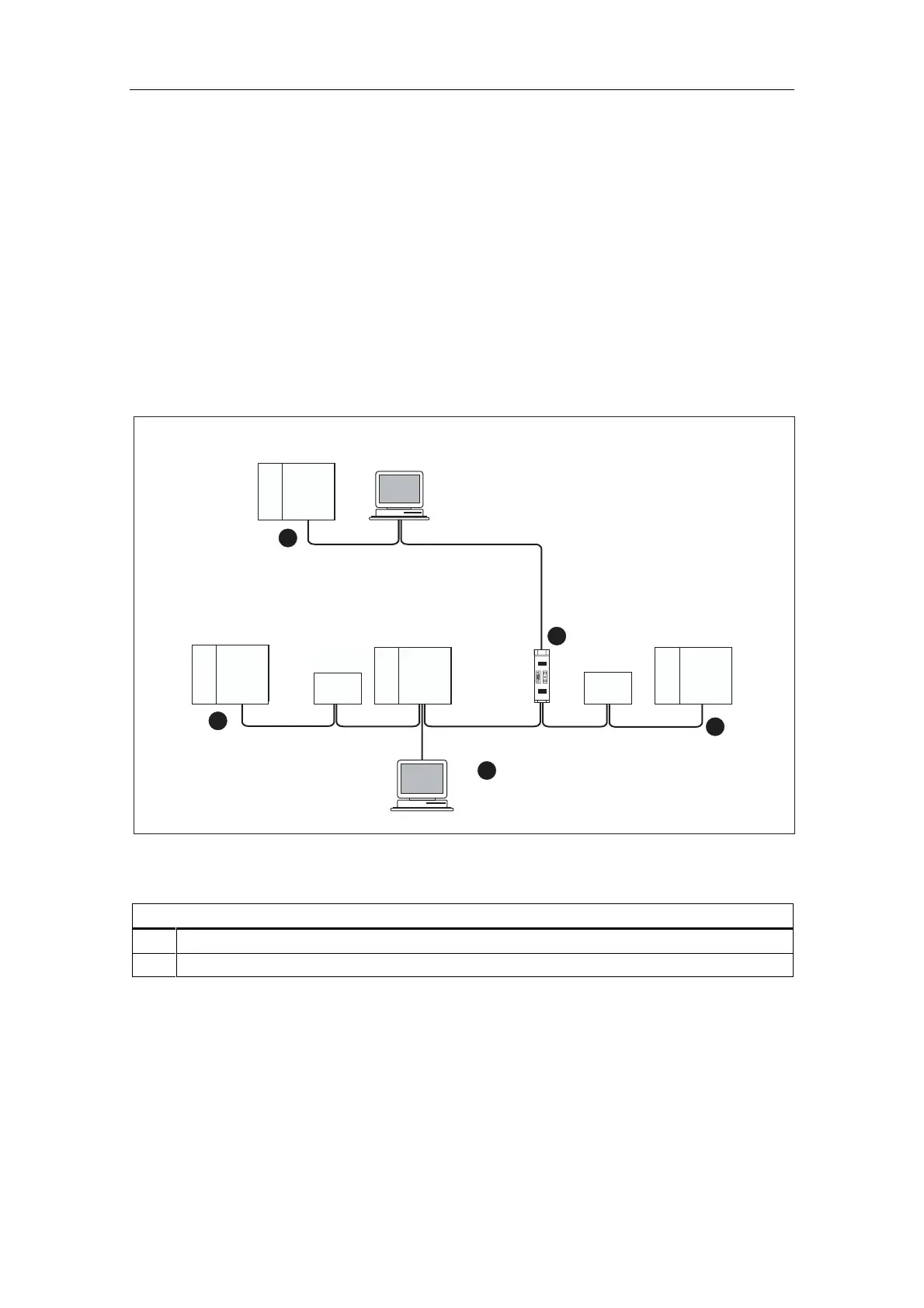

Installing Figure 5-19 the terminating resistors in an MPI subnet
.H\WRQXPEHUVLQWKHILJXUH
 Terminating resistor inserted
 PG connected by means of a stub cable for maintenance purposes
