Service and maintenance
5.3 Replacing a fan
Power Module PM240-2
Hardware Installation Manual, 01/2020, A5E33294624B AL
71
5.3.2 Fan replacement FSD … FSF
The fan module is installed at the top.
Procedure

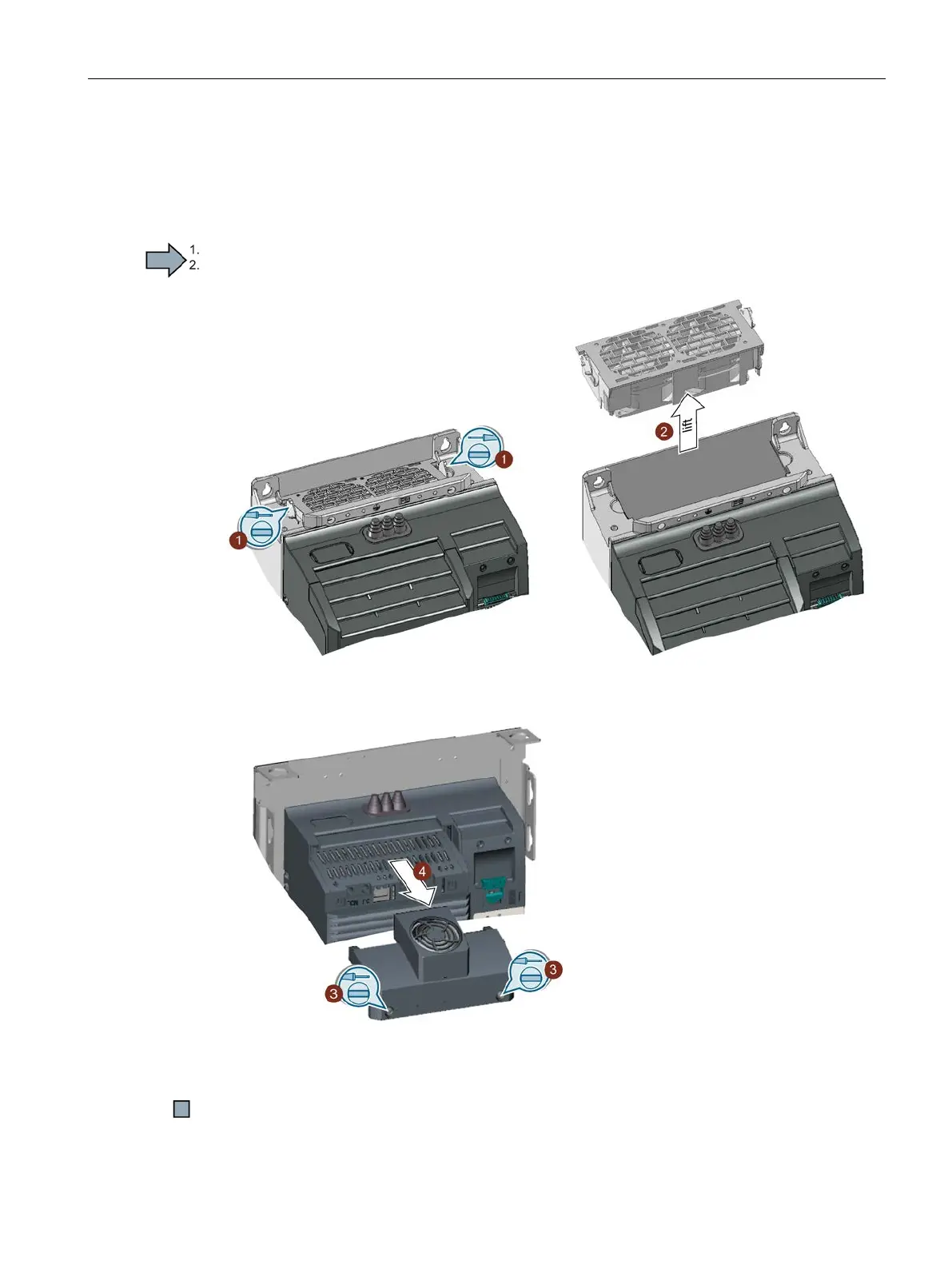

1. Remove the fan module from the Power Module in steps ① and ② as shown in the
diagram. Use a screwdriver if necessary.
2. Additionally for PT devices:
Remove the interior fan as shown below.
3. Install the new fan module in inverse sequence.
By inserting the fan module, you establish the electrical connection between the
converter and fan module.
You have replaced the fan module.
