2. The module firmware version for upload of module firmware or FPGA image via Ethernet is V04.08 or
higher. The file format has to be a PCK file (name extension .pck).
3. A downgrade of a version V04.08 or newer to a version <V04.08 can be done by the firmware update via
front port only (
Setup_<Device-type>_IEC61850_81_<Version>.EXE). Once the FPGA update is ready the module can not be
downgraded to operation without PRP.
4.2.2 Firmware update
4.2.2.1 Upload and flashing of the module firmware
1. Connect all devices with the EN100 module via Ethernet (Fig. 4-1)
2. Store the file IEC61850_81_xx.yy.pck e.g. IEC61850_81_04.10.00.pck (includes the new EN100
firmware) in a local folder on your PC/notebook.
3. Give your Service PC a free IP - address in the sub network where the devices are installed. Please be
sure that no IP - address already used by devices or other components in this network will be used by your
Service PC.
If you update the module firmware of a single device the IP address don’t need to be set before. The
EN100 default IP address is 192.168.0.55.
4. Connect the Notebook / PC with one of the Ethernet switches used in the system.
5. Start Netview to browse through all the connected devices of the SCD file.
Select the device you want to update with a mouse single click on the IED hyperlink

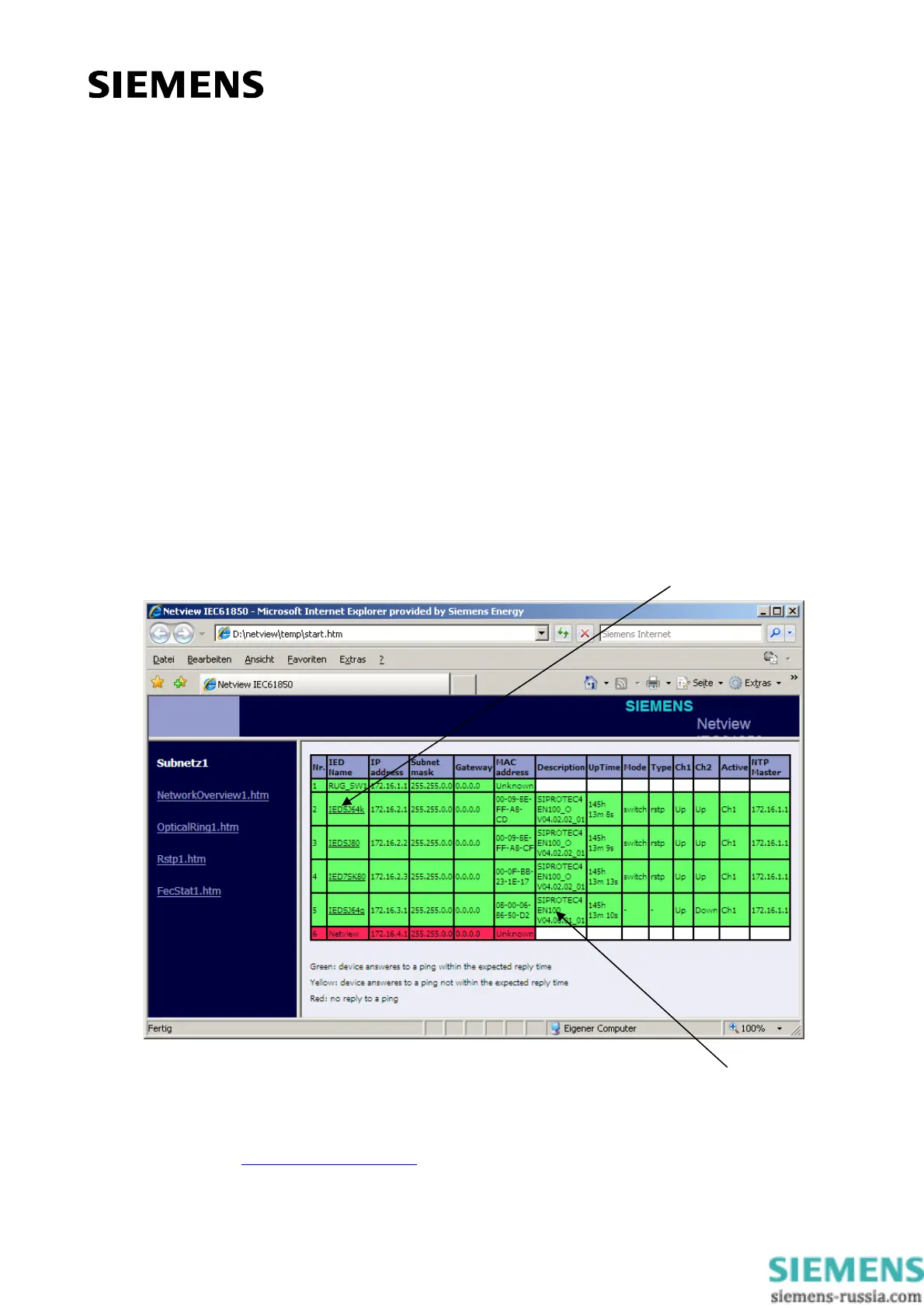

Figure 4-2 - Netview in operation. Overview of all SIPROTEC 4 devices in the network
Note:
Within the Netview generated webpage you can see additionally in the Description section the installed
firmware version of the devices.
Alternatively you can also connect directly to the module homepage of a device by using the IP - address
of the device (http://<IP-address>/home
). In this case Netview is not required and the update is done direct
over the module homepage.
SCF 11/2008 V08.10 Page 9 of 29
