3 Operation
3.1 Front view
LED colours :
LED 1, 2, 3: yellow
LED OK: green
other LEDs: red
g
In the upper display line, the process
value is always
displayed. At parameter, configuration, calibration as well as
extended operating level, the bottom display line changes cyclically between
parameter name and parameter value.
g
LED REM - 6 displays the remote/local mode. In mode remote this LED lights
and value changes via front keys are locked.
Operation

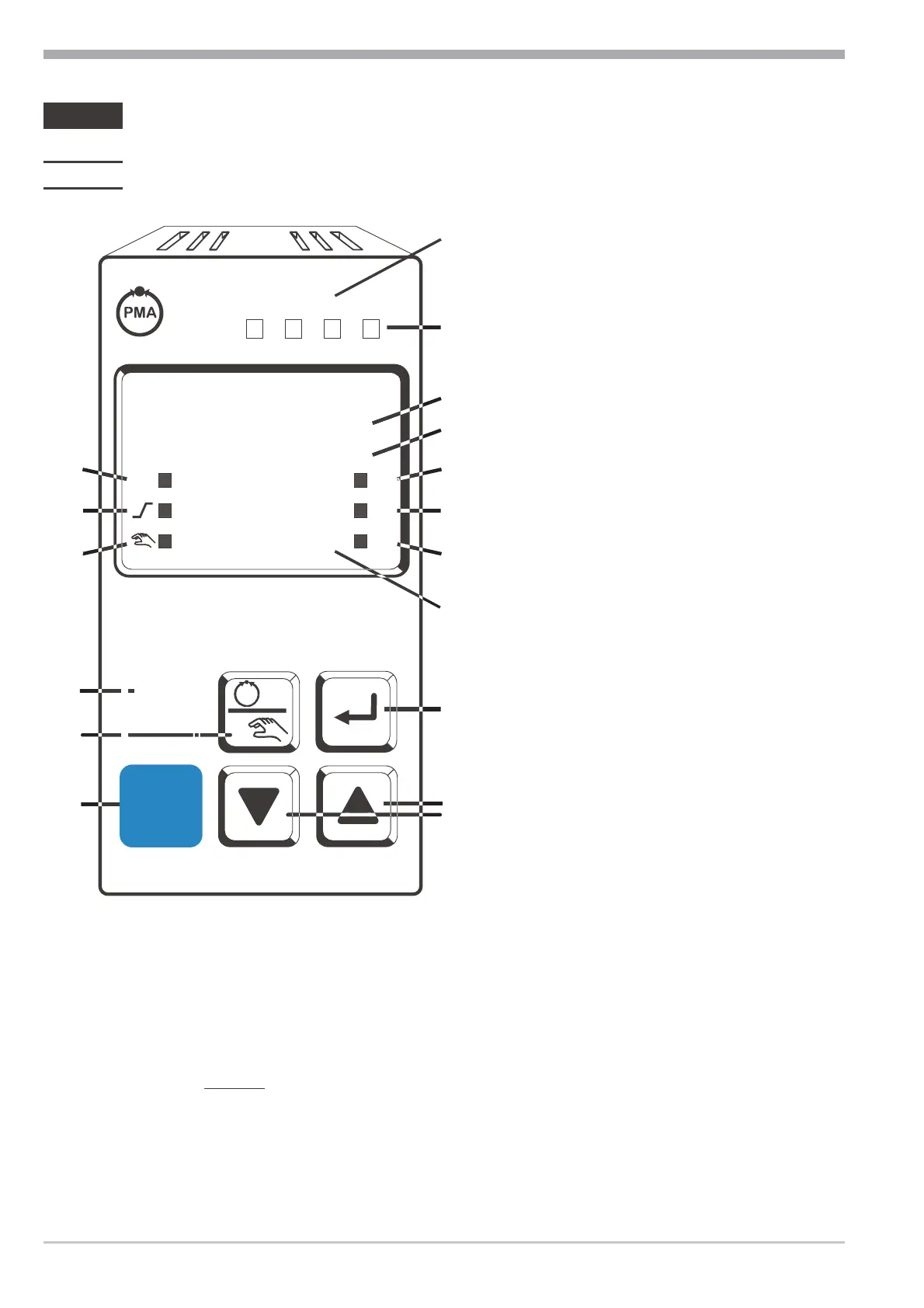

Front view 6 Operating note KS 50-1 TCont
1 Status of switching outputs
OuT.1... 6
2 Lights with limit value 1
(PArA / Lim) not exceeded
3 Process value display
4 Set-point, controller output
5 Signals ConF and PArA level
6 Device in remote mode
7 Self-tuning active
8 Entry in error list
9 Set-point SP.2 or SP.E is
effective
0 Set-point gradient is effective
! Manual/automatic switch-over:
Off: Automatic
On: Manual
(changing possible)
Blinks: Manual
(changing not possible)
(r ConF/ Cntr/ MAn))
" Enter key:
calls up extended
operating level / error list
§ Up/ Down keys:
changing the set-point or the
controller output value
$ Manual mode /spec. function
(→ ConF / LOGI)
% PC connection for
BlueControl (engineering
tool
& Remote/local-switch /
spec. function
(→ ConF / LOGI)
KS 50-1 TCont
180
178.
SP.x
Rem
Err
Ada
123OK
3
m
%
1
2
3
4
0
5
!
6
"
7
8
§
9
$
9
!
%
§
è
è
è
&

Siemens Expert Series Specifications

General

Control Mode	PID
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Analog
Supply Voltage	100-240 VAC, 24 VAC/VDC
Display	LED
Communication	RS485
