4 Structure and function
This chapter describes the setup and function of the fire detection control unit. It
provides the reader with an overview of the possibilities offered by the fire detec-
tion control unit. An exact description of the different procedures is included in the
sections 'Operation' and 'Maintenance'.
4.1 Indicators and operating modules

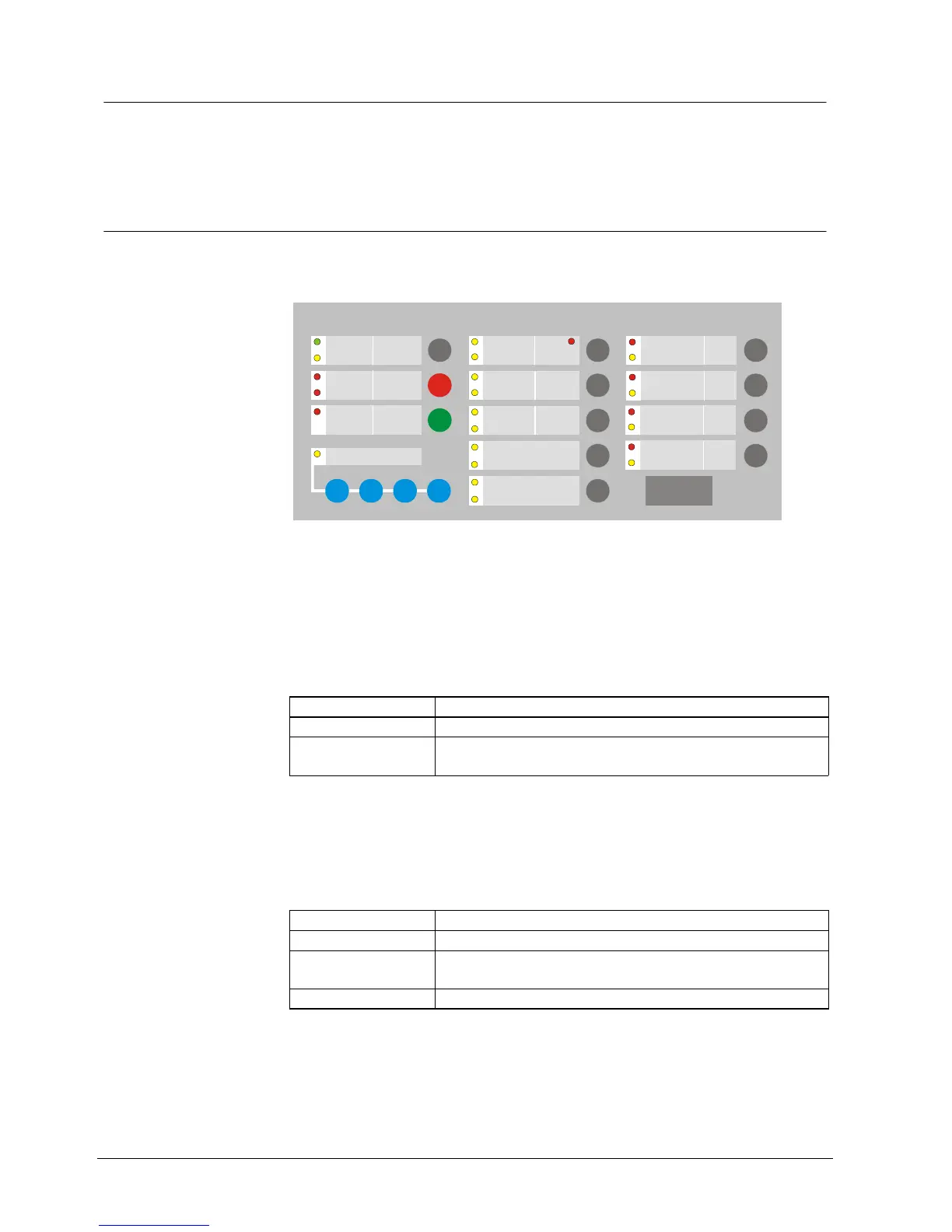

The figure below shows the indicators and operating modules. Depending on the
type (number of zones), your control units comprises more or fewer zone keys. The
function of the zone keys is the same with all control unit types.
1234
9 9 9 9
General LEDs
General keys
Zone keys
Zone LEDs
Numerical keys
Indicator module
General keys
General LEDs
Fig. 2 Indicators and operating modules
The operating panel comprises the following elements:
Light emitting diodes (LED)
Keys
Indicator modules (on option)
Key switch (on option)
LED
Designation Function
General LEDs Indicate the status of the entire system.
Zone LEDs Indicate the status of the individual zones. One red and one
yellow LED is allocated to each zone.
Tab. 2 Function of the LEDs
General:
red LED = alarm
yellow LED = fault, or a part of the system is switched off
Keys
Designation Function
General keys General entries, e.g. Acknowledge
Zone keys Allocate selected functions to the zone; one key is allocated to
each zone
Numeric keys Entry of numeric values
Tab. 3 Function of the keys
