Siemens FC700A System Planning

Bus systems
14
Siemens Building Technologies 007836_a_en_--.doc
Fire & Security Products 03.2004
6 Bus systems

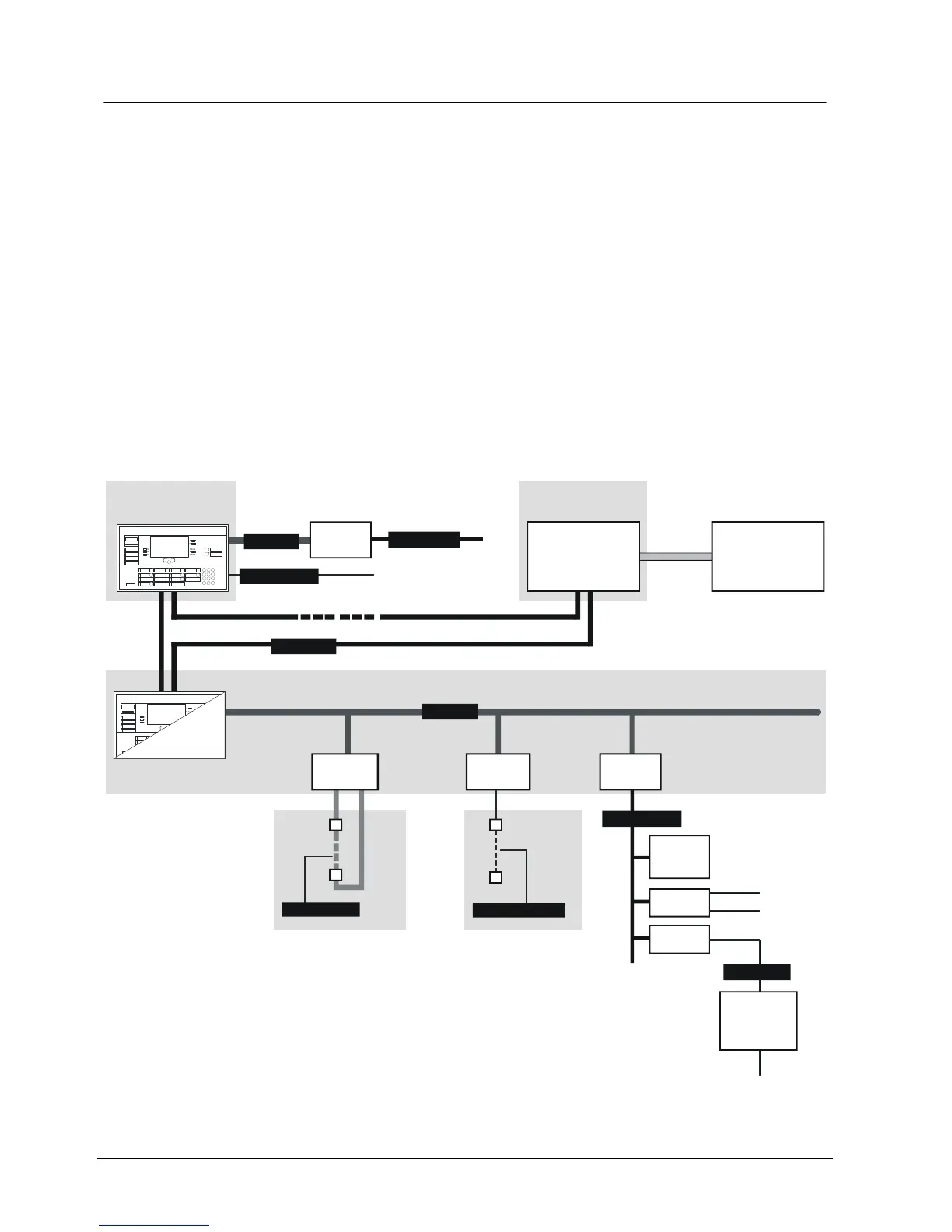

In the FC700A fire detection system there are 5 communication levels:
I-Bus
 Internal data bus between individual modules in the control unit (line modules,
control modules etc.)
C-Bus
 Local data bus between control unit(s), control terminal(s) and Gateway(s)
SynoLOOP and SynoLINE600
 Local detector bus; connects the detectors to the control unit
LON-Bus
 Local data bus for floor repeater panels, mimic display converter and LON I/O
card
Data Bus
 Local data bus for parallel indicator panel, synoptic panel or relay
K3I050
Gateway
FG700A
E3M111
SynoLOOP
E3M080
SynoLINE600
I-Bus
Control unit FC700A
Line modules
Control terminal
FT700A
E3H020
Building
management
system
ISO1745 Protocol
C-Bus
B3Q580/
B3Q590/
B3Q595
E3I040
LON-Bus
Databus
B3R051
or
K3R072/
K3G060
RS232
K3I110
In-/Outputs
E3I040
I-Bus
LON-Bus
CPU
B3Q700
Databus
