Siemens FC700A System Planning

Control modules
41
Siemens Building Technologies 007836_a_en_--.doc
Fire & Security Products 03.2004

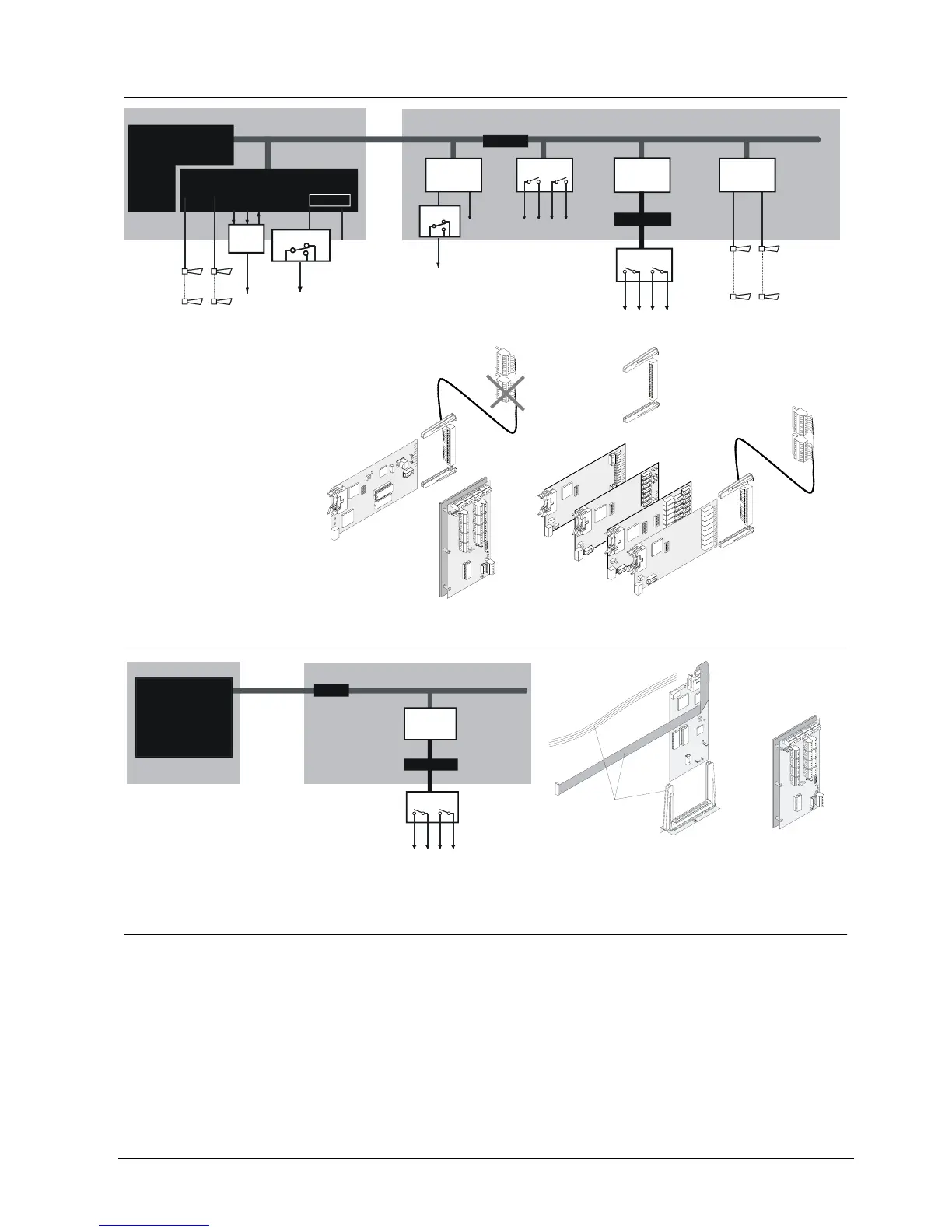

17.3 Control outputs station type FC700A
E3G070
B3Q700
Z3B171
1...............7
250VAC/10A
Driver
FÜ
24V
1..........16
E3L020
Z3B171
E3G050
1..........8 1..........6
E3G060
30VDC/1A
Driver Driver
max. 24V/2A
(max. 4A/E3G060
)
I-Bus
Basic equipment
A
dditional control modules according to application
CPU
E3I040
Converter
I-Bus/LON
LON-Bus
K3I110
1......16
Fire control
installations
250VAC/10A
30
VD
C/
1
A
Up to 2 Z3I1050 (with additional
terminal block) can be used other-
wise Z1K030 must be used.
E3G050
E3L020
Z3I1050
E3G060
E3G070
E3I040
Z3I1050
K3I110
Z1K030
17.4 Control outputs remote station type FT700A
B3Q700
I-Bus
E3I040
converter
I-Bus/LON
LON-Bus
K3I110
30VDC/1A
1......16
K3I110
E3I040
Z1B070
 Details mounting E3I040 see document 007827
17.5 Modules
Component Order-No. Description Notes
E3G070 546661 Control module 'Universal' Included in FC700A-1 package
E3L020 546645 Control module 'Driver' 16 control inputs or outputs
E3G050 460255 Control module 'Contacts' 8 control output contacts
E3G060 542539 Control module 'Monitored' 6 monitored control lines for alarm equipment
K3I110 528812 LON-I/O card 16 programmable in-/outputs
Z3B171 484383 Relay module 1x 250VAC/10A To switch from external voltage
E3I040 499310 LON module Converter between I-Bus and LON-Bus
Z1B070 A5Q00001720 Mounting accessory for E3I040 Essential for mounting E3I040 in housing H28G200
Z3I1050 A5Q00004717 Connection cable 19 conductors 1 of each per E3L020/E3G050/60
Z1K030 484231 Terminal block with p.c.b. Chassis For direct connection
