Siemens FC700A System Planning

Control unit FC700A
25
Siemens Building Technologies 007836_a_en_--.doc
Fire & Security Products 03.2004

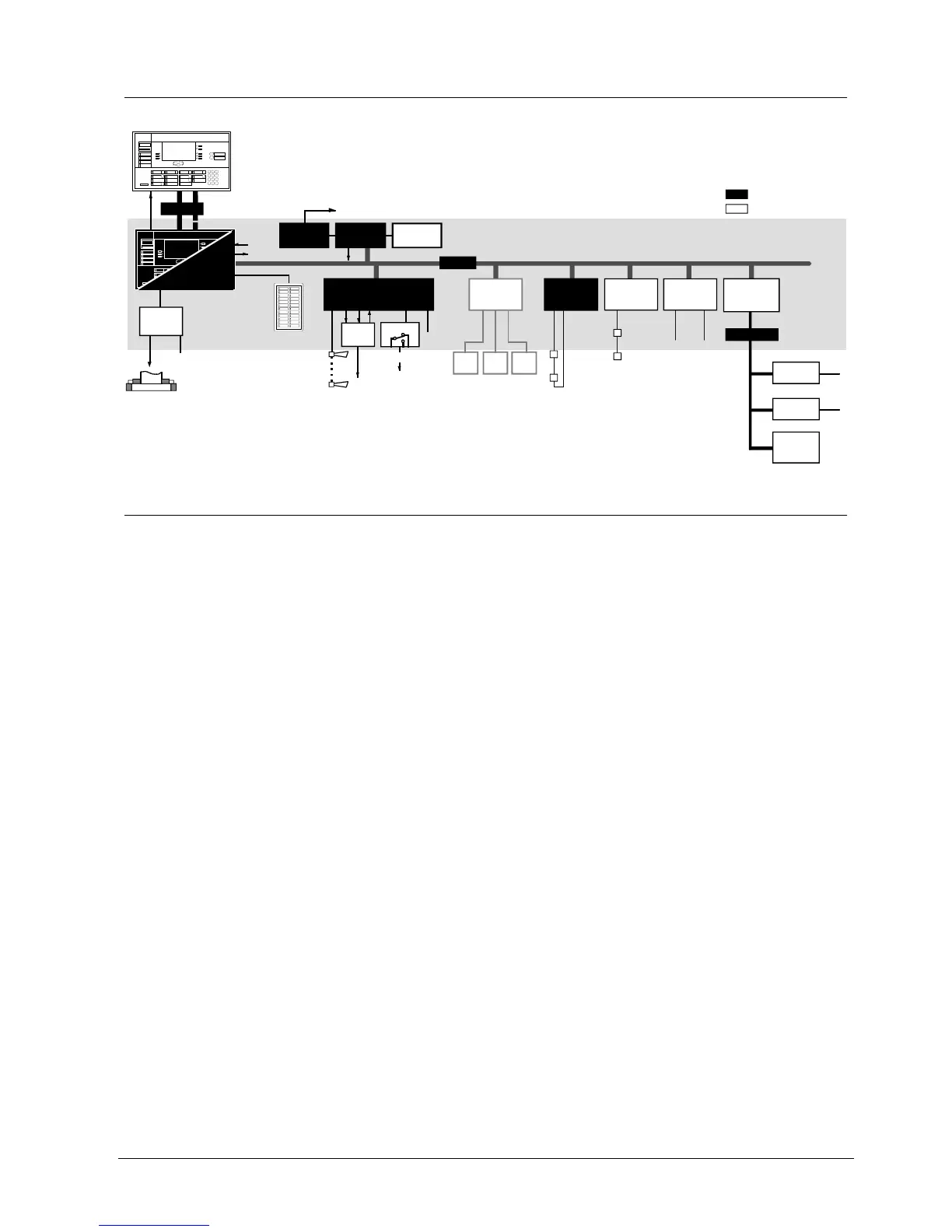

10.2 Block diagram
Mains
B3Q700 ‘FT’
(additional operating facilities)
Basic equipment
Option
B2F020
AX12..
I-Bus
FSK
E3L030
1..2
E3G070
Z3B171
1........7
FC700A
E3G...
E3L...
E3M111
B3R051
C-Bus
24V
E3C011
5V
24V
24V
Batteries
RT
24V
Fire control
installation
VdS peripheral
equipment
B3Q700
‘FC’
1
2
E3I020
RS232
RT = Remote transmission
Printer
LON synoptic converter
LON I/O card
Floor repeater terminal
LON-Bus
K3I050
B3Q580/
B3Q59x
E3I040
K3I110
250VDC / 10A
SynoLOOP
E3M080
1..........4 1.............8
SynoLINE600
FBF HM
10.3 Modules
Component Order-No. Description Notes
Control unit
FC700A-1 A5Q00004734 Control unit pre-assembled Including B3Q700, H23B010, B2F020, E3C011,
Z3I470, E3G070, Z3I380, 2x Z3I1050, 1x Z3I1060
pre-wired
Control terminal, Parallel indicator panel
B3Q700 A5Q00004719 Control terminal
B3R051 490513 Parallel indicator panel
Details see chapter 12
LON-Bus devices
E3I040 499310 LON interface
K3I050 496766 LON/Mimic Display converter
K3I110 528854 LON I/O card
B3Q580 496177 Floor repeater panel
B3Q590 496180 Floor repeater panel with control functions
B3Q595 534110 Floor repeater panel with control functions
Details see chapter 18
Line modules
E3M111 511531 Line module SynoLOOP
E3M080 460268 Line module SynoLINE600/-Ex
Details see chapter 15
Control modules
E3G050 460255 Control module 'Contacts'
E3G060 542539 Control module 'monitored'
E3G070 546661 Control module 'universal'
E3L020 546645 Control module 'Driver'
Z3B171 484383 Relay module
Details see chapter 17
Interfaces
E3H020 460475 Gateway module Details see chapter 19
E3I020 460239 RS232 module Details see chapter 12 and 21
E3L030 475994 Control module VdS
Power supply
AX1201 225487 Battery 12V/27Ah
AX1210 475570 Battery 12V/15Ah
Accessories
Z3I1060 A5Q00004722 Terminal block, 2x20 terminals in two levels For additional modules
Z3I1050 A5Q00004717 Connection cable 19 conductors For connection via terminal 'X2'
Z1K030 484231 Terminal block with p.c.b. Chassis To direct connection
Z3I380 475567 Cable set I-Bus long To connect modules at the bottom with modules
at the top
