Periphery board (250p) FCI2016
1
7 |
Building Technologies
1.2 Installation
The chapter describes how to install periphery board (250p) FCI2016 in the fire control
panel and the voice alarm fire control panel.

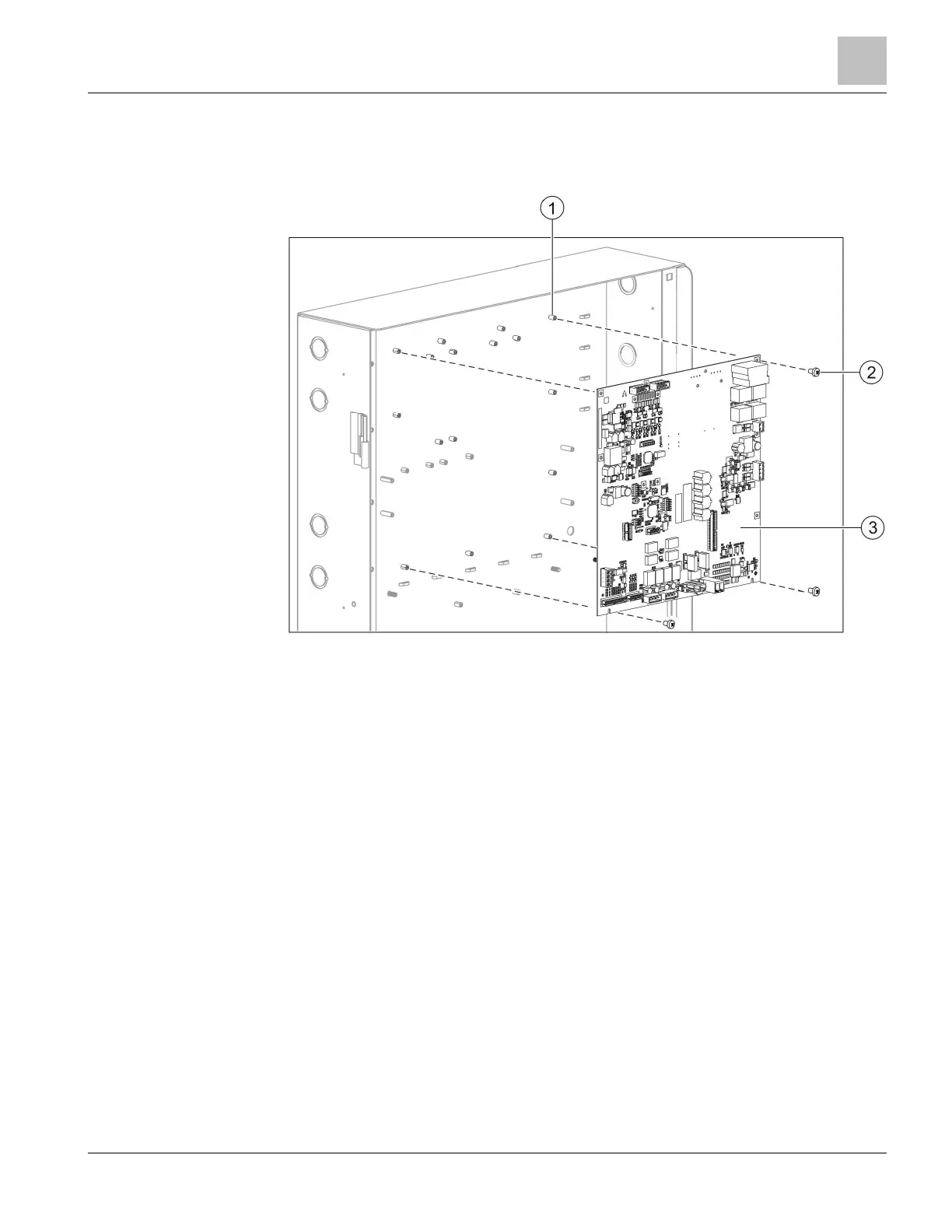

Figure 1: Installing the periphery board (250p)
1 Threaded standoffs on back box
2 12x fixing screw
3 Periphery board (250p)
w The back box is installed.
w The openings for passing through cables have been broken out.
w The power cable is fed through and is disconnected from the power supply.
w The batteries are not installed or connected.
1. Install the periphery board (500p) (3) on the threaded sleeves (1) of the back box
with the 12 fixing screws (2).
2. Wire the periphery board (250p) according to the pin assignments in the following
chapters.
3. Set the jumpers.
4. Re-install any modules that you may have had to remove.
