3.2.2 Internal indicator
When the housing cover [➙ 46] is open, the internal indicator is accessible. The
internal indicator performs the following functions:
 Status display for airflow, smoke value, and alarm using 3 LEDs
 Activate or stop normalization of the airflow using a button
 Activate or stop normalization of the smoke value using a button
 Reset self-retaining status displays and relay outputs using a button

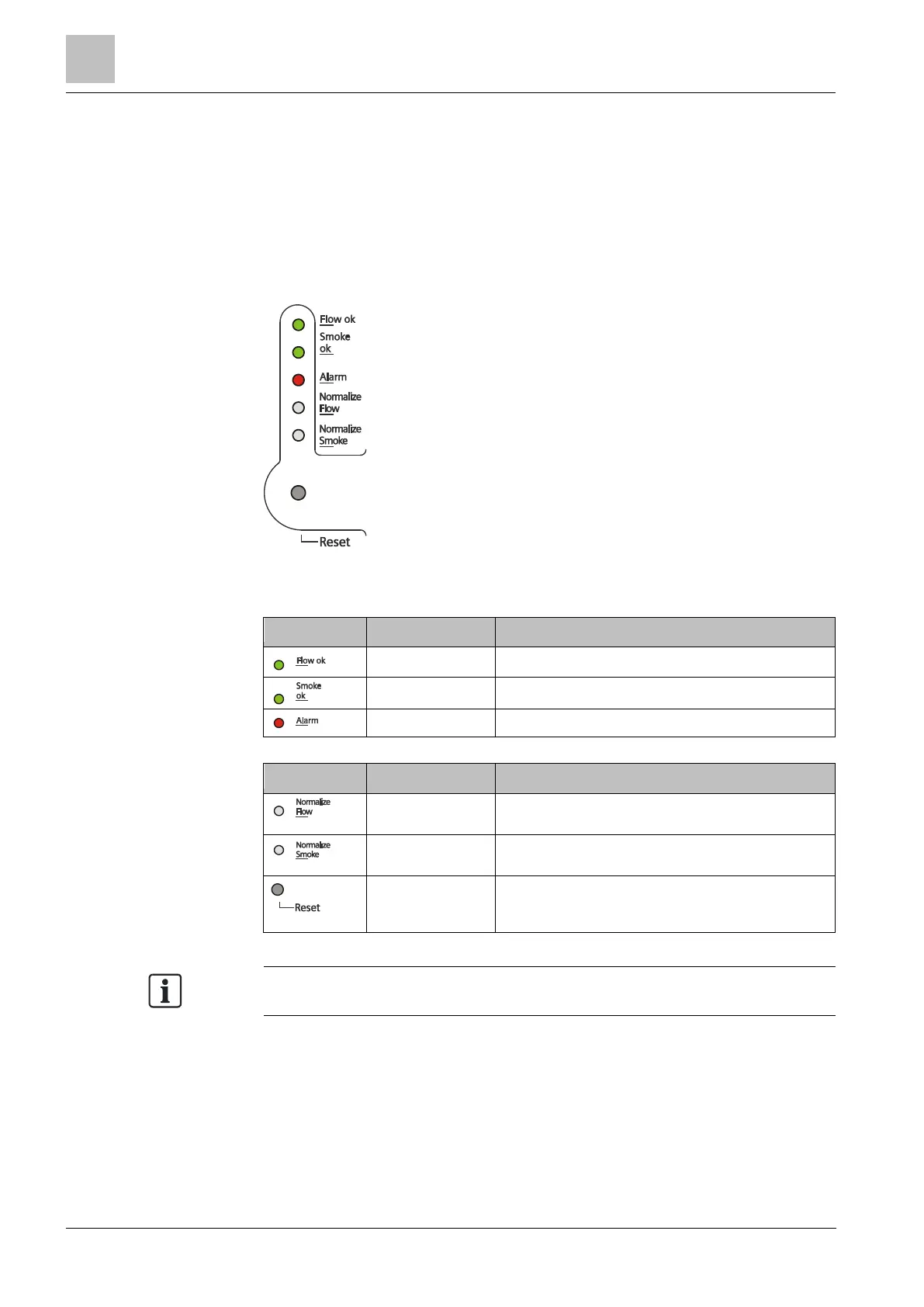

Internal indicator
Indication
Designation
Function
Flow ok The green LED flashes when the airflow is normal.
Smoke ok The green LED flashes when the smoke value is low.
Alarm The red LED flashes during an alarm.
Button
Designation
Function
Normalize Flow Button for activating or stopping normalization of the
airflow.
Normalize Smoke Button for activating or stopping normalization of the
smoke value.
Reset Button for resetting the self-retaining status displays
and relay outputs. The current detector status is
reset.
The 'Normalize Flow' and 'Normalize Smoke' buttons can only be actuated using
a suitable, thin tool, e.g. a pen or a paper clip.
