1-16 DESCRIPTION
FIREFINDER-XLS INSTALLATION, OPERATION AND MAINTENANCE MANUAL | CHAPTER 1

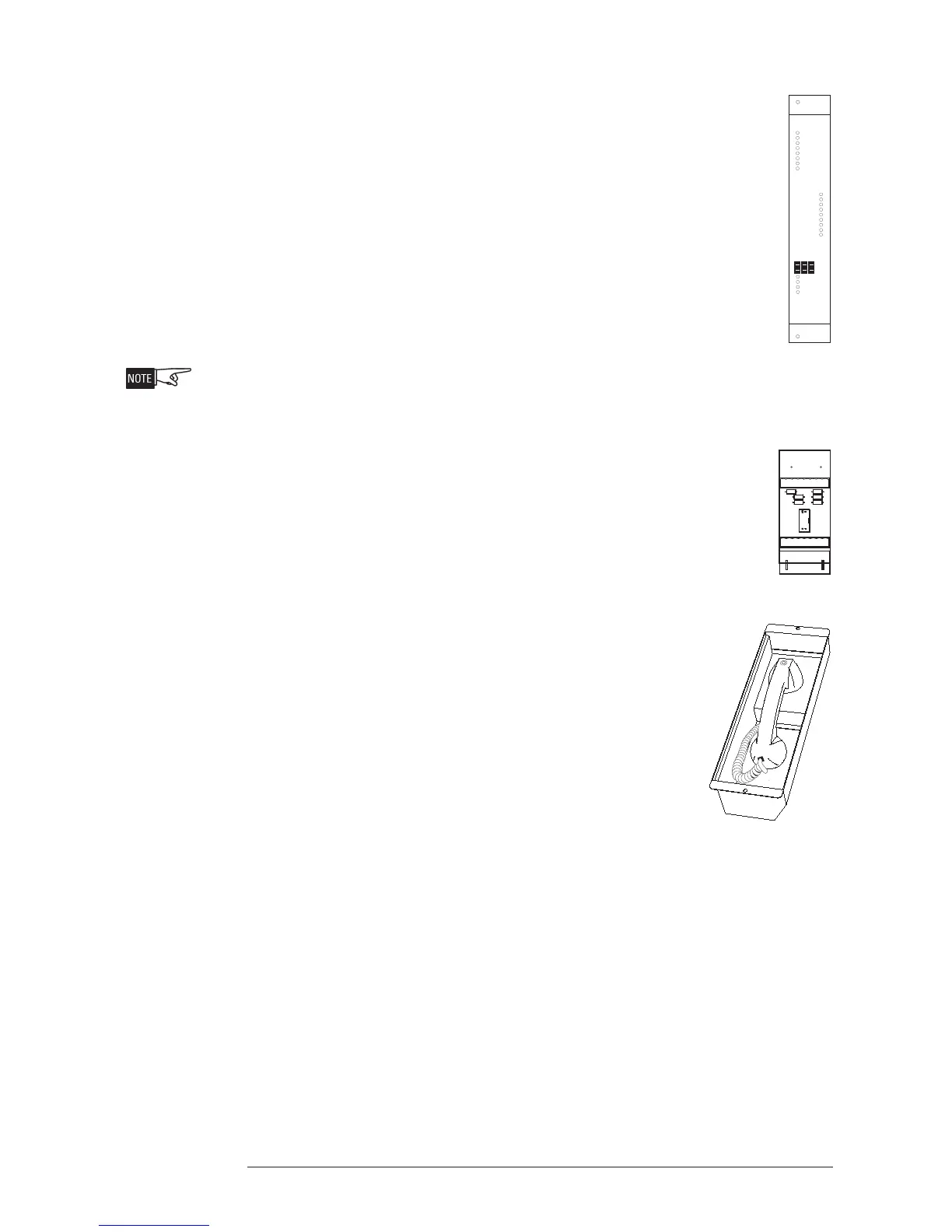

DAC-NET (D-NET) The DAC-NET is the CAN-BUS master for all CAN modules. One
DAC-NET is required in each enclosure. It is the source point for eight
digital audio channels and communicates audio data via the ASI-BUS to
all digital audio cards. It communicates all instructions and messages
directly with the PMI/PMI-2/PMI-3.
The DAC-NET contains an optional LPB (Local Page Interface Board)
which has to be mounted piggyback. This CAN module with a fixed CAN
address provides the microphone input from the LVM, the telephone riser
input from the FMT, and an output for the monitor speaker on the LVM. It
provides network communication (D-NET) between enclosures (nodes).
The network can be wired either Style 4 or Style 7. Each DAC-NET
occupies one D-NET address.
In Canada, ULC S524 requires that all interconnecting data communications links for
networks be wired DCLC (style 7) except for dedicated network communication
annunciators.
The DAC-NET contains various on-board tones and audio messages.
FMT-A-ADPT Class A The FMT-A-ADPT provides the FMT with Class A riser capability. The
Riser Module telephone riser is supervised by the primary FMT.
FMT Firemans Master The FMT Firemans Master Telephone provides first responders with
Telephone an emergency telephone system for communication with remote
locations. The FMT is located in the main FireFinder-XLS enclosure
and includes a handset for the operator of the telephone system.
FMT-A-ADPT
J1
J2
J3
J4
E6
E3
E7
E2
E4
E5
16
9
16
9
1
12345678
TRBL
MAIN IN
RETURN OUT
MAIN OUT
RETURN IN
GND FAULT
TRBL
GND FAULT
ADDRESS
DAC - NET
DNET
RESET
POWER
CARD FAIL
CAN FAIL
ASI FAIL
CPC -DAC FAIL
ALARM
EXT ALARM TRBL
LPB
RESET
POWER
CARD FAIL
CAN FAIL
ASI FAIL
MIC ACT
MIC TRBL
PHONE ACT
SPEAK ACT
+
-
1
+
-
2
+
-
3
