GCNET and Galactic Voice 6-3
CHAPTER 6 | FIREFINDER-XLS INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Standalone Voice
XLS System
Ethernet
Hnet
Xnet
Site-Wide
Fiber Backbone
Single Mode
Or
Multi-Mode
Via Siemens Scalence switch
CAN
DNet
Building
Global Voice
XLS System
Building
Fire-Only
XLS System
Building
Standalone FCC
VNT
Standalone FCC
Galactic
Voice
Station
Galactic
Management
Station
(NCC)
Audio
VNT
Galactic
Voice
Station
VNT
VNT
VNT
Global
Voice
Station
Global
Voice
Station
Local Voice
Station

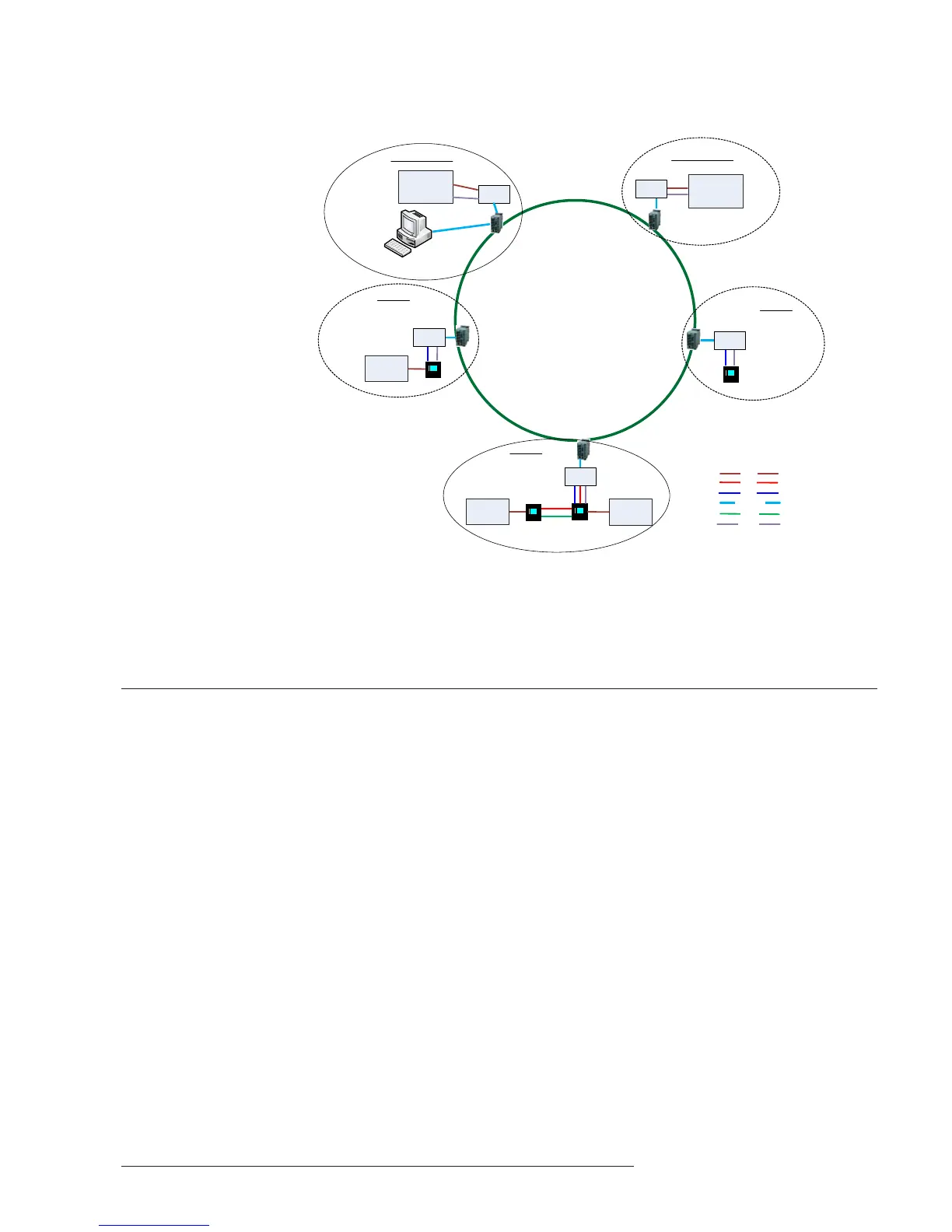

Figure 6-2
GCNET Network Overview
SYSTEM OPERATION
System Event Indication All Voice system faults are reported at the PMI/PMI-2/PMI-3, and at the programmed
speaker group control switch. The operator at the PMI/PMI-2/PMI-3 is able to ACK,
SILENCE/UNSILENCE, and RESET voice system events. For example, in the event of
an ALL EVAC, the Audibles LED on the PMI/PMI-2/PMI-3 comes on and the Silence
Audibles soft key displays on the PMI/PMI-2/PMI-3, so the system can be silenced
from the Global PMI/PMI-2/PMI-3.
FCC Trouble Sounder An “FCC Trouble Sounder” may be configured on the FCC. The Trouble Sounder
annunciates, via a Flashing Yellow LED, the existence of any trouble or fault with the
FCC with the FCC hardware, or of any functionality provided by the FCC. When it is
on, an audible sounder is repeated with a nine second Off and one second On cycle.
When active, the Trouble Sounder may be silenced by pressing the button. Once
pressed, the LED changes to Solid Yellow and the sounder is deactivated. Silencing
the Trouble Sounder does not Acknowledge the corresponding trouble events on the
event displays.
A silenced Trouble Sounder will be reactivated after 24 hours if trouble conditions
remain.
