3-2 OPERATION
FIREFINDER-XLS INSTALLATION, OPERATION AND MAINTENANCE MANUAL | CHAPTER 3
?
ESC
+
More
Info
MENU
CPU FAIL
PARTIAL
SYSTEM
DISABLED
SILENCED
ON
AUDIBLES
TROUBLE
SUPERVISORY
ALARM
POWER
1
3
Menu
Scroll UP through
the list of events
When lit, provides
more information on
the highlighted event
Go back to previous screen
Scroll DOWN through
the list of events
Context sensitive help
MNS1
000
FIRE ALARM LIST
Device custom message
10:53
!
Device custom message
Event Category
Event Category
11:00
(Currently not used)
Device custom message
10:57
(Currently not used)
Device custom message
Event Category
11:03
(Currently not used)
Device custom message
Event Category
Acknowledge
Alarms
Silence
Audibles
Unsilence
Audibles
Res et
System
11: 0 6
(Currently not used)
(Currently not used)
4
2
7
Move to the right-most tab
ove to the left-most tab
Move one tab right
Move one tab left
Node X in Control
ALM
001
MNS2
000
EMG
001
MNST
000
OTH
000
BIDG
000
SUP
001
TBL
001
-
5
6
8
2

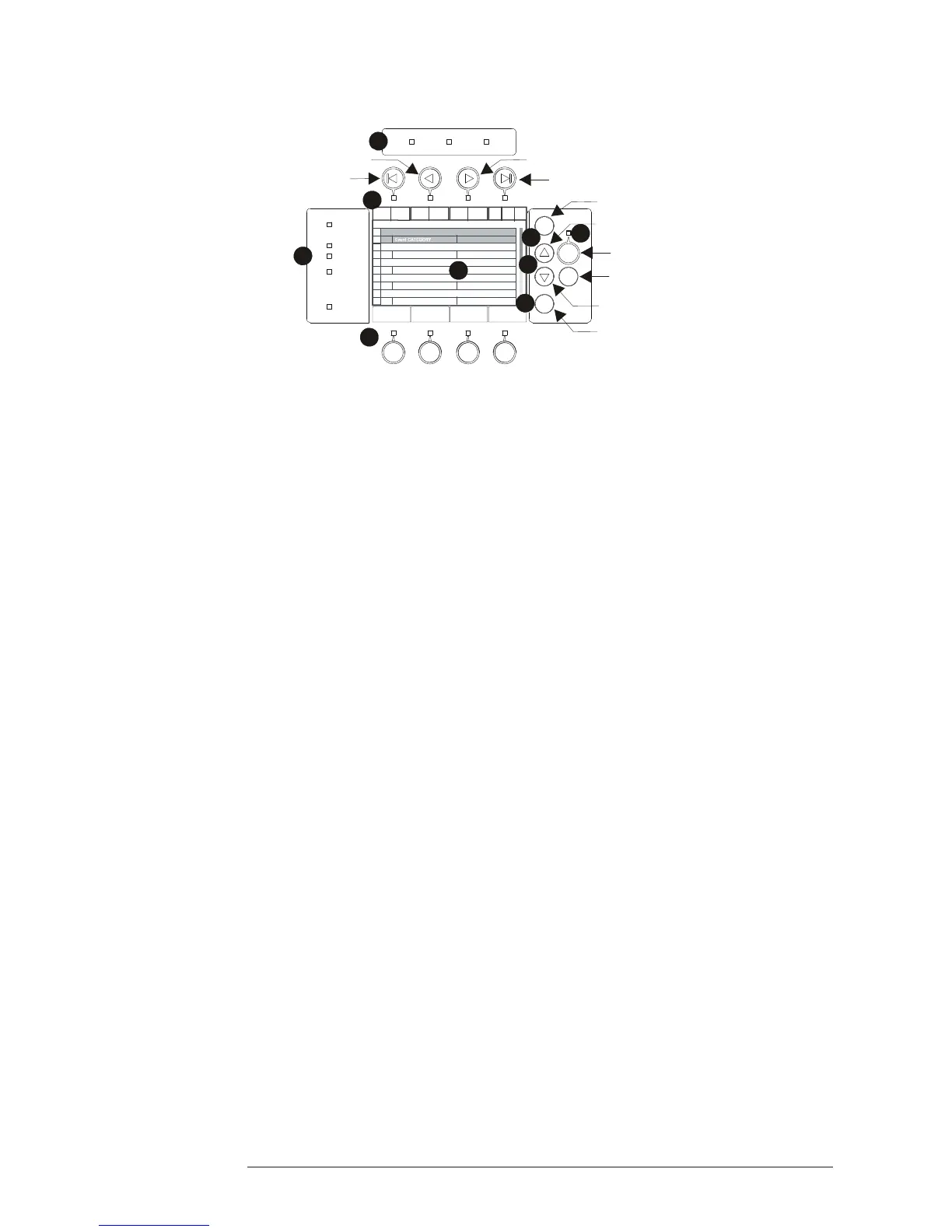

Figure 3-3
PMI-3 User Interface
Interface Overview
n LEDs blink when an event is reported and unacknowledged (ALARM: red,
SUPERVISORY: yellow, SECURITY (PMI/PMI-2 only): yellow, TROUBLE: yellow).
The LEDs glow steady if all events in the class/queue are acknowledged. An
internal audible alarm sounds steady when there is an unacknowledged fire alarm.
It pulses if all alarms are acknowledged, but there is at least one security, supervi
sory, or trouble condition.
o Along the top and bottom of the LCD are rows of four soft keys. The function of
these keys depends on the screen that is currently displayed. Each of the soft
keys has a green LED that is used to guide the operator to the available actions.
For the PMI-3 and the PMI-2 in ‘expanded’ queue mode, the keys at the top of
the LCD are used for scrolling through the various event queues. The navigation
buttons are only selectable if the LEDs under them are lit. Only those tabs with
one or more events can be selected by scrolling. A tab will blink if there are any
unacknowledged events under it. The tab that is currently being viewed is
identified by a red outline.
p POWER - Power LED glows steady green to indicate that the AC power is on;
blinks when the System is on battery backup.
To Next Page
