Fiber network module FN2006 / FN2007
Pin assignments
1
11
Siemens Industry, Inc.
A6V10315048_b_en_US
Building Technologies Division 01/13/2012

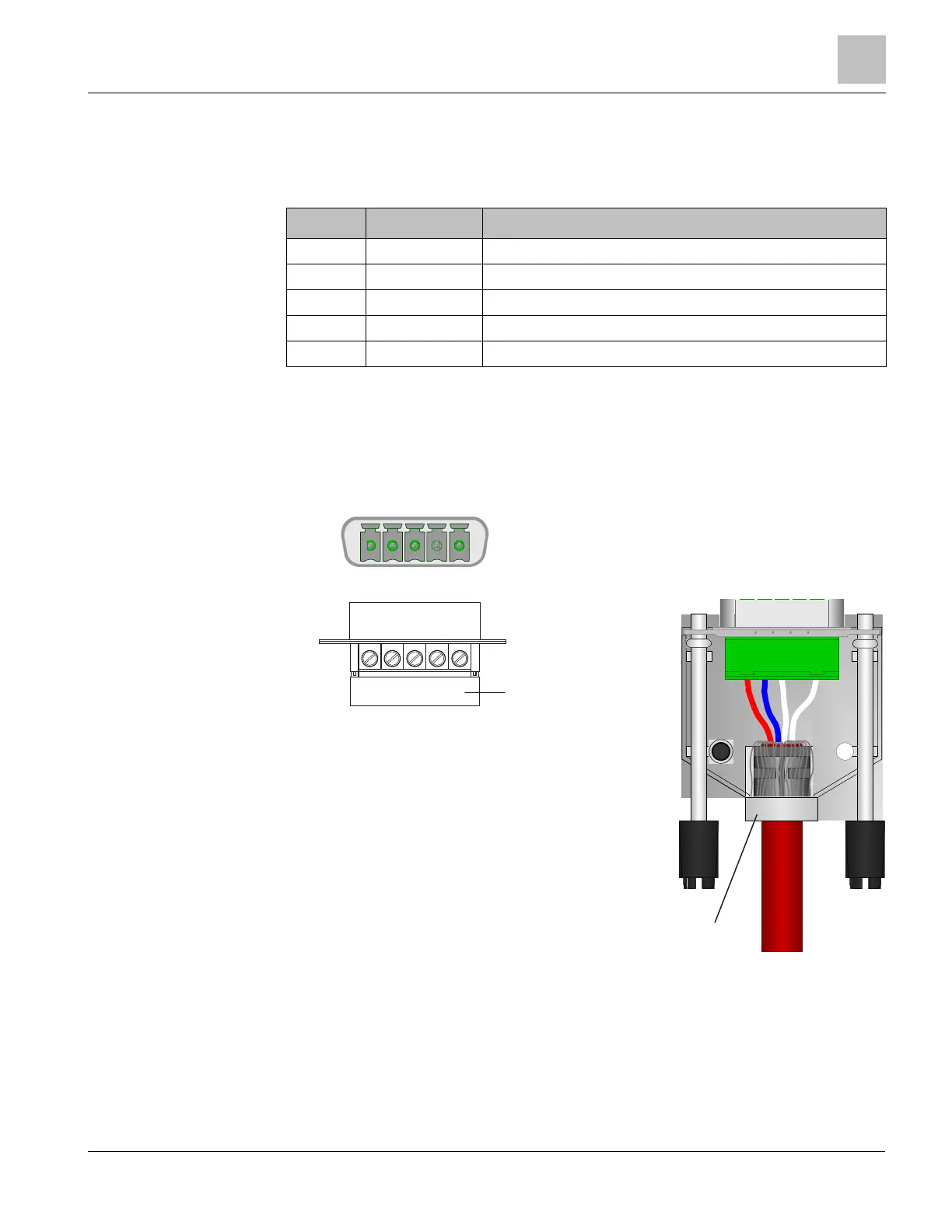

1.4.2 Power supply sockets (4, 6)
The 5-pole connectors for the power supply are supplied with the fiber network module.
Pin Designation Description
1 DC 24 V+ Supply input + of DC 24 V AUX from periphery board
2 DC 24 V- Supply input - of DC 24 V AUX from periphery board
3 COM Common contact
4 NO Normally open
5 NC Normally closed
Admissible cable cross-section: 16...28 AWG
When installing in the fire control panel, the power supply does not have to be
supervised or routed redundantly.
The supply line for a remote network module must be shielded.
In the event of an error, relay contacts COM and NC are connected.
Terminal Plug
without housing
Connector
Cover cap (open)
12345
+
-
C
NO
NC
Terminal Plug
with housing
360º shielding
Connector power A (B)
