Siemens FN2007-U1 User Manual

Fiber network module FN2006 / FN2007
1
Views
6
Siemens Industry, Inc. A6V10315048_b_en_US
Building Technologies Division 01/13/2012
1.3 Views
Fail1
RX1
LNK1
EF1
LNK2
PowerA
Fail2
RX2
PowerB
Line 1
Line 2
EF2
5
5
4
5
6
1
2
3
8
3
7

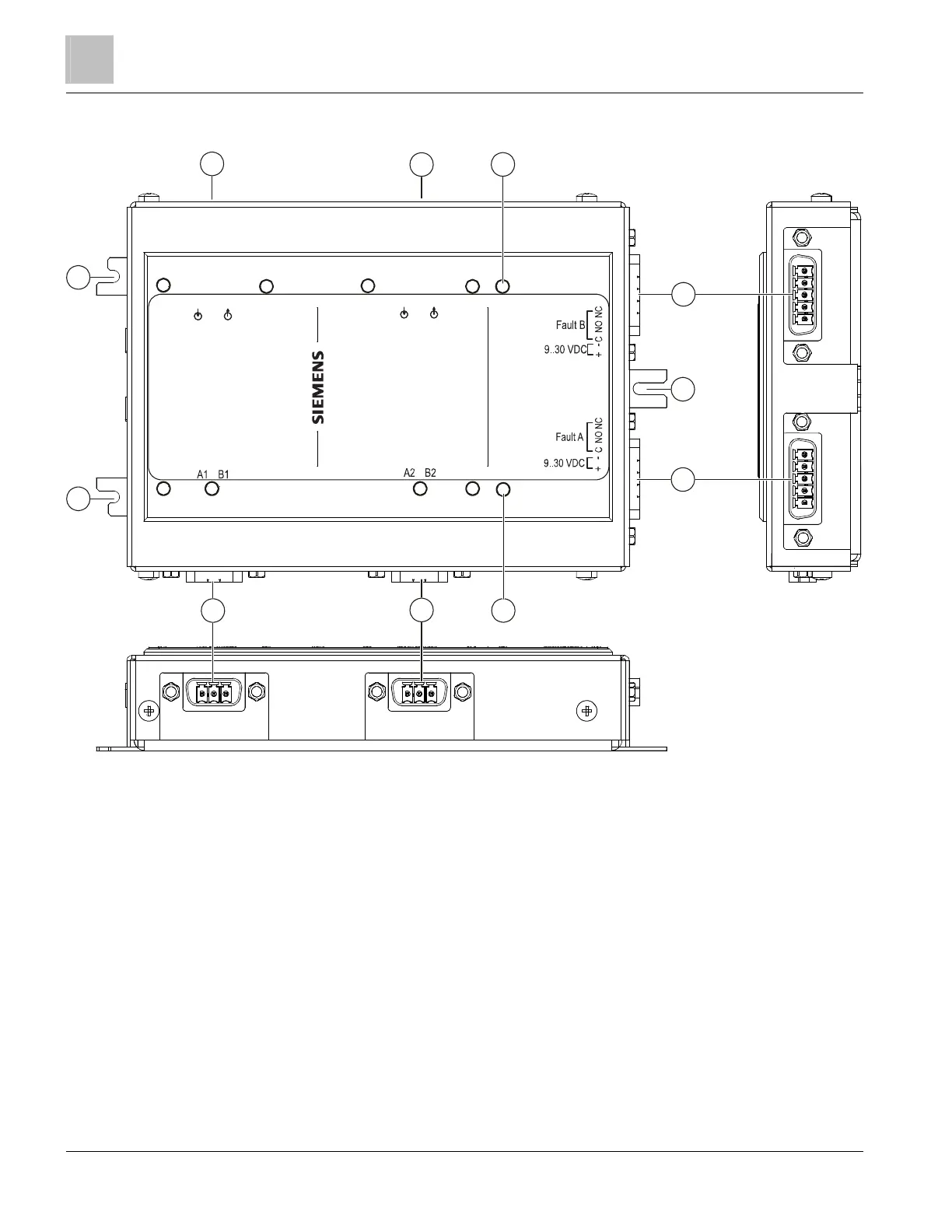

Views of the fiber network module from above and the side
1 Fiber optic SC connection for circuit 1
2 Fiber optic SC connection for circuit 2
3 10 LED indicators for data transmission, errors and power supply for both channels
4 Power B socket, redundant power supply and error contact
5 Fastening tab for enclosure installation
6 Power A socket, power supply and error contact
7 Socket A2/B2, FCnet/C-WEB circuit 2
8 Socket A1/B1, FCnet/C-WEB circuit 1

Siemens FN2007-U1 Specifications

General

Brand	Siemens
Model	FN2007-U1
Category	Control Unit
Language	English
