Fiber network module FN2006 / FN2007
Indicators
1
13
Siemens Industry, Inc.
A6V10315048_b_en_US
Building Technologies Division 01/13/2012

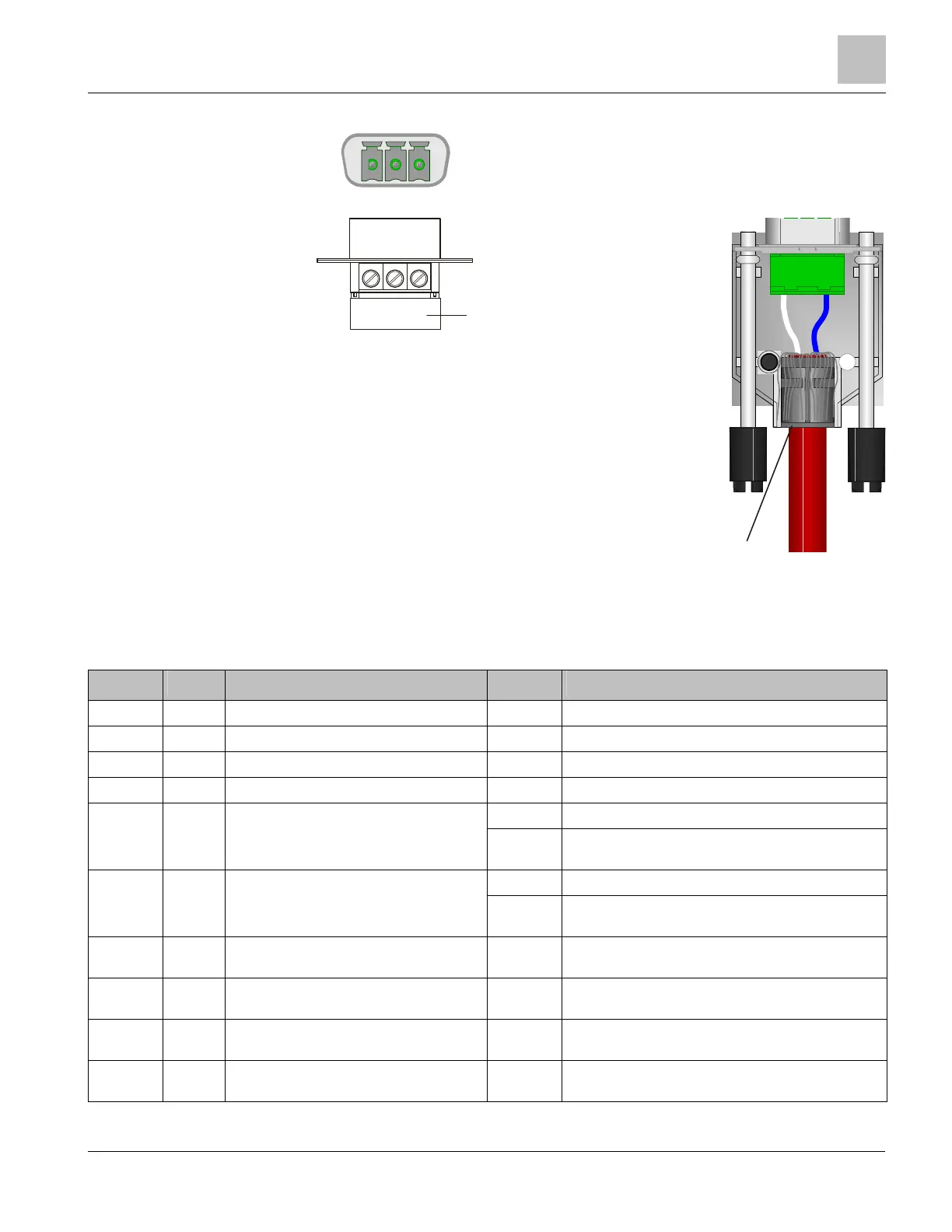

Terminal Plug
without housing
Connector
Cover cap (open)
123
A1
A2
B1
B2
Terminal Plug
with housing
360º shieldin
Connector EF1/EF2, FCnet/C-WEB A1/B1 (A2/B2)
1.5 Indicators
LED Colour Function Condition Meaning
RX1 Green Receipt of data from fiber optic circuit '1' Lit up Data is being received from circuit '1'
Fail1 Yellow Fault on fiber optic circuit '1' Lit up Weakly receiving data from circuit '1'
Fail2 Yellow Fault on fiber optic circuit '2' Lit up Weakly receiving data from circuit '2'.
RX2 Green Receiving data from fiber optic circuit '2' Lit up Data is being received from circuit '2'
On Normal operation (feeding voltage available) Power B Green Supervision of feeding voltage for
'Power B'
Off No feeding voltage or voltage below minimum
input voltage (9 V)
On Normal operation (feeding voltage available) Power A Green Supervision of feeding voltage for
'Power A'
Off No feeding voltage or voltage below minimum
input voltage (9 V)
LNK1 Green Data transmission for FCnet/C-WEB
circuit '1'
Flashes Data is being transmitted via A1/B1
EF1 Yellow Ground fault supervision on
FCnet/C-WEB circuit '1'
Lit up Ground fault on A1/B1
EF2 Yellow Creation of ground fault on
FCnet/C-WEB circuit '2'
Flashes Ground fault on A1/B1 mirrored on A2/B2
LNK2 Green Data transmission for FCnet/C-WEB
circuit '2'
Flashes Data is being transmitted via A2/B2
