Fiber network module FN2006 / FN2007
Installation
1
5
Siemens Industry, Inc.
A6V10315048_b_en_US
Building Technologies Division 01/13/2012
1.2 Installation
The fiber network module is installed on the far left of the back box of the enclosure
(2HU), beside the power supply. Installation is identical for the following modules:
Fiber network module (SM) FN2006
Fiber network module (MM) FN2007
Each fiber network module is supplied with a set of plugs.
4
1
2
3

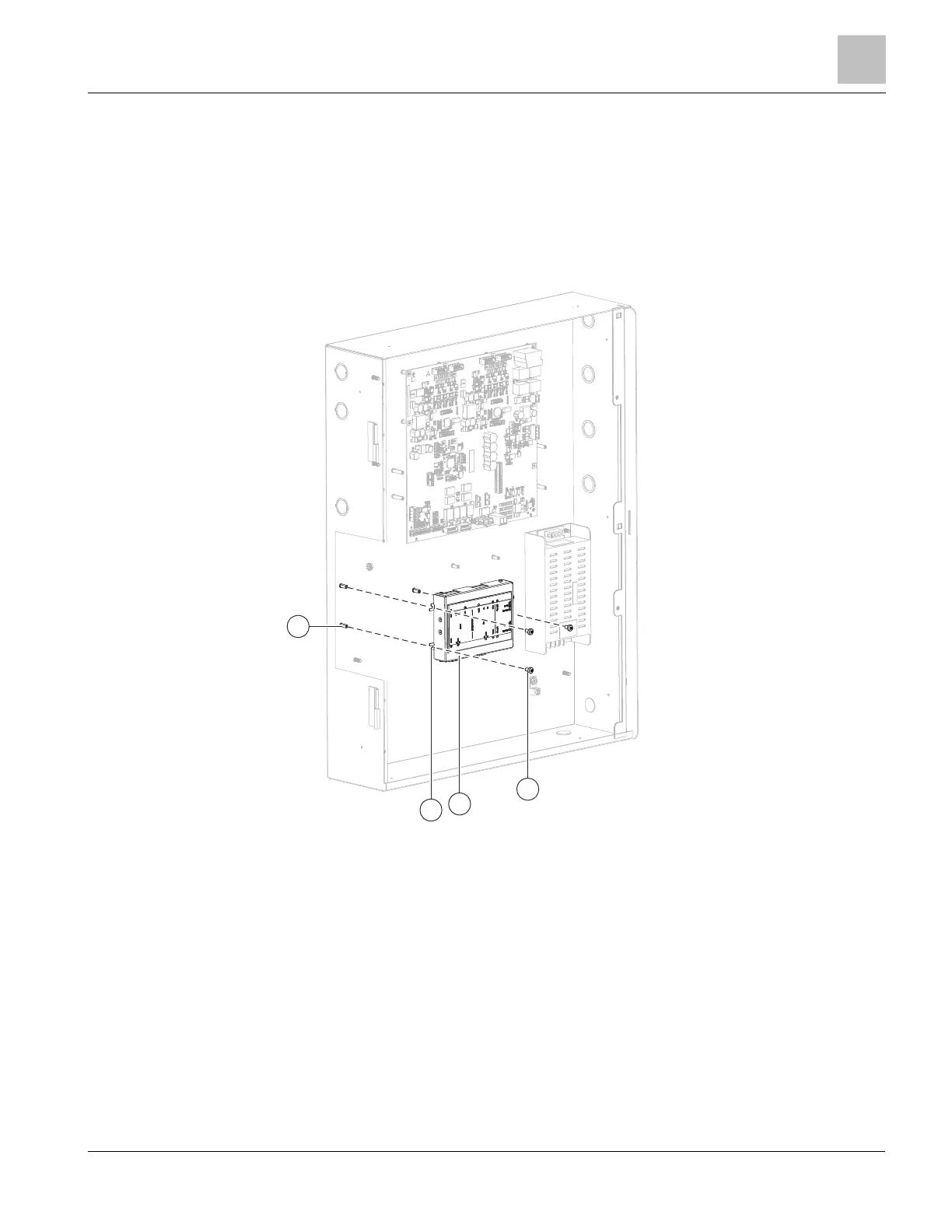

Installing the fiber network module FN2006 or FN2007 in the enclosure (2HU)
1 3x fixing screw
2 Fiber network module
3 3x fastening tab on enclosure underside of fiber network module
4 3x threaded sleeve in back box
1. Position the fiber network module (2) on the back box of the enclosure as shown.
2. Screw the fiber network module (2) on the three fastening tabs (3) with three
fastening screws (1) to the threaded sleeves (4) in the back box.
3. Wire up the fiber network module according to the following pin assignment.
