Siemens GCP5000 - Figure 3-187 Webui: Event Log TRACE Mode; Figure 3-188 Webui: Diagnostic Log

DISPLAY MODULE AND OFFICE CONFIGURATION EDITOR
_________________________________________________________________________________________________________
3-126
SIG-00-22-02 JUNE 2022 (Revised September 2022)
Version: B.1
If TRACE is selected, the WebUI will go into Trace mode and add events to a text buffer as they
are received in real-time. To pause the trace, press the Stop button. To restart tracing, press
the Start again. To clear the trace buffer press the Clear button. Press the back button to exit
TRACE mode and return to the BASIC mode.

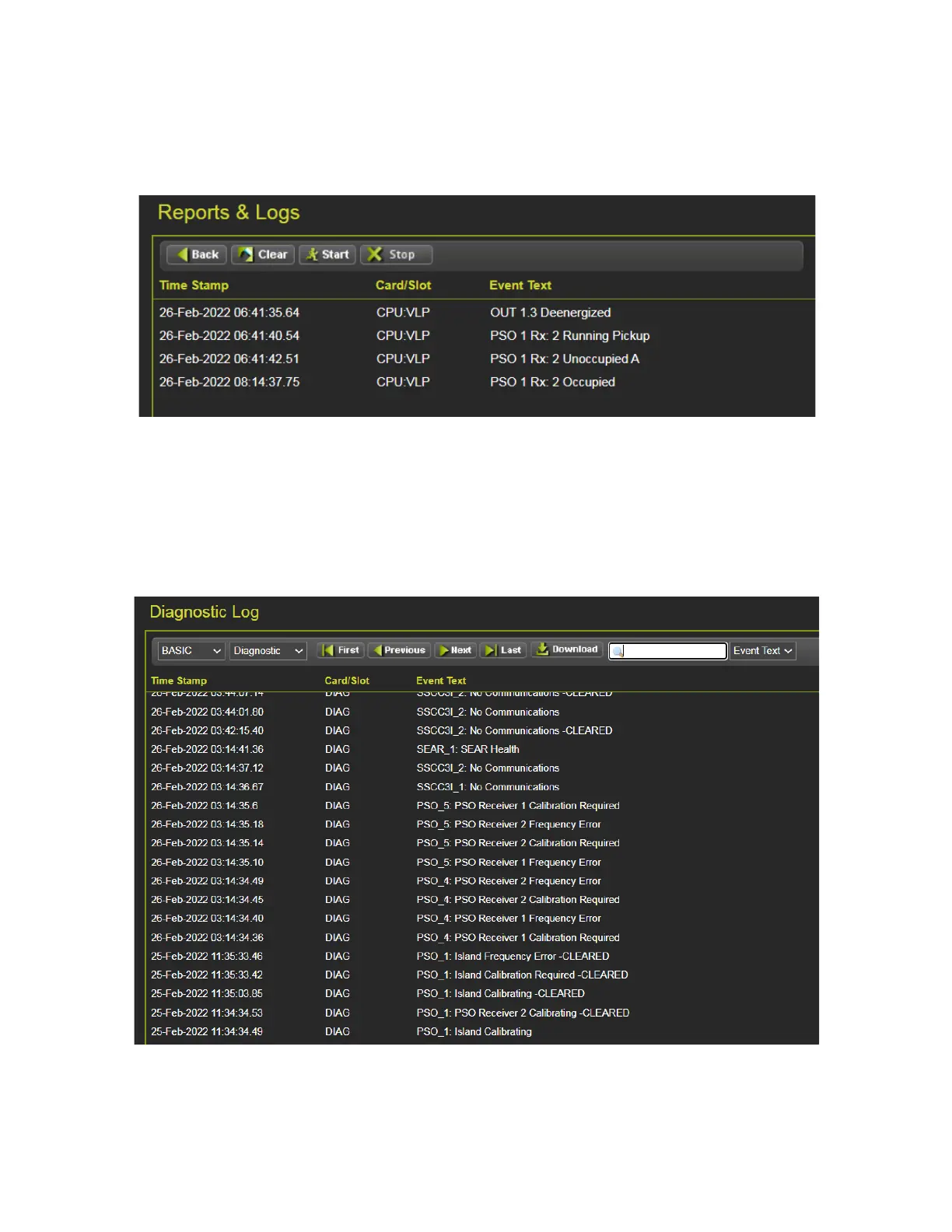

Figure 3-187 WebUI: Event Log TRACE Mode
3.5.5.2 Diagnostic Log
The Diagnostic log contains entries for whenever a diagnostic message is generated or cleared.
The events here are generated by the CPU and sent to the display where they are time-
stamped and added to the log.
The WebUI diagnostic log page allows the user to page through the events, download all or part
of the log, or turn on a real-time trace so new events get displayed as they are logged.
Figure 3-188 WebUI: Diagnostic Log
The menu bar allows navigation of the log and downloading is the same as for the Event Log.
See the Event Log Section 3.5.5.1 for details.
