3.1.2.1.5 Calibration
The calibration screen shows the calibration status of the receiver and island along with the
current RX Signal Level and Code received.

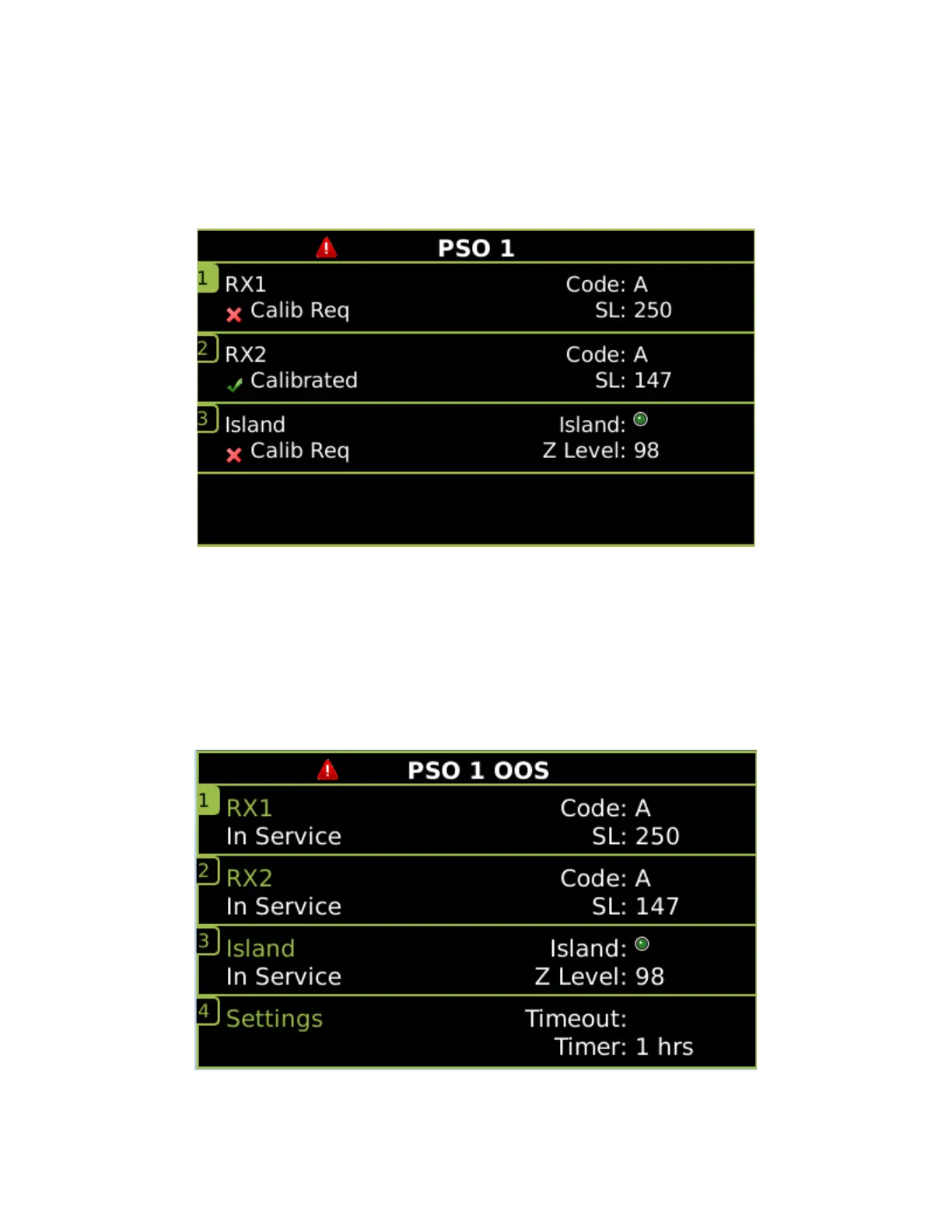

Figure 3-6 Calibration Screen
Follow the instructions in Section 6 of this manual on how to calibrate the receivers and island.
3.1.2.1.6 Out of Service
The out-of-service screen will show the current service status of the PSO receivers and Island
along with the current RX Signal Level and Code received. See Section 5 of this manual for
details on how to take a PSO receiver and island out of service.
Figure 3-7 Out of Service Screen
