20 Operating variants of the parameters 08.12.2017
20 Operating variants of the parameters
The parameters stored in the burner control LME39… can be displayed and changed
on the parameter level.
V
SD
AF
>1 s
Press button combination
V
SD
AF
to display
000: Int.
With
, select the parameter group 100:
PArA.
With
, select the parameter group 100:
PArA.
Pressing the
/
reset
button takes you to
parameter 182: Flame sensitivity.
20.1 Parameters without index, with direct
display

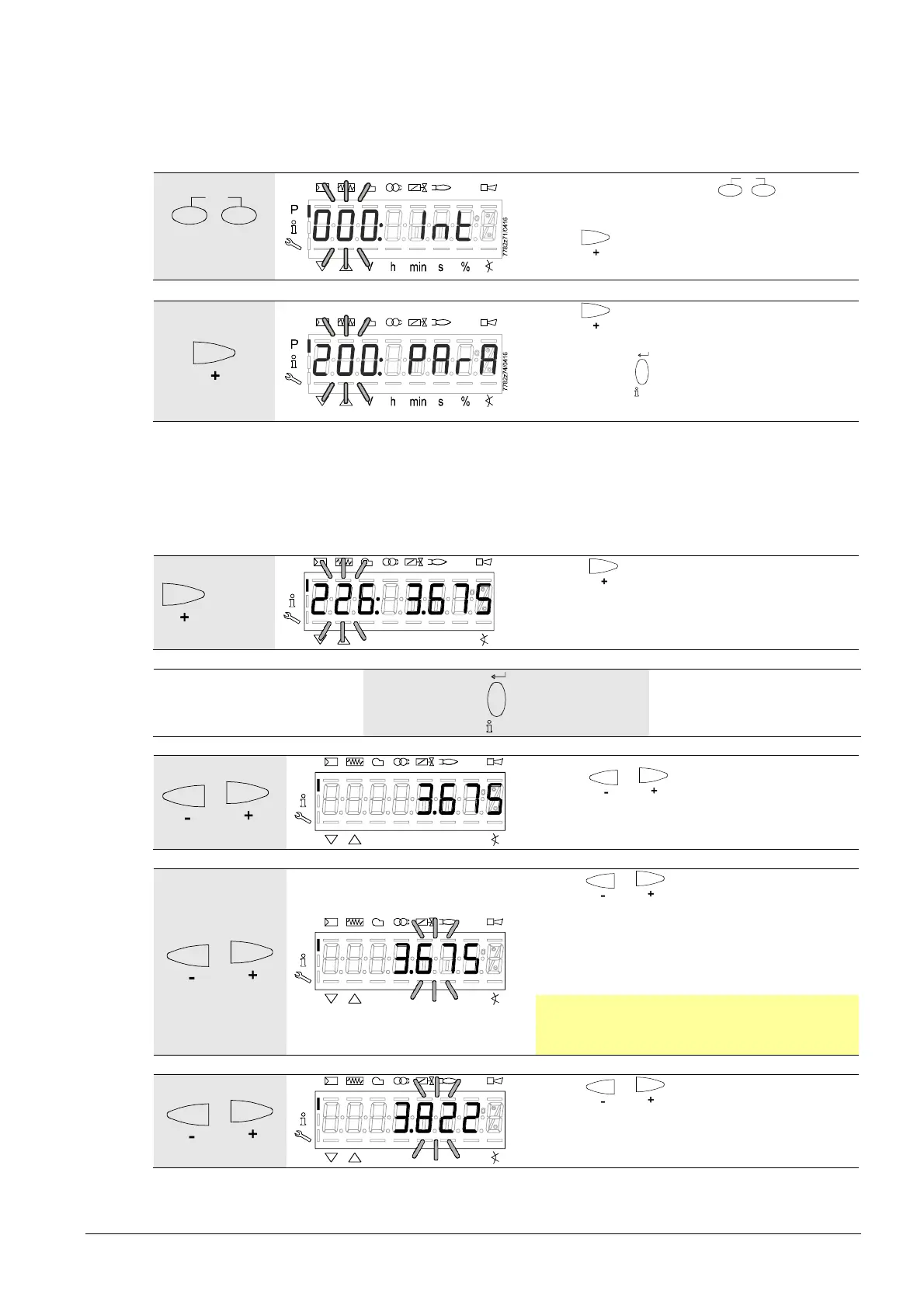

20.1.1 Example of parameter 226 (preignition time) on the
parameter level
P
Vh
mi n
s%
Bild 186/1107
Press to select preignition time.
Display: Parameter 226: flashes, value 3.675
does not.
/
reset
or
P
Vh
mi n
s%
Bild 167/1107
Press or to go to editing mode.
Display: 3.675
or
P
Vh
min
s%
Bild 168/1107
Press
or to shift the former
preignition time to change mode one place to
the left.
Display: Preignition time 3.675 flashes.
Note!
To detect display errors, the value appears
one place shifted to the left.
or
P
Vh
min
s%
Bild 169/1107
Press or to select the required
preignition time.
Display: Preignition time 3.822 flashes
