© Siemens AG 2015. All rights reserved
A5E36847555A/001, 11/2015
5
LOGO!
CMK2000
Compact Operating Instructions

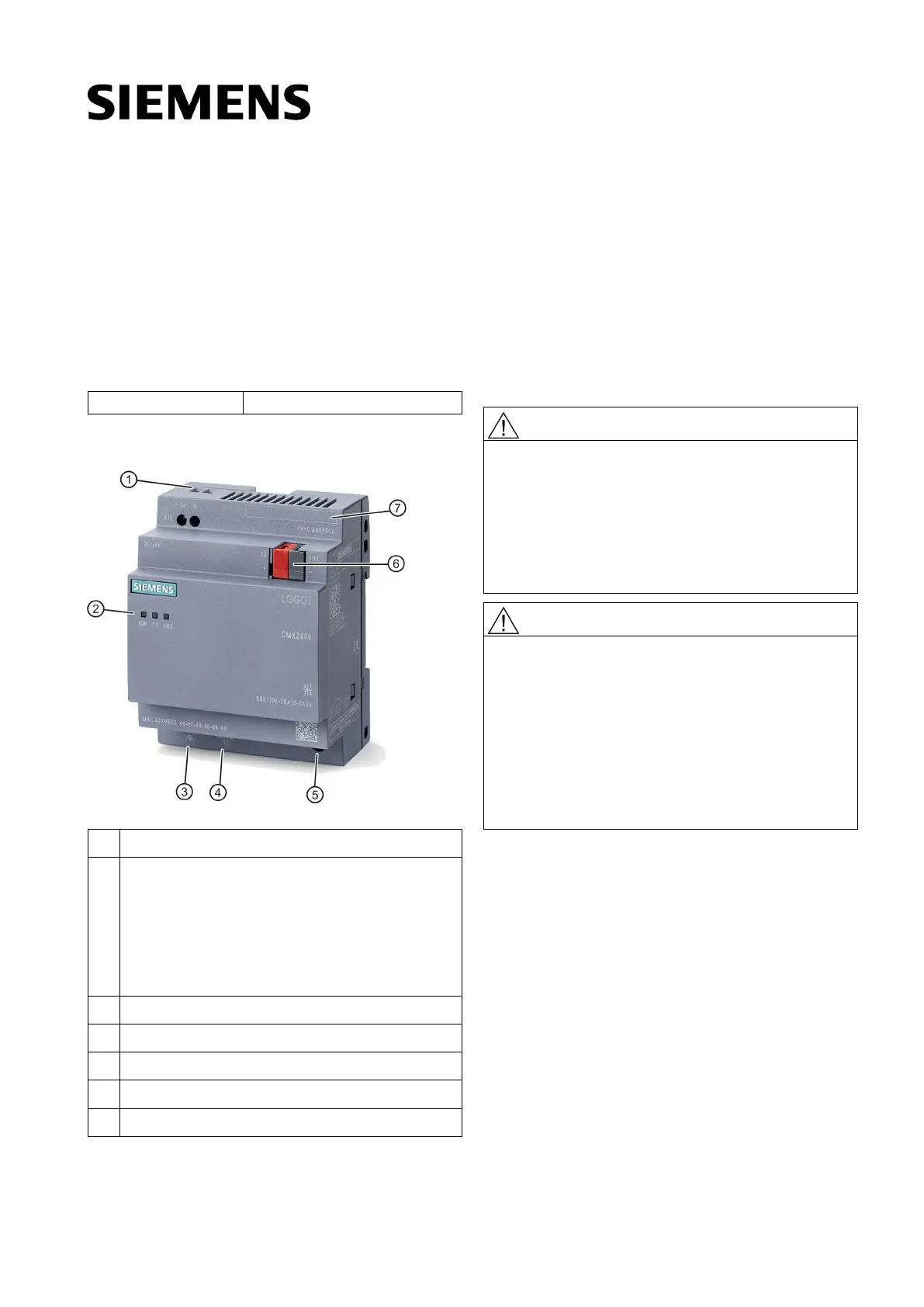

The LOGO! CMK2000 is a communication module from the
LOGO! family with a KNX interface.
This document is valid for the following products:
①
24 V DC connection
②
Status LEDs
• RUN: Status of the CMK2000
• P1: Connection status with LOGO!
• KNX KNX connection status / programming mode
/ warm restart
FE functional grounding connection
Ethernet connection (LOGO! 8)
Programming/reset button
KNX bus connection
Labeling field for physical address:
This device corresponds to the approvals printed on the
type plate. If you have questions about whether it is
permissible to install the device in the planned environment,
please contact your service representative.
•
The product/system described in this documentation
may only be operated by personnel qualified for the
specific task in hand. Qualified personnel are those
who, based on their training and experience, are
capable of identifying risks and avoiding potential
hazards when working with these products/systems.
• Alterations to the devices are not permitted. Failure to
observe these guidelines shall constitute a revocation
of the approvals and manufacturer's warranty.
Electric shock hazard
May cause death, serious injury or material damage.
• Voltages > 60 V can occur in the control cabinet.
Suitable safety precautions preventing contact must
therefore be taken before and during commissioning
and maintenance work.
• Switch off the power supply and secure against
switching on again. All system components must be
off-circuit during installation and connection.
• UL-approved cable types must be used for UL-certified
