CMK2000
8 A5E36847555A/001, 11/2015

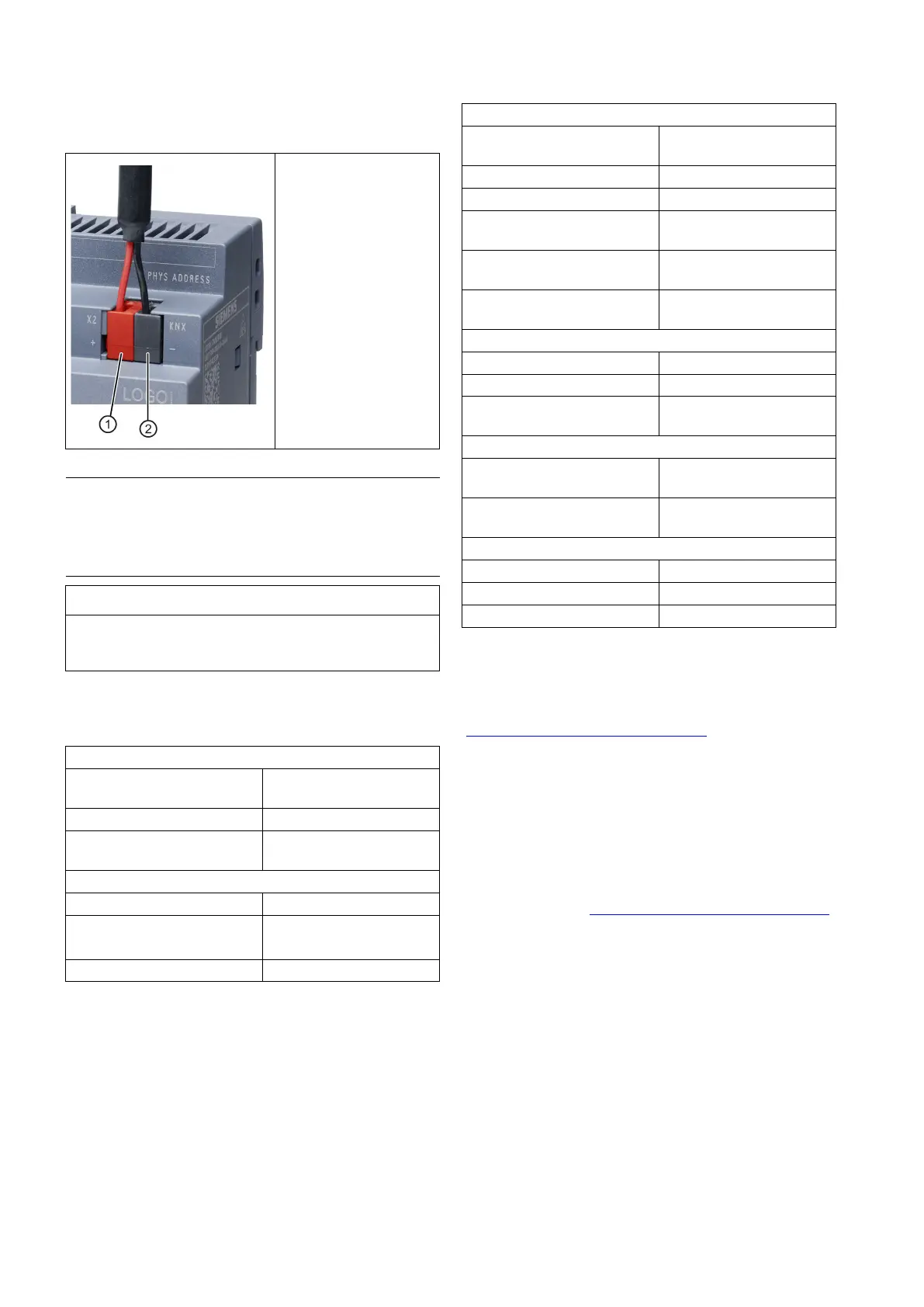

Connecting CMK2000 to the KNX bus
① red (+)
② black (-)
Recommended bus
cable:
• YCYM (2 x 2 x 0.8
mm
2
)
• J-Y(ST)Y (2 x 2 x 0.8
mm
2
)
Only the red-black core pair is used; the white-yellow
core pair is not connected.
Do not connect the shield of the KNX cable.
• Only KNX-certified bus cables may be used.
Do not use electrically conductive objects such as
screwdrivers to lever out the KNX terminal. Otherwise
there is a danger that the two KNX pins may short-circuit.
Supply voltage 24 V DC (19.2 V ...
Current consumption,
0.04 A
Maximum transmission rate
Protocols EIB/KNX,
Ambient temperature in
•
• Vertical installation
Ambient temperature during
-40 °C ... +70°C
Relative air humidity during
10 % ... 95 % at 25 °C, no
Maximum height above sea
2000 m
Mechanical specifications
Dimensions (W x H x D) 71.5 mm x 90 mm x 58.5
Interference emission
According to EN 61000-6-
Immunity (industrial areas) According to EN 61000-6-
Standards, approvals, certificates
cULus Yes
For additional information (e.g. on configuration and
commissioning), please refer to the operating
instructionsSupport homepage
(http://support.automation.siemens.com
).
The product database and the operating instructions for the
CMK2000 KNX LOGO! module can be downloaded as a
knxprod file as from ETS 4.
http://www.siemens.com/gamma-td (search text: "LOGO")
Siemens Industry Online Support
Support homepage (http://support.automation.siemens.com)
, 11/2015
Siemens AG
Division Digital Factory
