9 of 15
TI_Repair_L2.5l_CX75_M75_R1.0.pdf Release 1.0
4 Connector Battery
Fault Symptoms
Customer: GRT:
Mobile does not switch on No connection to GRT

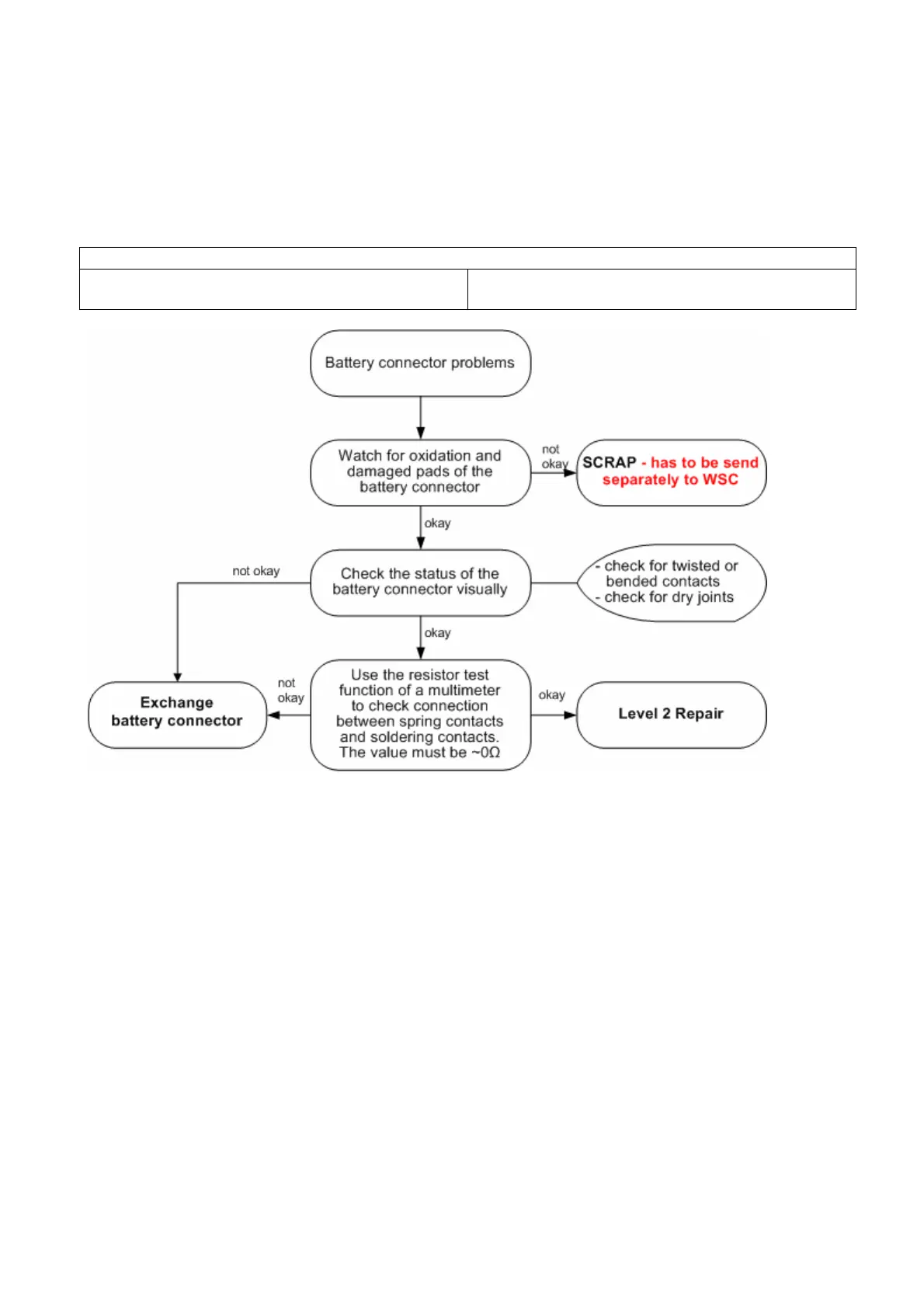

Connector BATTERY
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number: L36334-Z97-C213
E-commerce order name: CONNECTOR BATTERY 3-POL
Soldering temperature: ~ 360°C TIP Temp.
IRIS Diagnose Code: 13000 Battery/Mechanical Damage
