Page 6 Milltronics MillPulse 600 – INSTRUCTION MANUAL 7ML19985DG02

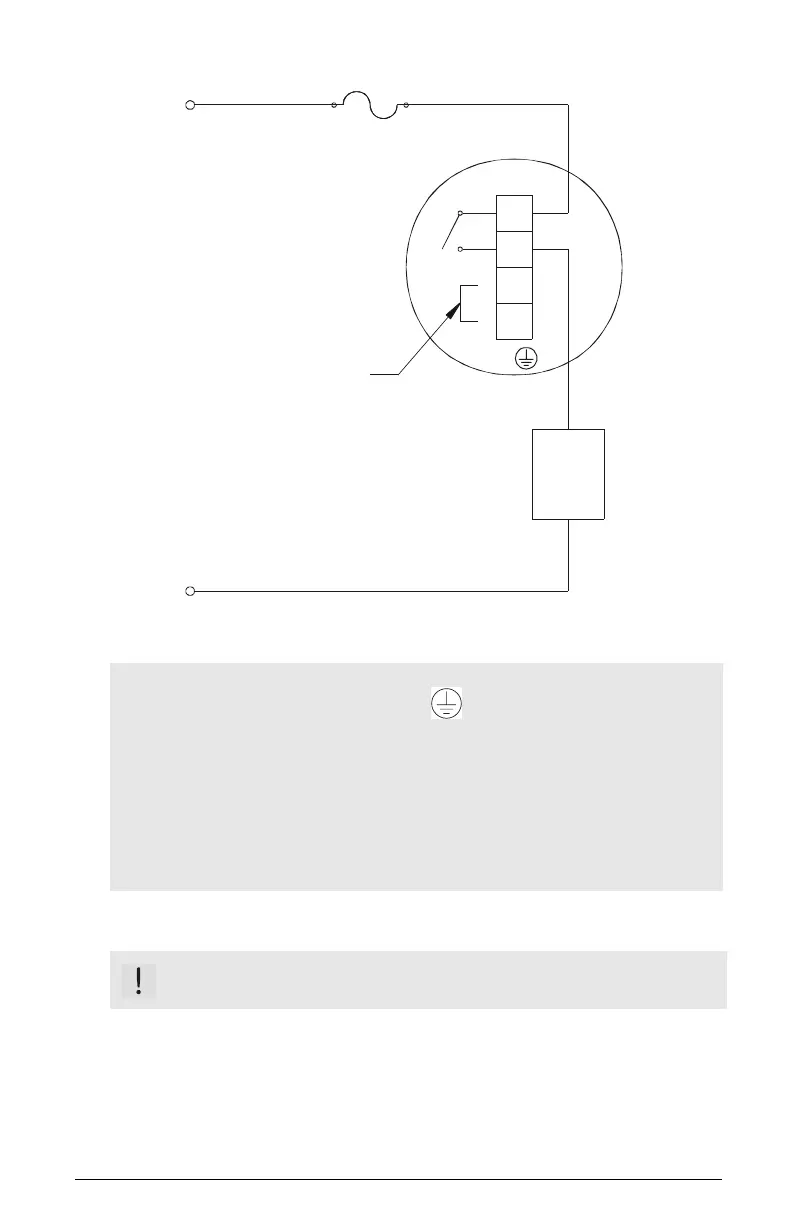

Interconnection
Notes:
• The protective earth terminal indicated by must be connected to reliable
ground.
• All wiring must be done by qualified personnel in accordance with all governing
regulations.
• The equipment must be protected by a 15A fuse or circuit breaker in the building
installation.
• A circuit breaker or switch in the building installation, marked as the disconnect
switch, shall be in close proximity to the equipment and within easy reach of the
operator.
WARNING: All field wiring must have insulation suitable for at least
135 V.
fuse
Operating Voltage:
jumper in
18 to 48 V AC/DC
jumper out
60 to 135 V AC/DC
jumper
PLC
input/load
1
2
3
4
Milltronics
Millpulse
600
To Next Page
