7ML19985DG02 Milltronics MillPulse 600 – INSTRUCTION MANUAL Page 9

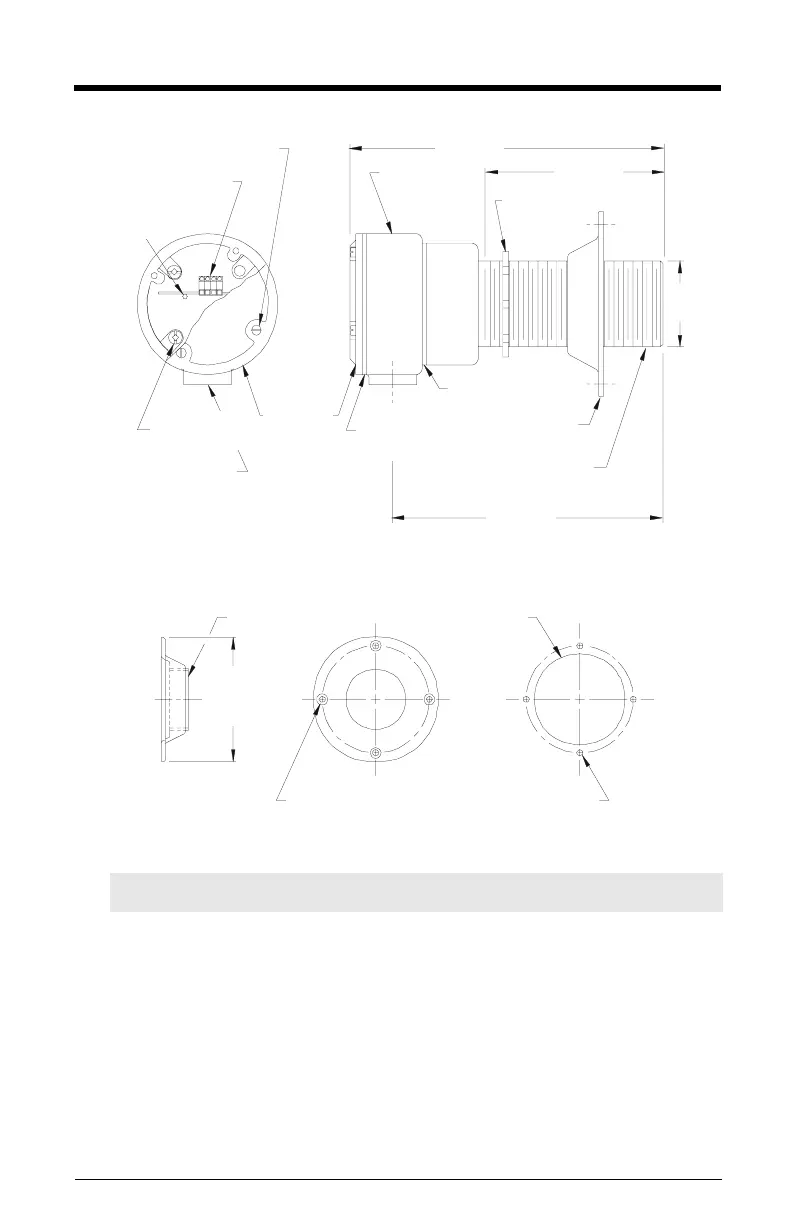

Dimensions
Note: Install safety shields where required.
casing gasket,
neoprene
mounting flange,
see detail “A”
cap,
aluminum,
with LED
window
cap
gasket,
neoprene
2“ NPSL
aluminum probe
10-32 screw, 4 places. Tighten
screws to 1.1 to 1.7 N-m (10 to
15 in-lb) of torque
226 mm
(8.9”)
127 mm
(5”)
locknut,
plated
casing,
aluminum
terminal
block
LED
earth/ground
screw (min M4)
3/4” NPT conduit
entrance
197 mm
(7.75”)
DETAIL “A”
MOUNTING
95 mm (3.75”) dia.
probe clearance hole
6 mm (0.25”) dia. hole
for 1/4-20 bolt or drill
and tap on 114 mm
(4.5”) BCD, 4 places
6 mm (0.25”) dia. hole
for 1/4-20 bolt on 114
mm (4.5”) BCD, 4 places
o.d.
133 mm
(5.25”)
2” NPSL
60mm
(2.38”)
