Siemens Milltronics Millpulse 600 - Belt Conveyors; Screw Conveyors

7ML19985DG02 Milltronics MillPulse 600 – INSTRUCTION MANUAL Page 11

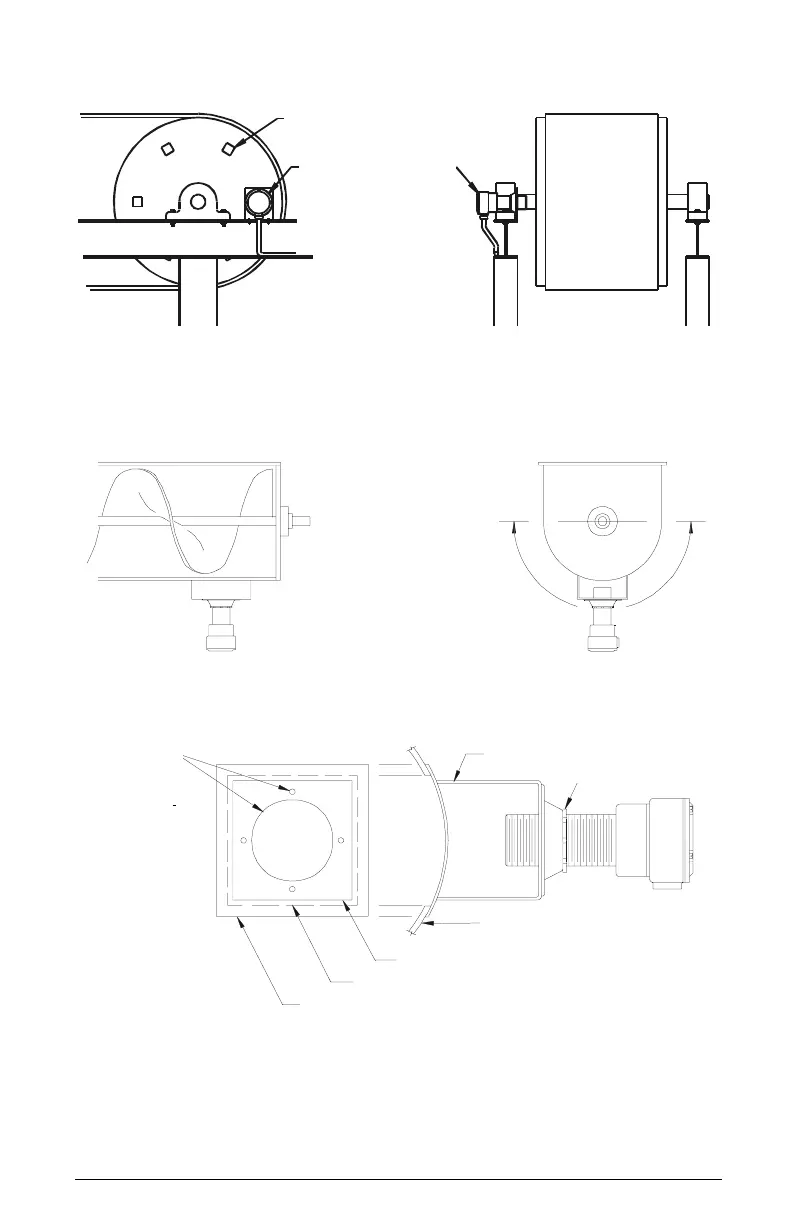

Belt Conveyors
Screw Conveyors
Install a non-ferrous window for screw conveyors with troughing over 3 mm (0.125”) thick
or for high temperature applications. The dimensions shown for the plate, window, and
bracket are the minimum recommended. Use series 300 stainless steel, brass, or
aluminum. Milltronics Millpulse 600 must not touch the plate if temperatures are in
excess of 60 °C (140 °F).
ferrous blocks or
spoked wheel
Milltronics
Millpulse
600
Milltronics
Millpulse
600
idler end
Window Detail
Milltronics Millpulse 600
mounting
bracket
Milltronics Millpulse 600
with supplied flange and
locknut
conveyor troughing
bracket
window
plate
Milltronics
Millpulse 600
clearance and
mounting hole,
See
Dimensions ,
page 9
