Mounting and installing MindConnect Elements
4.4 LED lights of MindConnect Elements
Getting Connected to MindSphere
Getting Started, 05/2018 23

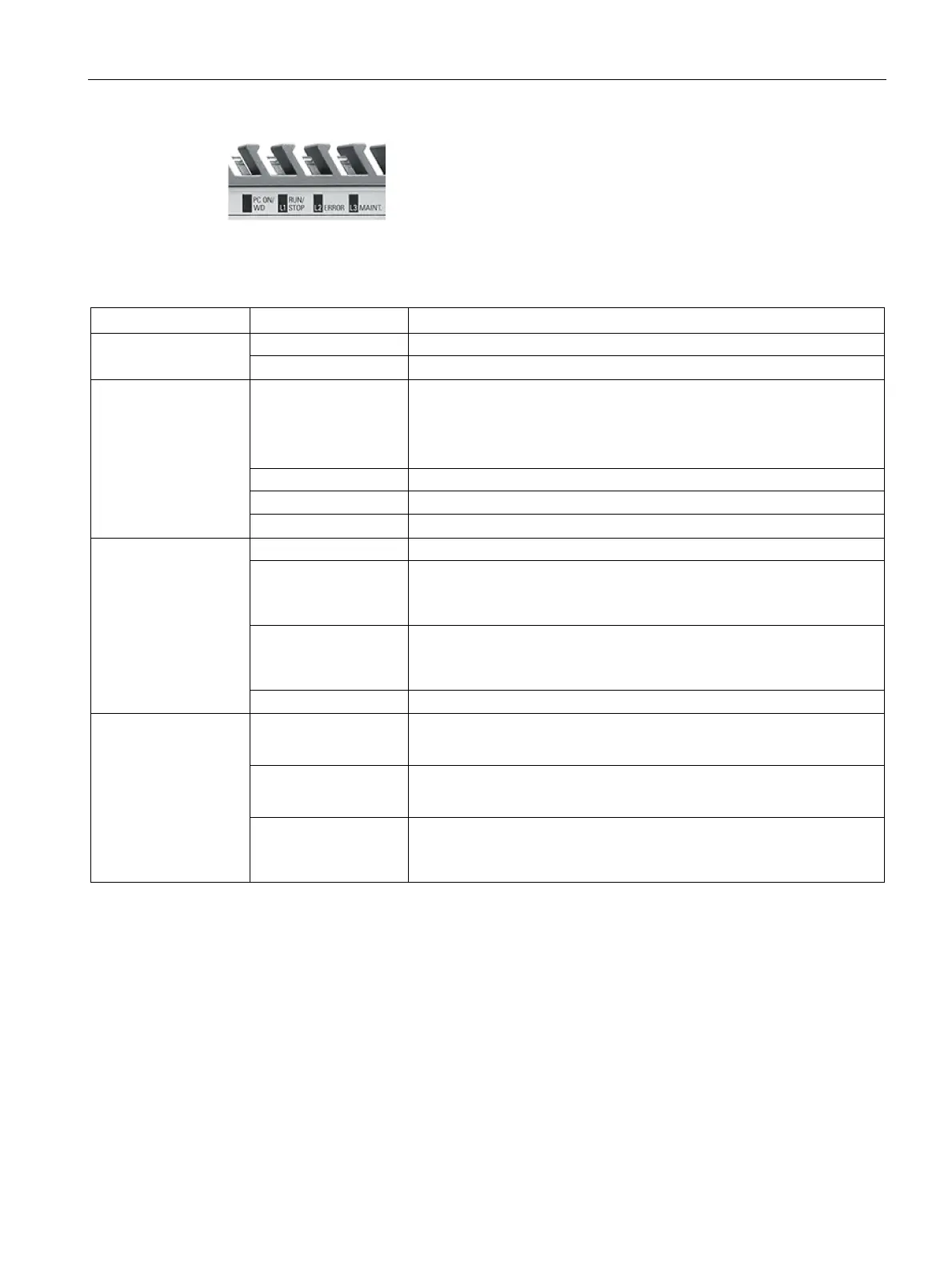

Figure 4-5 LED lights - bottom view 2
The following table shows the meanings of the LED lights:
LED-Name Status Description
PC ON/WD GREEN Power on
ORANGE System restart
L1-RUN/STOP ORANGE
• No connection to proxy·
• No connection to MindSphere
For explanation of possible problems and respective solution, please
refer to the chapter “Troubleshooting”.
Blinking ORANGE Connection to MindSphere is being established.
Blinking GREEN Onboarding is in progress.
GREEN MindConnect Nano is onboarded to MindSphere.
L2 - ERROR Blinking ORANGE Firmware update active.
ORANGE
• No connection to the datasources
For explanation of possible problems and respective solution, please
refer to the chapter “Troubleshooting”.
Blinking RED
• Data loss
For explanation of possible problems and respective solution, please
refer to the chapter “Troubleshooting”.
RED Firmware update error
L3 - MAINT Blinking ORANGE USB stick is active:
• Installing USB configuration
ORANGE Onboarding failed:
• Configuration file on the USB stick is not valid
Blinking RED
• USB stick Error
For explanation of possible problems and respective solution, please
refer to the chapter “Troubleshooting”.
You can find more information about LED errror codes in section Troubleshooting (Page 26).
