Connecting MindConnect Elements
5.3 Connecting MindConnect Nano to MindSphere network
Getting Connected to MindSphere
36 Getting Started, 05/2018
Procedure
Before you start onboarding, connect MindConnect Nano to MindSphere, as follows:
Insert Ethernet cable into the port labeled with X1 P1 to connect MindConnect Nano to
MindSphere.

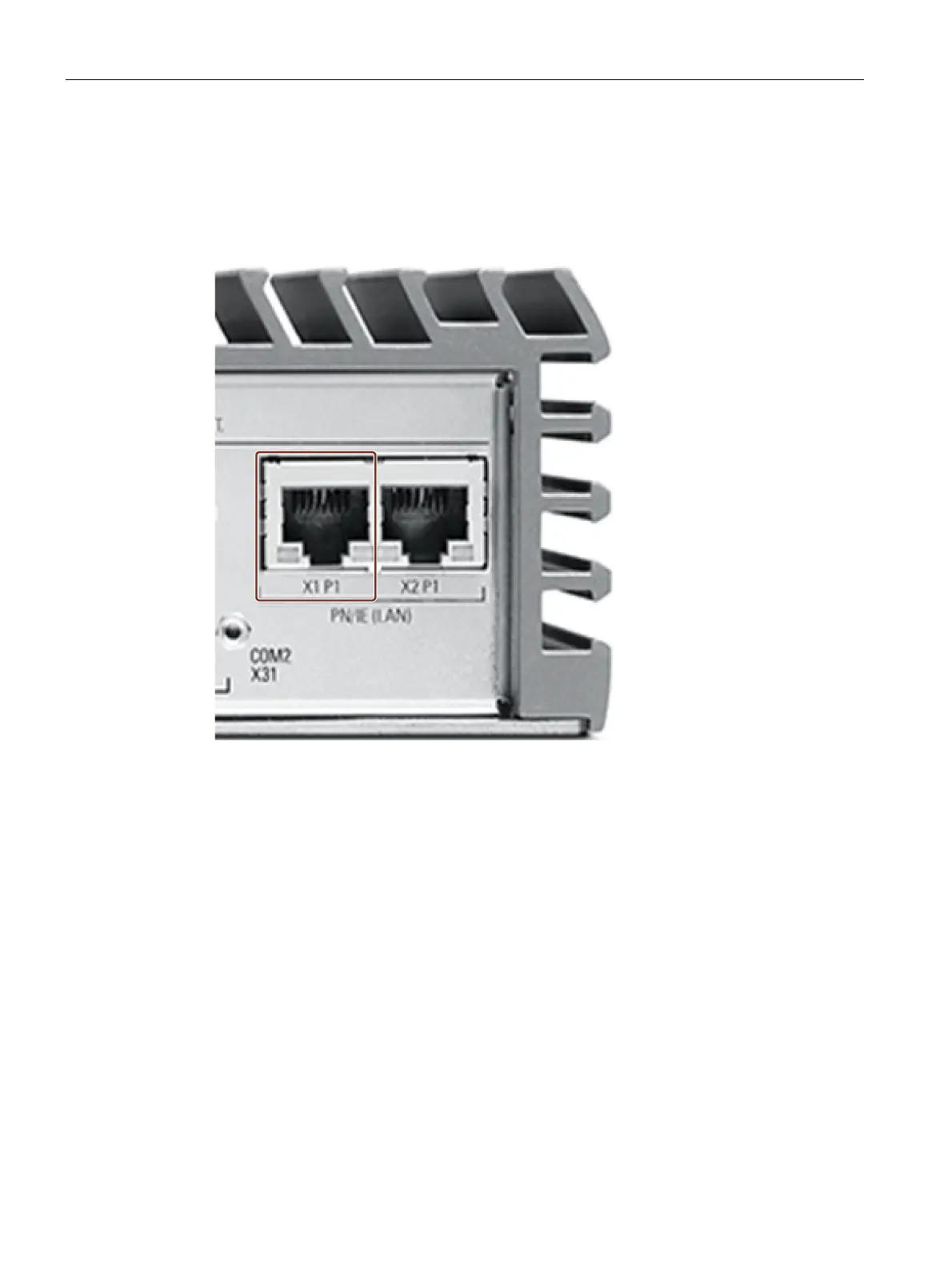

Figure 5-5 Connecting the port X1 P1 for Internet (MindSphere)
