Siemens OPTIPOINT HIPATH 2000 Service Manual

boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-367
Boards for HiPath 3000
Options
Installation location of the PFT1 and PFT4 board (MDFU/MDFU-E)
Wire PFT1 or PFT4 into the MDFU or MDFU-E. The boards require -48 V. For the assignments
of both boards, see Figure 3-163.

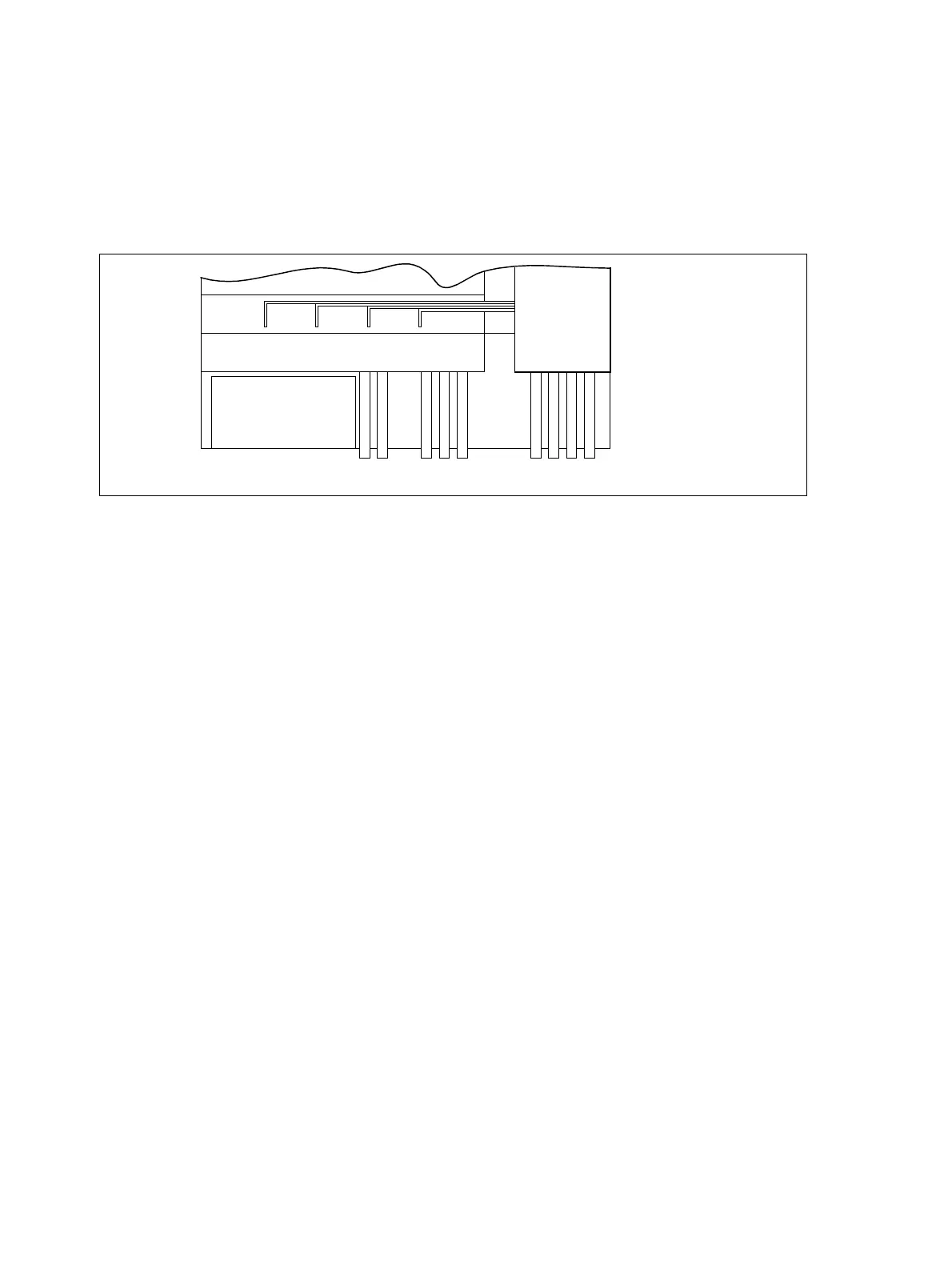

Figure 3-162 Installation Location of PFT1 and PFT4 (MDFU/MDFU-E) (Not for U.S.)
2 x PFT1
or
1 x PFT4
System side
Line network
