NEW LINEAR MOUNTING INSTRUCTIONS

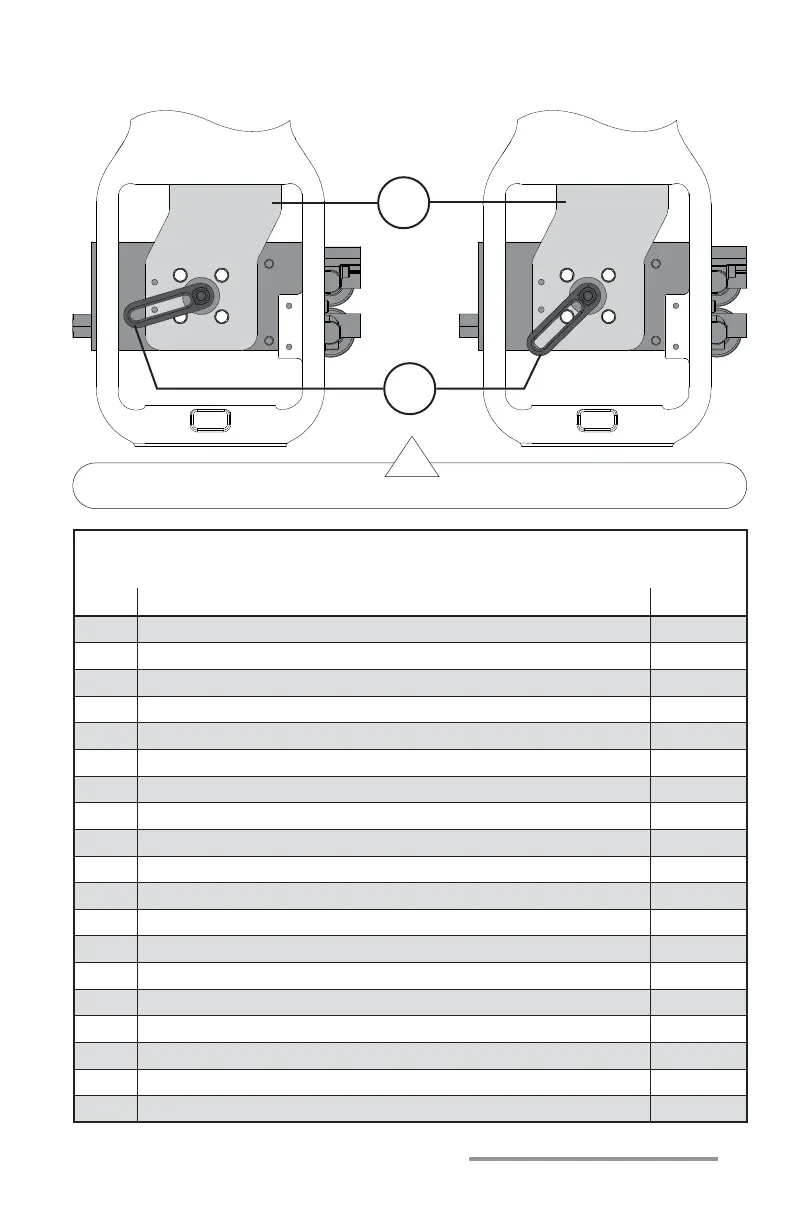

Figure 6 Angle of Travel Feedback Arm Positions - Step 6
Table 3
Linear Actuator Mounting Parts List
Key Description Quantity
1 Connecting Block Bracket 1
2 Sliding Pin - Sliding Pin Assembly 1
3Tefl on Stopper - Sliding Pin Assembly 1
4 Spring - Sliding Pin Assembly 1
5 Spring Seat - Sliding Pin Assembly 1
6 Washer - Sliding Pin Assembly 1
7 Hex Nut - Sliding Pin Assembly 1
8 Yoke Bracket 1
9 Lock Washer - PS2 Mounting 4
10 Hex Head Cap Screw - PS2 Mounting 4
11 Feedback Arm Assembly 1
12 Socket Set Screw 2
13 Hex Head Cap Screw - Yoke Bracket Mounting 2
14 Lock Washer - Yoke Bracket Mounting 2
15 Spacers - Yoke Bracket - For Actuator Size 1046 2
16 Connecting Block 1
17 Hex Head Cap Screw - Connecting Block 2
18 Washer - Connecting Block 2
19 Spacer - Connecting Block - For Actuator Sizes 2105 to 3156 2
14
33
O
POSITION 45
O
POSITION
11
8
To Next Page
