Siemens PS2 User Manual

Dyna-Flo Control Valve Services Ltd.
Phone: 780 • 469 • 4000 | Toll Free: 1 • 866 • 396 • 2356 | www.dynafl o.com
P-PS2Q0619A
17
ROTARY MOUNTING INSTRUCTIONS
Table 4
Rotary Actuator Mounting Parts List
Key Description Quantity
1 Mounting Bracket - Rotary 1
2 Lock-washer 4
3 Hex Cap Screw 4
4 Coupler 1
5 Travel Indicator 1
6 Pin Assembly 1
9 Hex Cap Mounting Bolt 2
10 Lock-washer 2
11 Spacer 2

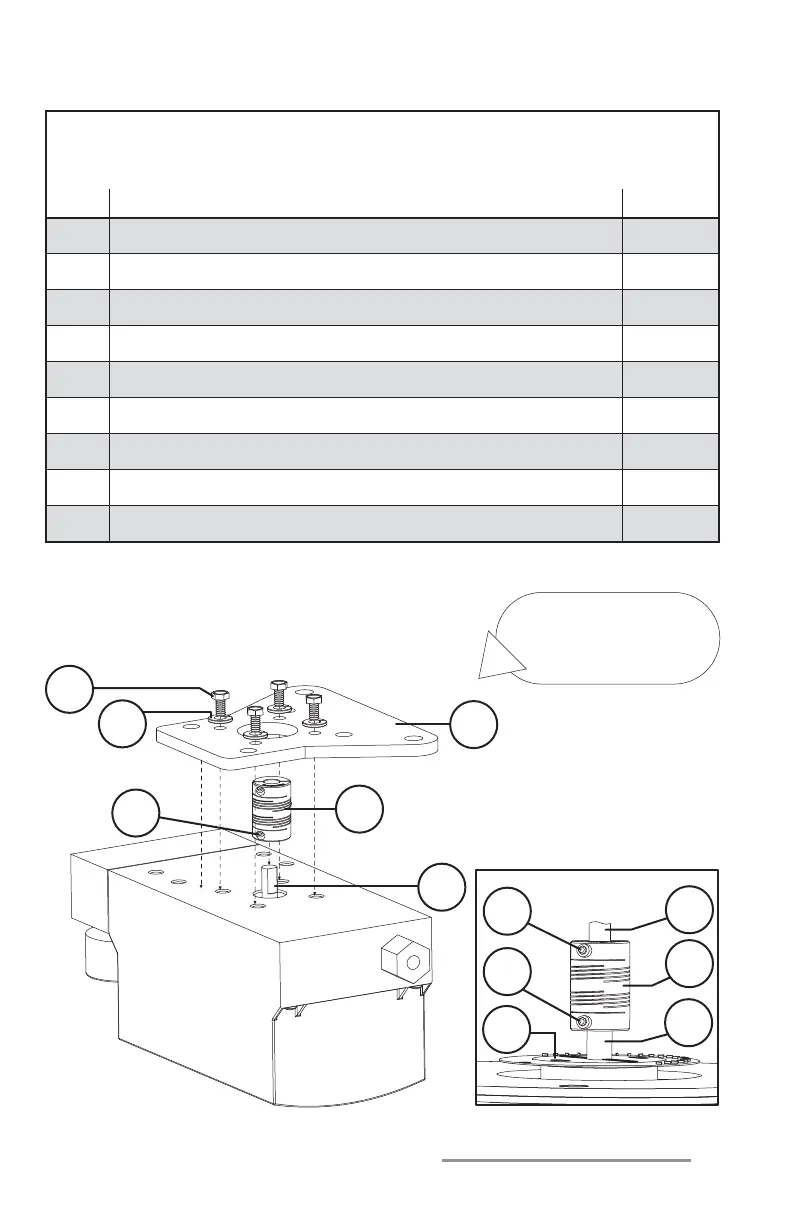

Figure 7A
Basic Rotary
Mounting Diagram
DFR070 - DFR220
3
2
4A
1
4
13
4A
13
4A
4
5
6

Siemens PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4 to 20 mA
Enclosure Rating	IP66/NEMA 4X
Communication	HART
