Installation
Mounting
1
4
| 22
Siemens
Building Technologies
1 Installation
1.1 Mounting
NOTICE
Tip
Mount the sensor in a location that is easy to open the cover and access the
terminals, DIP switches and view the LEDs.

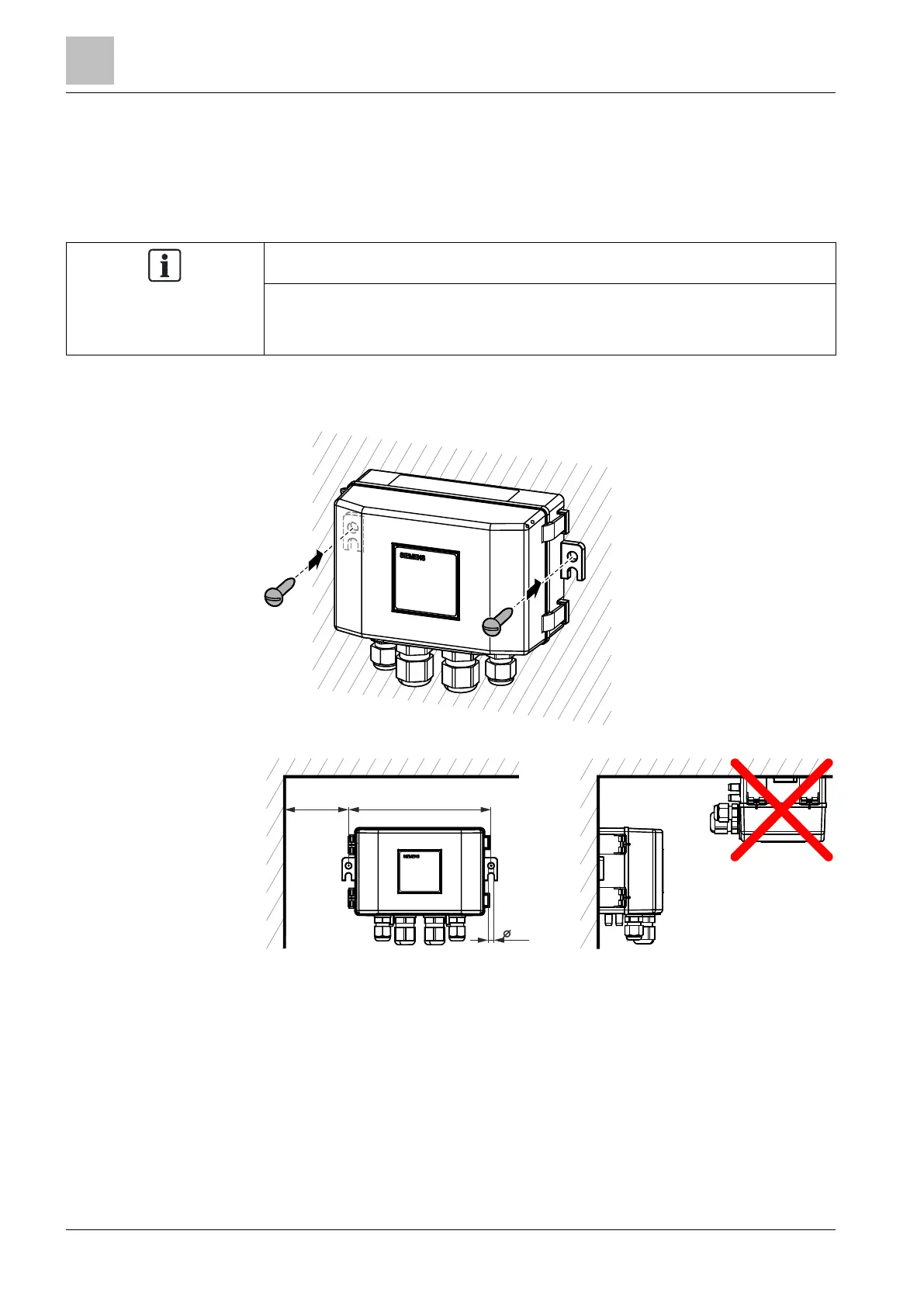

Proceed as follows to mount the sensor to a surface:
Screw the sensor at the 2 brackets (on the device sides) to the mounting
surface.
Keep the following guidelines
All measurements in millimeters
134
5.5
min. 75
q
