Siemens QFA3160 Technical Instructions

Q-Series Outdoor Air and Critical Environment Technical Instructions
Relative Humidity and Relative Humidity & Temperature Sensors Document Number 155-755
February 28, 2013
Siemens Industry, Inc. Page 7

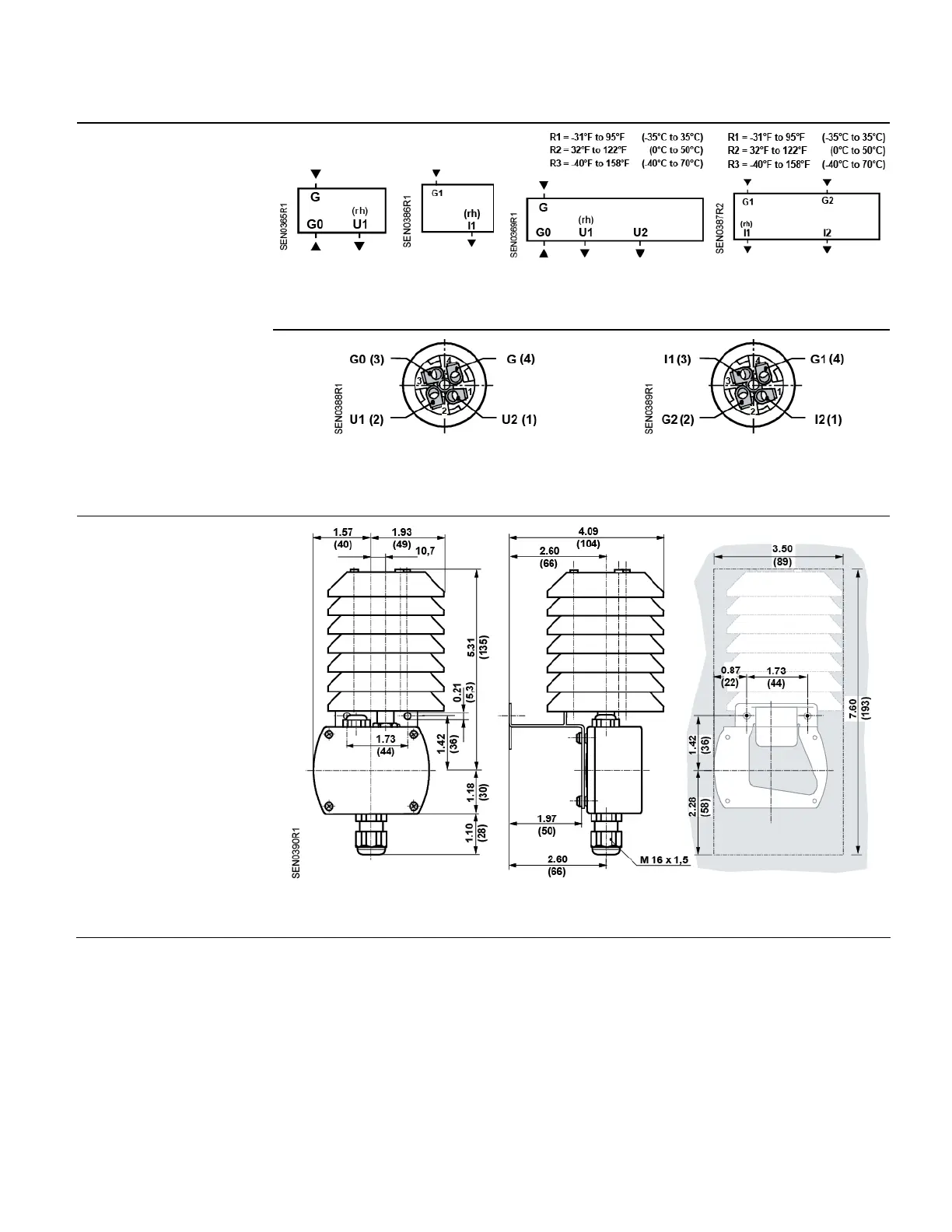

Wiring Terminals
QFA3100 QFA3101 QFA3160/QFA3160D/
QFA4160/QFA4160D
QFA3171/QFA3171D/
QFA4171/QFA4171D
Figure 3. Wiring Terminals.
QFA4160/QFA4160D Front View: Connector
fitted, body removed
QFA4171/QFA4171D Front View:
Connector fitted, body removed
Figure 4. Connectors.
Dimensions
Figure 5. QFA31 Series Sensors with AQF3100 Dimensions in Inches
(Millimeters).
