INSTALLATION SD39RIO-1
January 2001
2-8
Left Side of Backplane
Right Side of Backplane

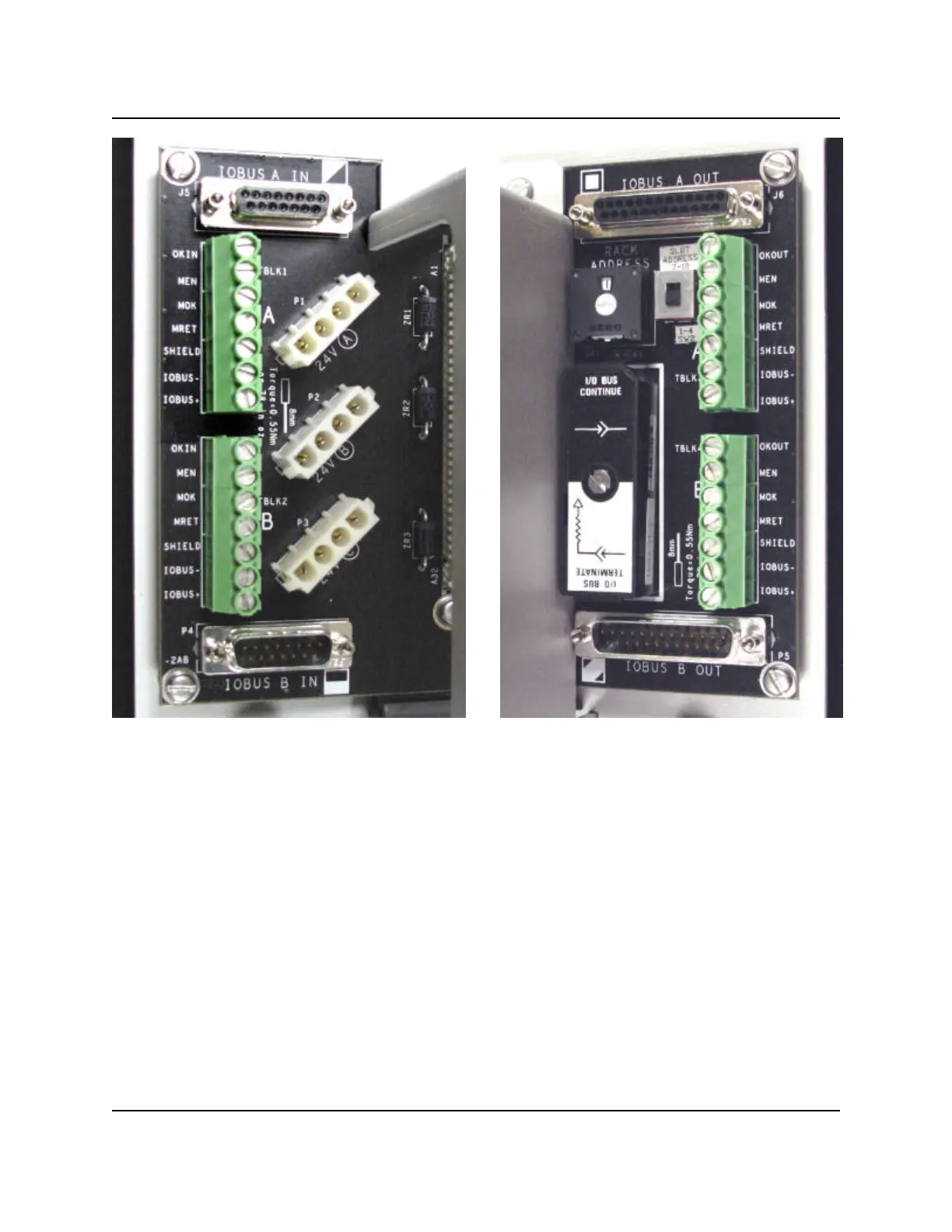

Figure 2-4 Remote I/O Rack IOBUS Connectors
The Remote I/O Rack provides three strain relief tie points on each side of its chassis. For reference, tie
points on the left side of the chassis are shown in Figure 2-5. The tie points are intended to provide strain
relief to IOBUS, power supply, and cooling fan cables. Secure cables to the tie points with common cable
ties.
