Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3182en
Building Technologies Mechanical design 28 May 2009

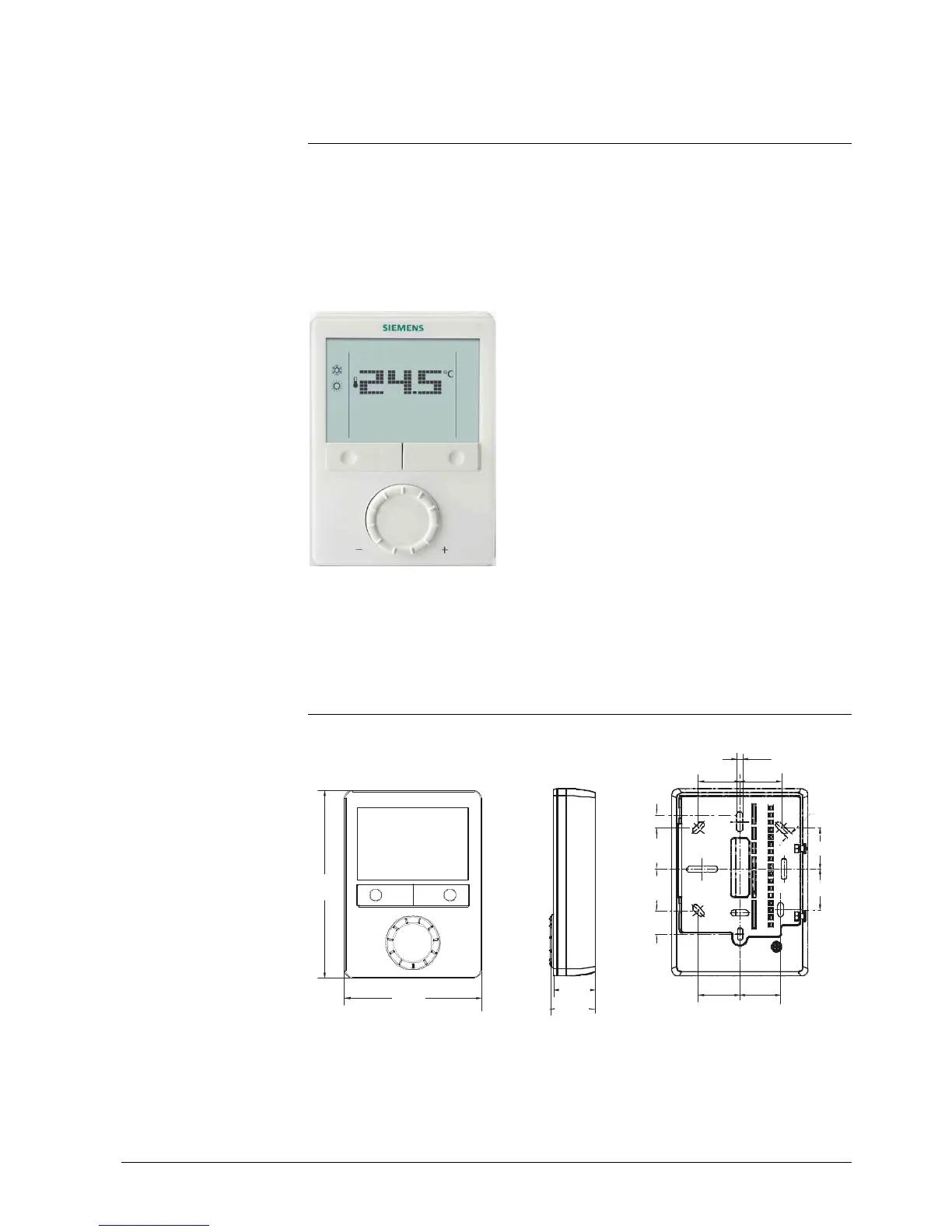

7 Mechanical design
7.1 General
The room thermostat consists of 2 parts:
• Plastic housing which accommodates the electronics, the operating elements
and the temperature sensor
• Mounting plate with the screw terminals
The housing engages in the mounting plate and is secured with 2 screws on the
left side.
Operation see section 5.2.
7.2 Dimensions
128.0
93.0
28.2
27.8
28.5
16.0
9.0
28.3
28.3
27.7
28.3
4.0
4.0
30.8
28.3
28.3
Dimensions in mm
