Siemens RDG400

7 / 42
Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3182en
Building Technologies Use 28 May 2009

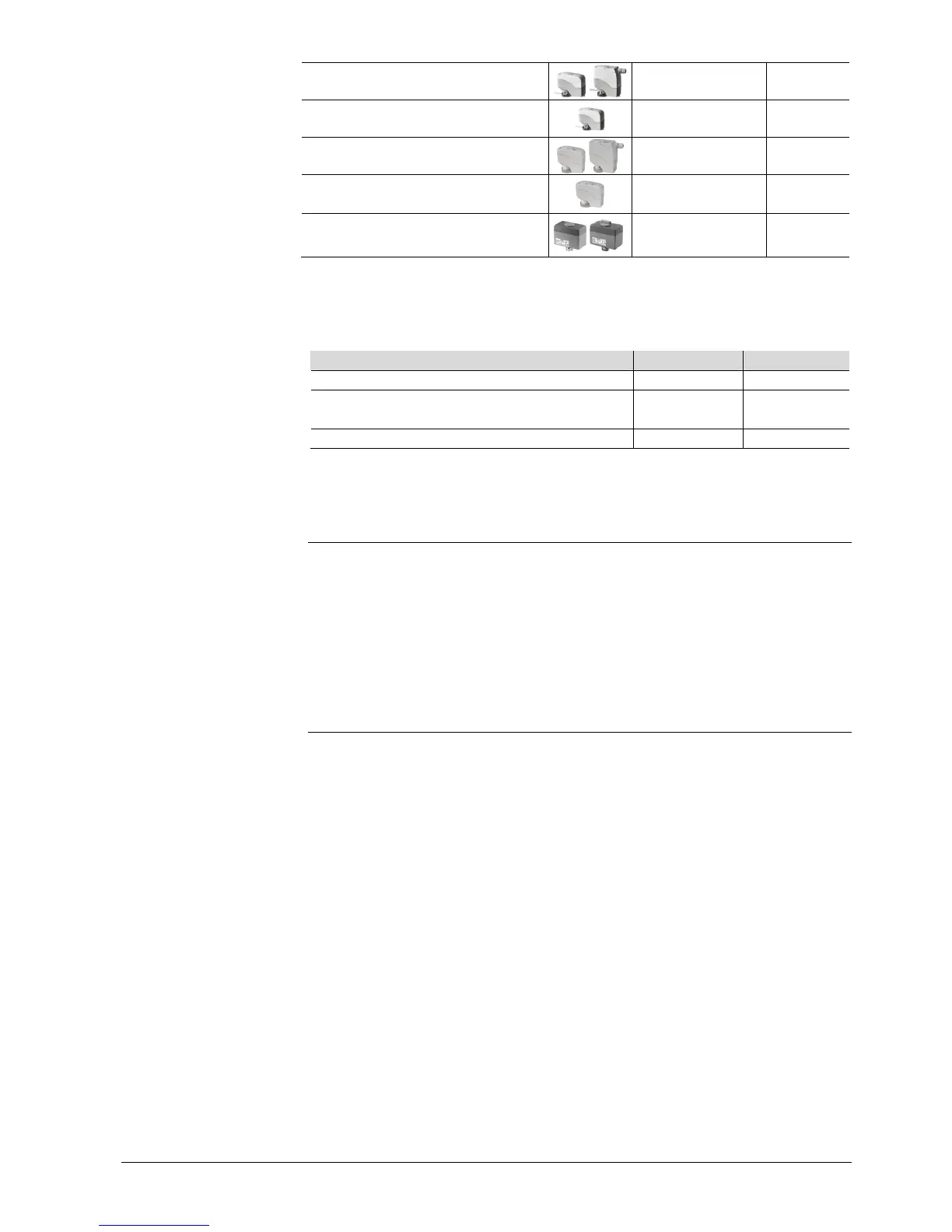

Electrical actuator, 3-position
(
for radiator valve
)
SSA81...
4893
Electrical actuator, 3-position
(
for small valve 2
,
5 mm
)
SSP81…
4864
Electrical actuator, 3-position
(
for small valve 5
,
5 mm
)
SSB81...
4891
Electrical actuator, 3-position
(for Combi-valve VPI45)
SSD81...
4861
Electromotoric actuator, 3-position
(for valves 5.5 mm)
SQS85…
4573
2.4 Accessories
Description Product no. Data Sheet
Changeover mounting kit (50 pcs / package) ARG86.3 1840
Adapter plate 120 x 120 mm for 4“ x 4“ conduit
boxes
ARG70
Adapter plate 112 x 130 mm for surface wiring ARG70.2
2.5 Ordering
When ordering, please indicate product no. and description:
E.g. RDG400 room thermostat
Order valve actuators separately.
3 Use
The room thermostat is designed for the following types of system:
VAV systems via ON/OFF or modulating control outputs:
• Single-duct system
• Single-duct system with electrical heater
• Single-duct system and radiator / floor heating
• Single-duct system with heating / cooling coil
3-position actuators
AC 24 V
