Introduction
1.2Description
1
5
1
4
2
3
1
POWER LED
2
RESET Button
3
Communication Ports
4
Port Status Indicator LEDS
5
RS232 Serial Console Port (DB9)

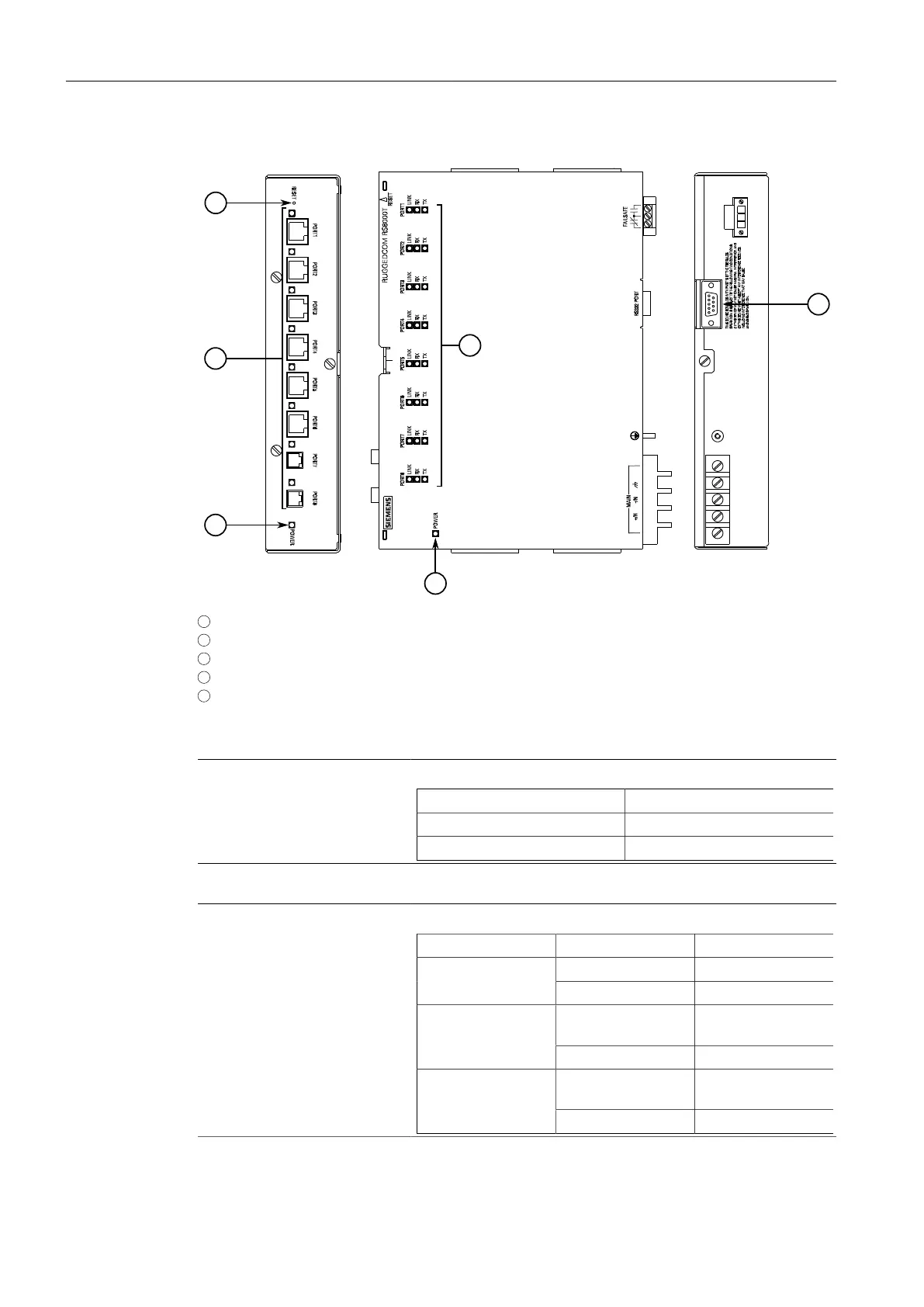

Figure1.1 Front and Rear Panels
POWER LED Illuminates when power is being supplied to the device.
Color Description
Green Device ready
Off No power
RESET Button Shuts down and restarts the device. For more information, refer to
"Resetting the Device (Page 18)".
Port Status Indicator LEDs These LEDs indicate when serial ports are active.
LED State Meaning
Solid Link detectedLink
Off No link detected
Blinking Link activity
(receiving)
RX
Off No link activity
Blinking Link activity
(transmitting)
TX
Off No link activity
RUGGEDCOM RS8000T
Installation Manual, 01/2021, C79000-G8976-1023-05
3
