Siemens RUGGEDCOM RS8000T User Manual

Installing the Device
2.1.1Mounting the Device on a DIN Rail
Note
For detailed dimensions of the device with either rack, DIN rail or panel hardware
installed, refer to "Dimension Drawings (Page 22)".
2.1.1 Mounting the Device on a DIN Rail
The RUGGEDCOM RS8000T can be ordered with a panel/DIN rail adapter preinstalled
on the back of the chassis. Use the adapter to mount the device to a standard 35 mm
(1.4 in)IEC/EN 60715 or TS35 DIN rail.
Mounting the Device
To mount the device to a DIN rail, do the following:
1. Hook the top teeth of the adapter onto the DIN rail.
Note
The adapter features a sliding release with a slot at the bottom for a flathead
screwdriver.
1
2
3
1
1
2
1
DIN Rail
2
Panel/DIN Rail Adaptor

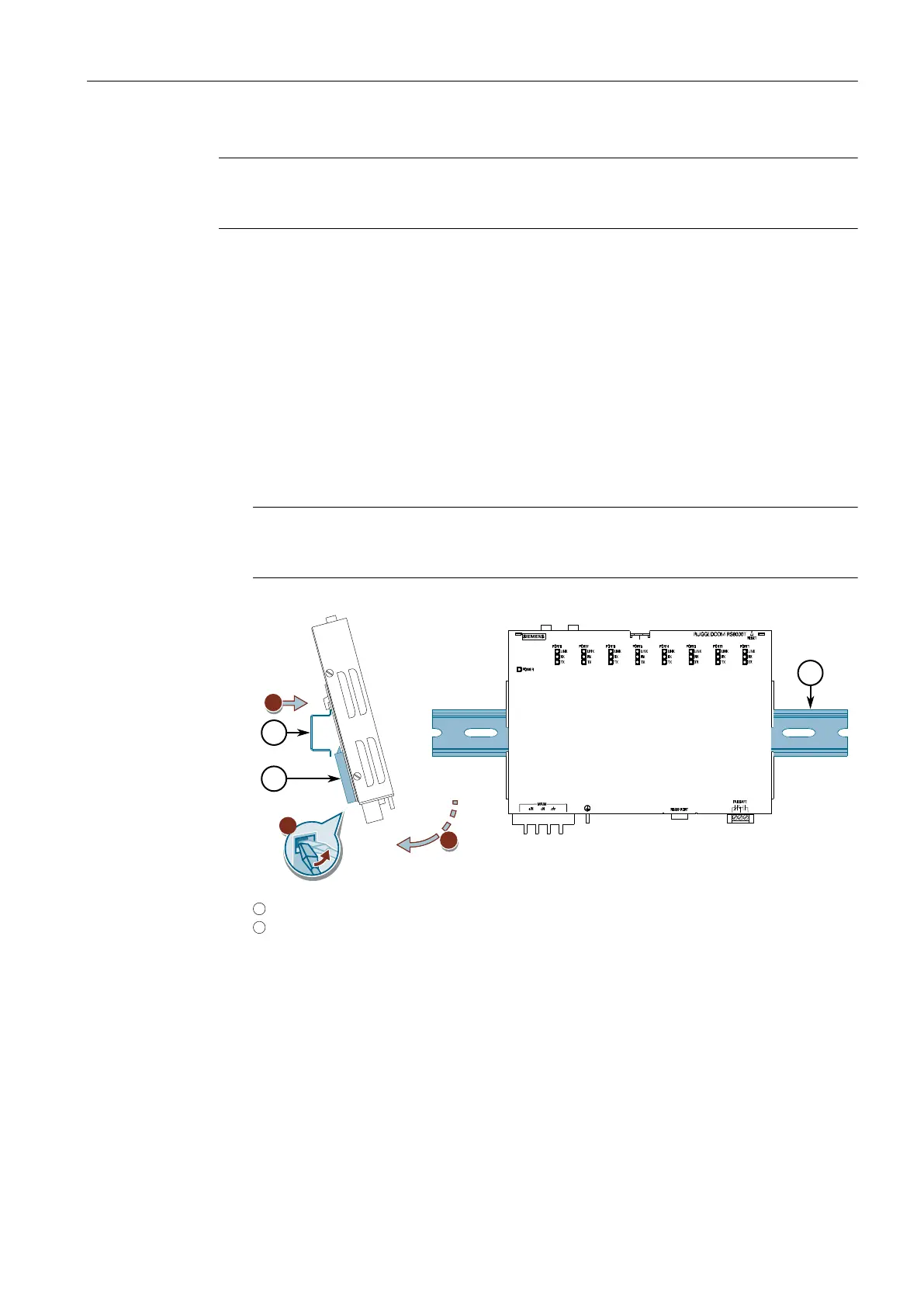

Figure2.1 Mounting the Device to a DIN Rail
2. Insert a flathead screwdriver into the slot of the sliding release and move it
down.
3. Push the device against the bottom of the DIN rail, then let go of the sliding
release to latch the device.
8
RUGGEDCOM RS8000T
Installation Manual, 01/2021, C79000-G8976-1023-05
