Siemens SCALANCE X101-1 User Manual

SCALANCE X-100 media converter
Operating Instructions, 04/2016, C79000-G8976-C346-02
11
Network topologies
2
2.1
Possible network topologies
Switching technology allows extensive networks to be set up with numerous nodes and
simplifies network expansion.
Which topologies can be implemented?
Using the media converters of the SCALANCE X-100 product line, you can implement bus
and star topologies. It is also possible to link rings and to use two identical media converters
in a ring structure. See also "Cascading two media converters (Page 26)".
Note
Keep to the maximum permitted cable lengths of the devices you are
using. You will find the
permitted cable lengths in the section "
Technical specifications (Page 41)".
Bus topology

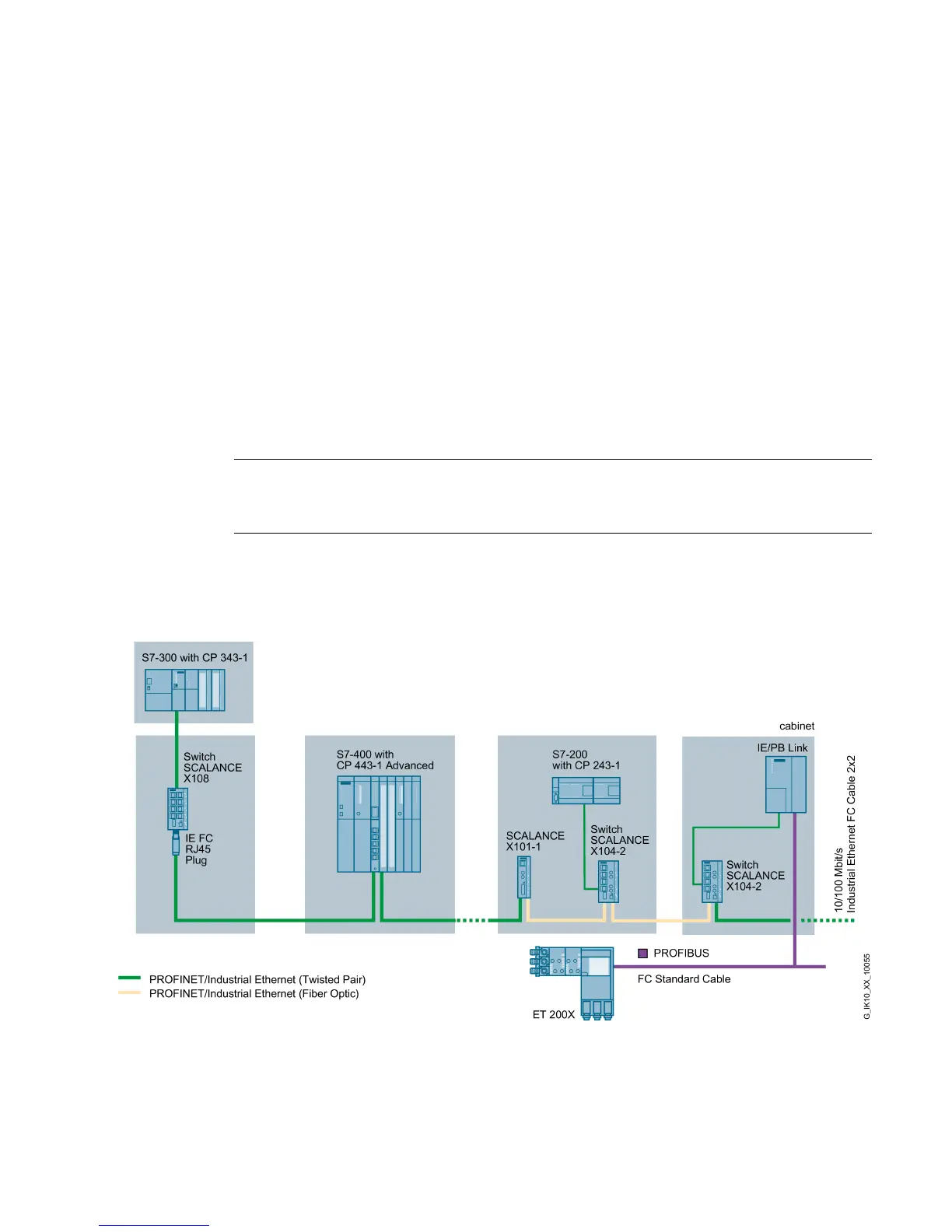

Figure 2-1 Example of an electrical/optical bus topology with SCALANCE X101-1
