4.3 Installation on a standard rail
SCALANCE X-100 media converter
30 Operating Instructions, 04/2016, C79000-G8976-C346-02
Installation on a standard rail
Installation on a SIMATIC S7-300 standard rail
To install the device on an S7-300 standard rail, follow the steps below:
1. Place the first housing guide of the housing on the top edge of the S7-300 standard rail.
2. Screw the device to the underside of the standard rail (tightening torque 2 Nm).
3. Fit the connectors for the power supply. See also section "Power supply (Page 33)".
4. Fit the connectors for the signaling contacts. See also section "Signaling contacts
(Page 35)".
5. Insert the terminal blocks into the sockets on the device.

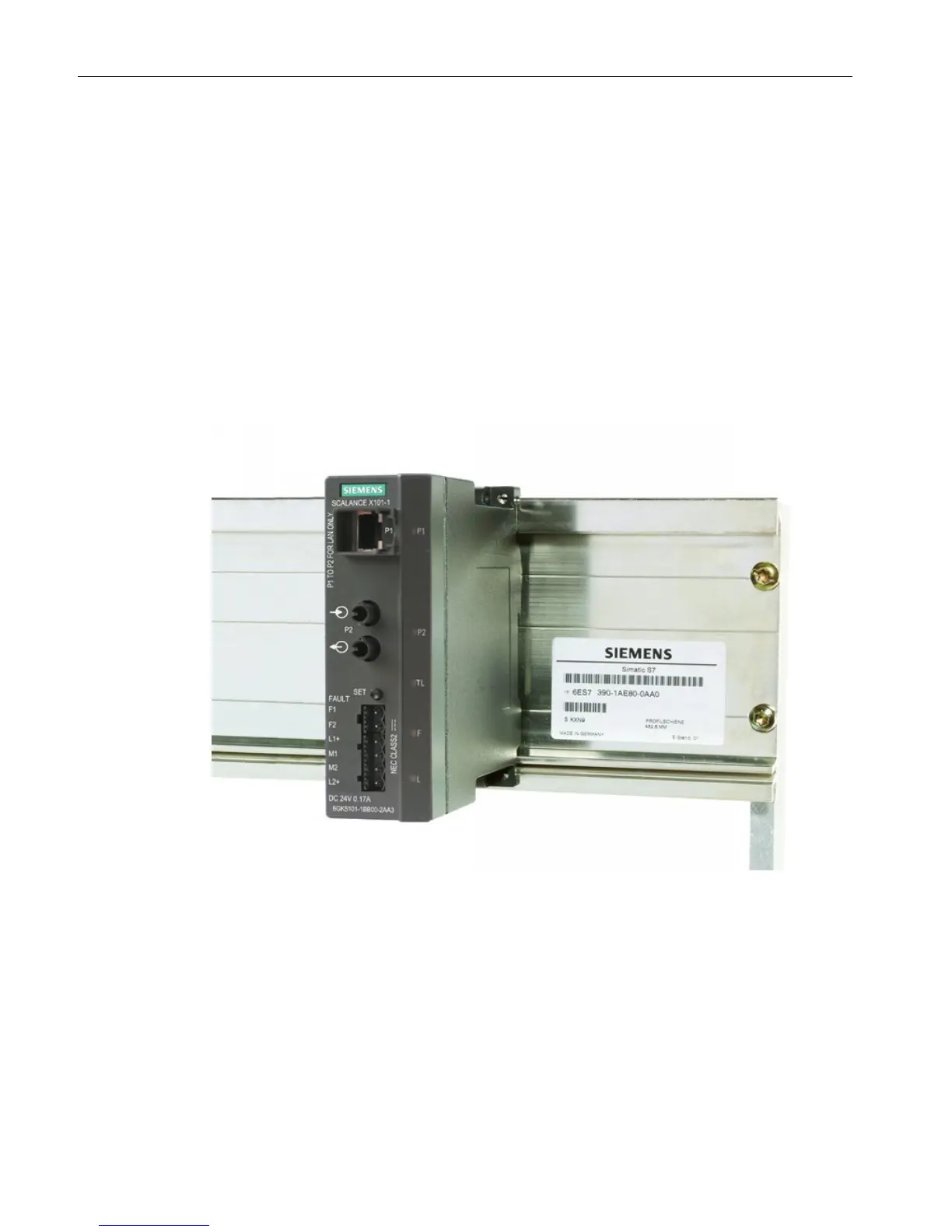

Figure 4-3 Standard rail mounting X-100MC
To remove the device from the S7-300 standard rail, follow the steps below:
1. Disconnect all connected cables.
2. Release the screw on the bottom of the standard rail.
3. Lift the device off the standard rail.
