Installation
4.2 Installation on a DIN rail
SCALANCE X-100 media converter
28 Operating Instructions, 04/2016, C79000-G8976-C346-02
To install the device on a 35 mm DIN rail, follow the steps below:
1. Place the second housing guide of the device on the top edge of the DIN rail.
2. Press the device down against the DIN rail until the spring catch locks in place.
3. Fit the connectors for the power supply. See also section "Power supply (Page 33)".
4. Fit the connectors for the signaling contacts. See also section "Signaling contacts
(Page 35)".
5. Insert the terminal blocks into the sockets on the device.

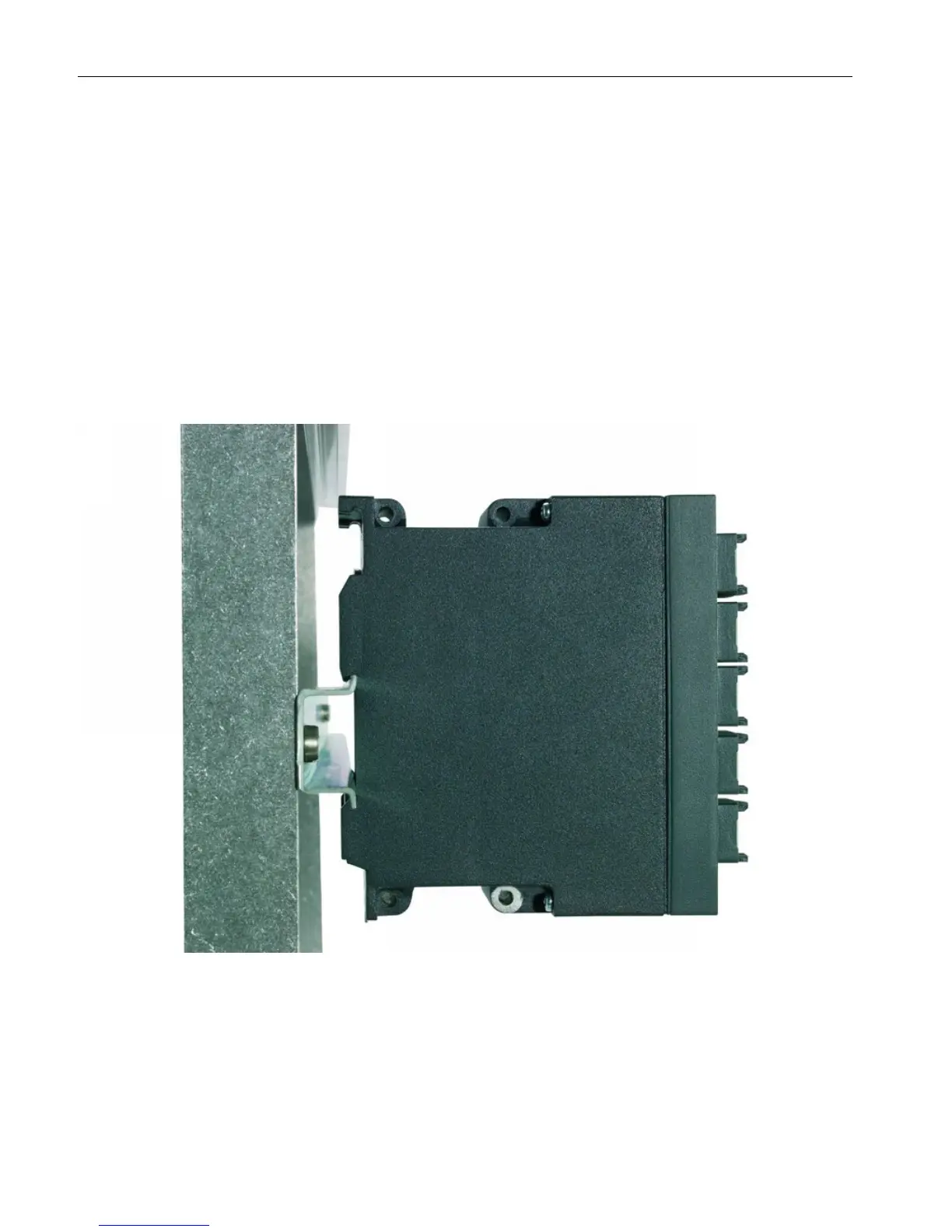

Figure 4-1 Installation on a 35 mm DIN rail
