Network topologies
2.1 Possible network topologies
SCALANCE X-100 media converter
Operating Instructions, 04/2016, C79000-G8976-C346-02
13
Ring topology

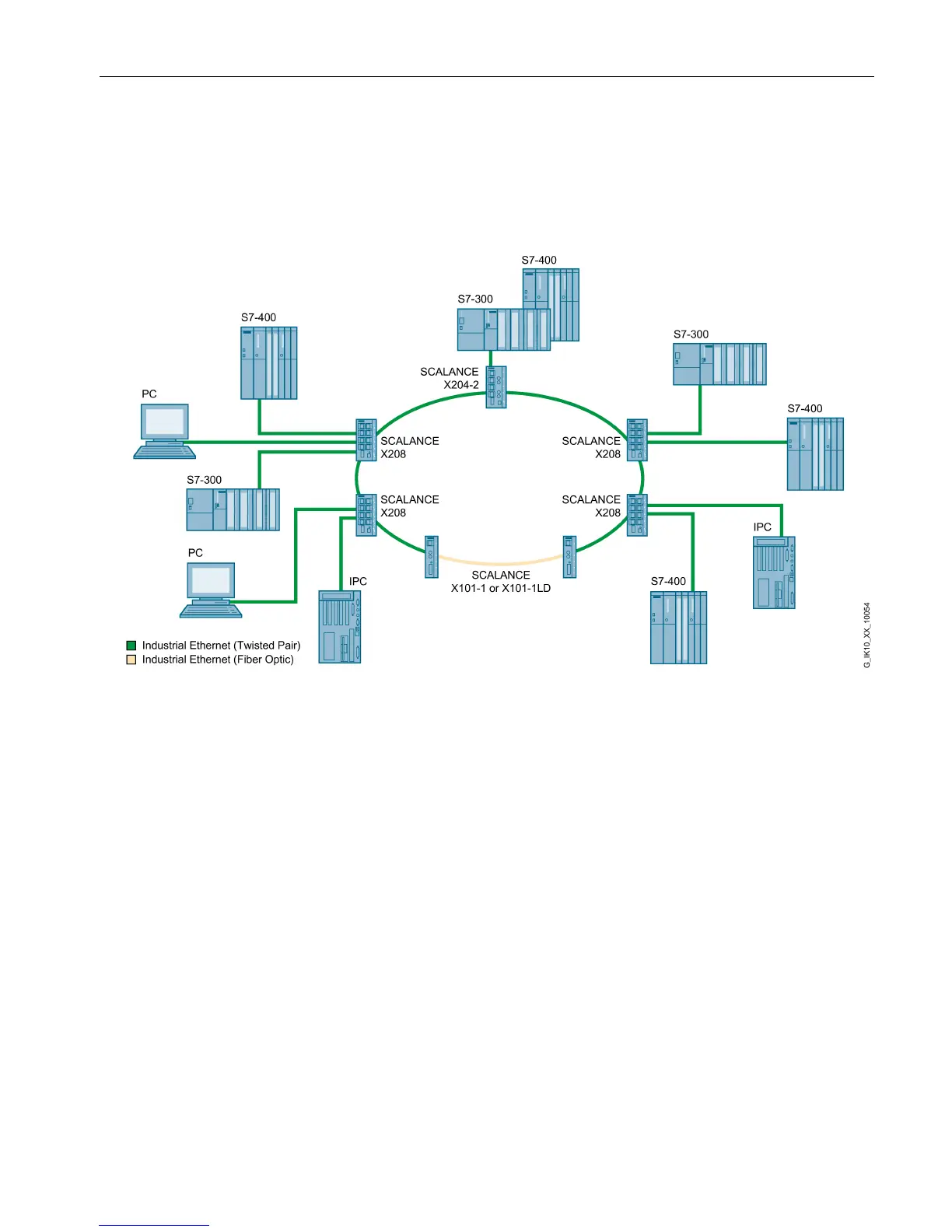

The following figure shows an electrical ring with a SCALANCE X204IRT as redundancy
manager and SCALANCE X208 IE switches. Using the media converters SCALANCE X101-
1 or SCALANCE X101-1LD, there is a conversion to an optical section.
Figure 2-3 Example of an electrical ring with SCALANCE X101-1 or SCALANCE X101-1LD

Siemens SCALANCE X101-1 Specifications

General

Brand	Siemens
Model	SCALANCE X101-1
Category	Media Converter
Language	English
