Applications
3.2 Use as Motor Circuit Protector (MCP) for starter combinations
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
135

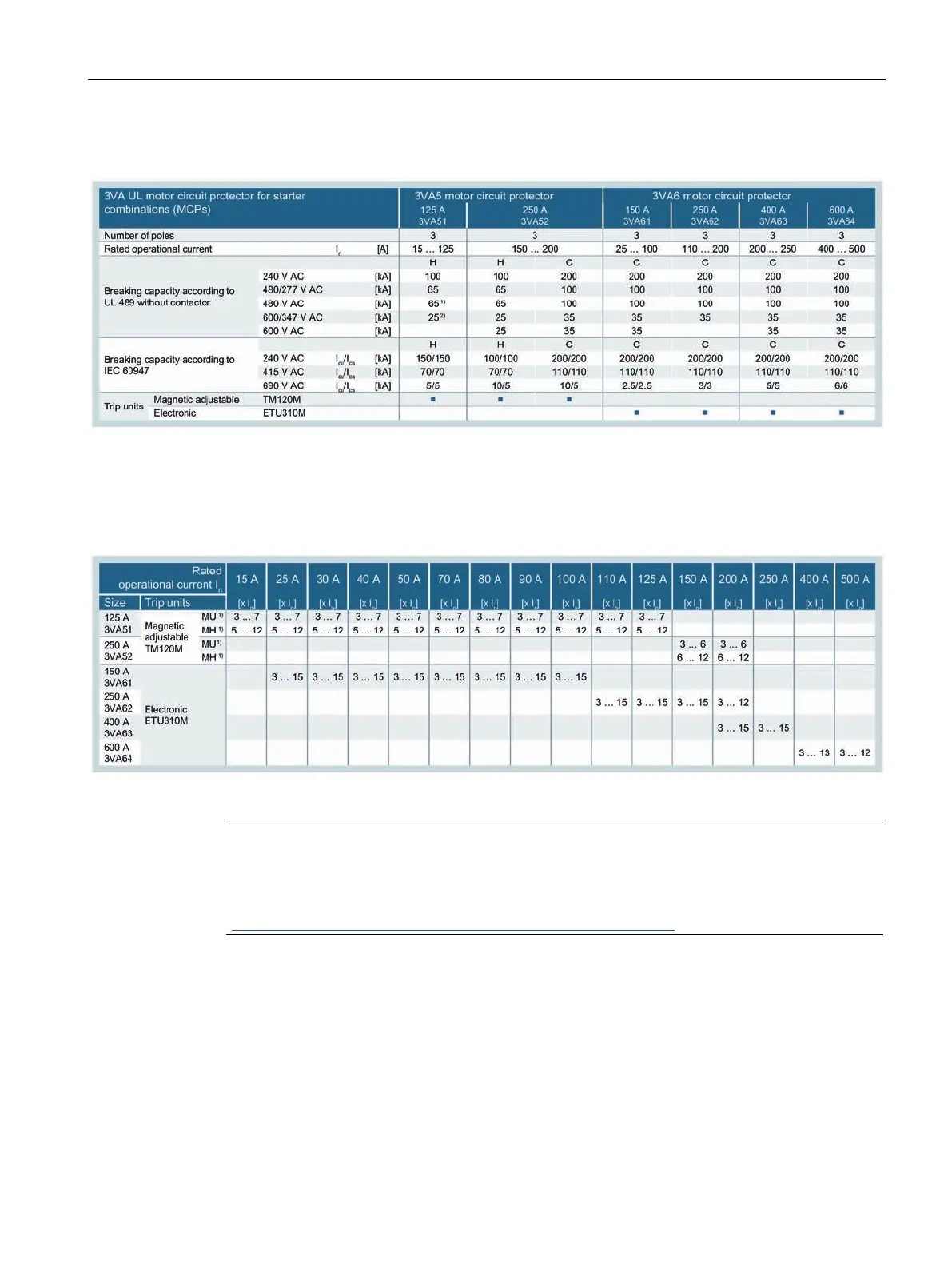

3VA UL motor circuit protectors for starter combinations
1)
Applies to I
n
15 A to 90 A
2)
I
n
40 A to 90 A: 18 kA
I
n
100 to 125 A: 14 kA:
Trip units for starter combinations
1)
9th and 10th digit of article number, e.g. 3VA6115-5
31-0AA0
For the relevant short-circuit current ratings (SCCR ratings) of the combination of contactor
and overload relay, please refer to the corresponding UL certificates for contactor and
overload relay. These can be found in the Service and Support Portal
(https://support.industry.siemens.com/cs/ww/en/view/29755649
).
