Siemens Sentron 3VA - Technical Specifications; Circuit Diagrams; 3 VA5 Molded Case Circuit Breakers; Basic Units

To Next Page

To Previous Page

3VA molded case circuit breakers with UL and IEC certification

Manual, 01/2019, L1V30435333-01

385

Technical specifications

6.1

Circuit diagrams

6.1.1

3VA5 molded case circuit breakers

6.1.1.1

Basic units

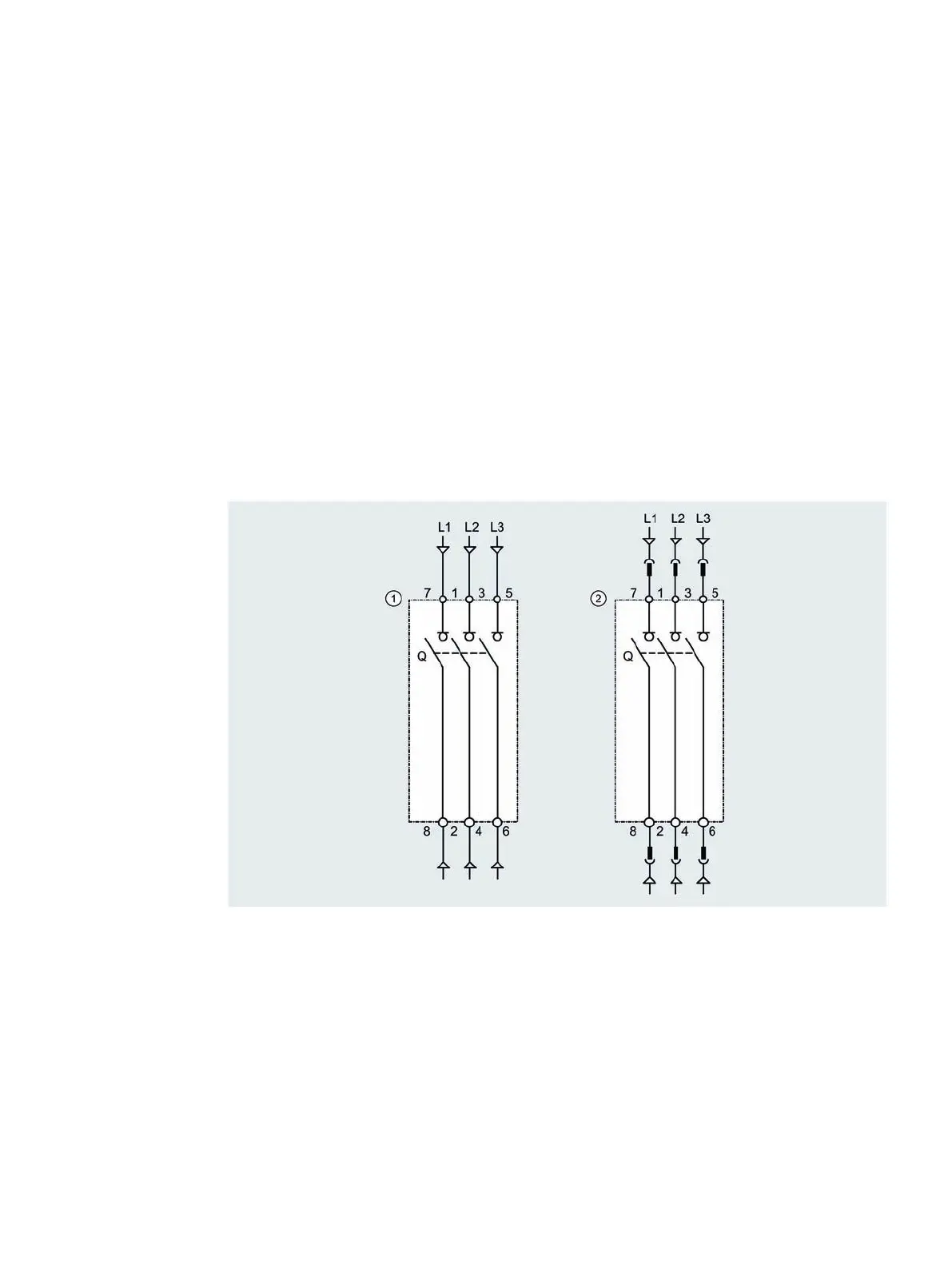

Molded case switch / motor circuit protector

①

Fixed mounting

②

Plug-in/draw-out technology
