Siemens Sentron 3VA - Configuration of MMB300 with a 3 VA6 Molded Case Circuit Breaker

To Next Page

To Previous Page

Accessories

4.10 MMB300 maintenance mode box

3VA molded case circuit breakers with UL and IEC certification

Manual, 01/2019, L1V30435333-01

353

4.10.2

Configuration of MMB300 with a 3VA6 molded case circuit breaker

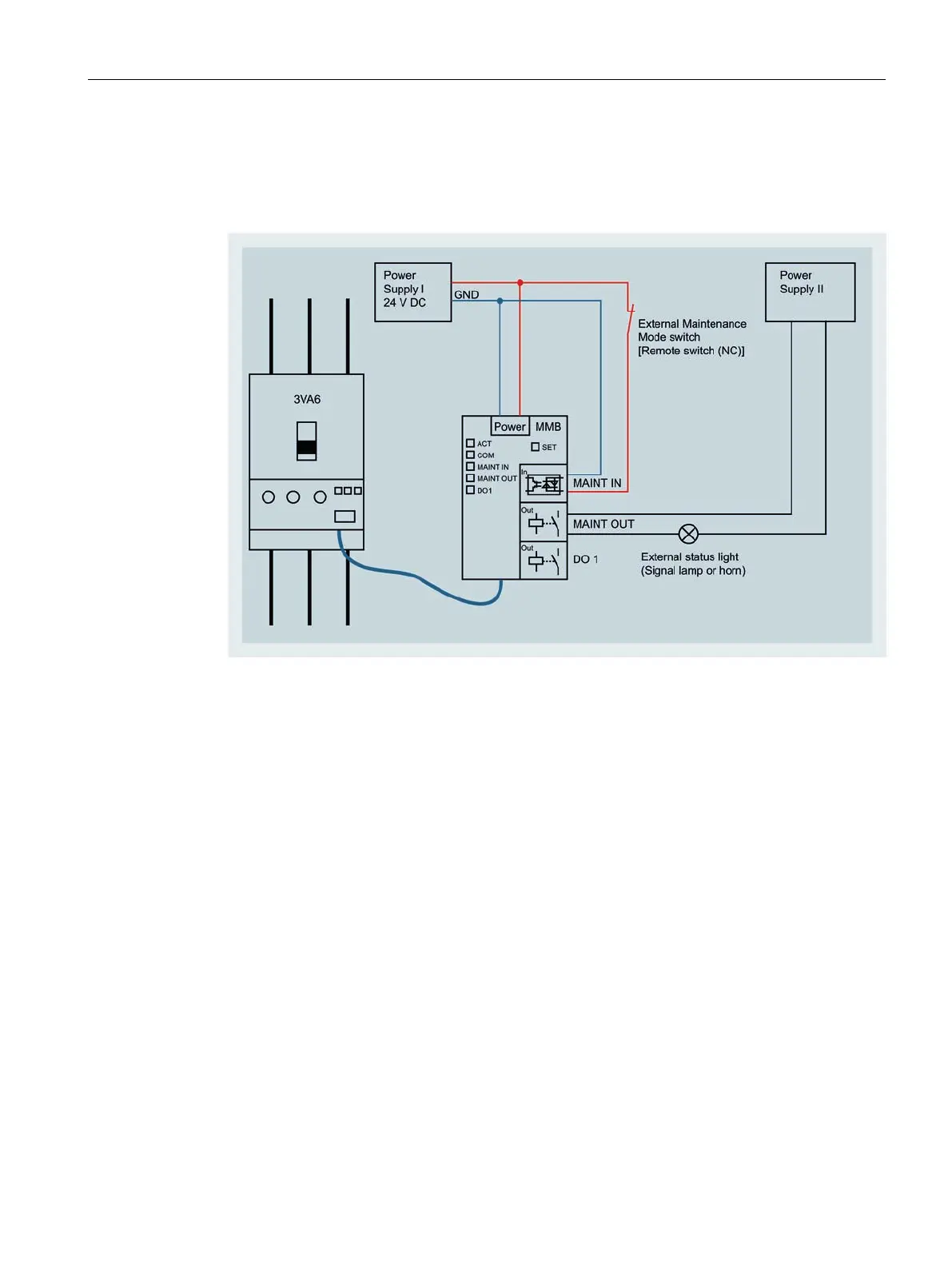

The possible configuration of the MMB300 maintenance mode box with the associated

molded case circuit breaker is shown in the following.
