Accessories
4.5 Manual operators
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
287
Door interlocking with the operator kit with Bowden cable
The handle of the operator kit with Bowden cable interlocks the panel door as soon as the
handle is in position ON (I).

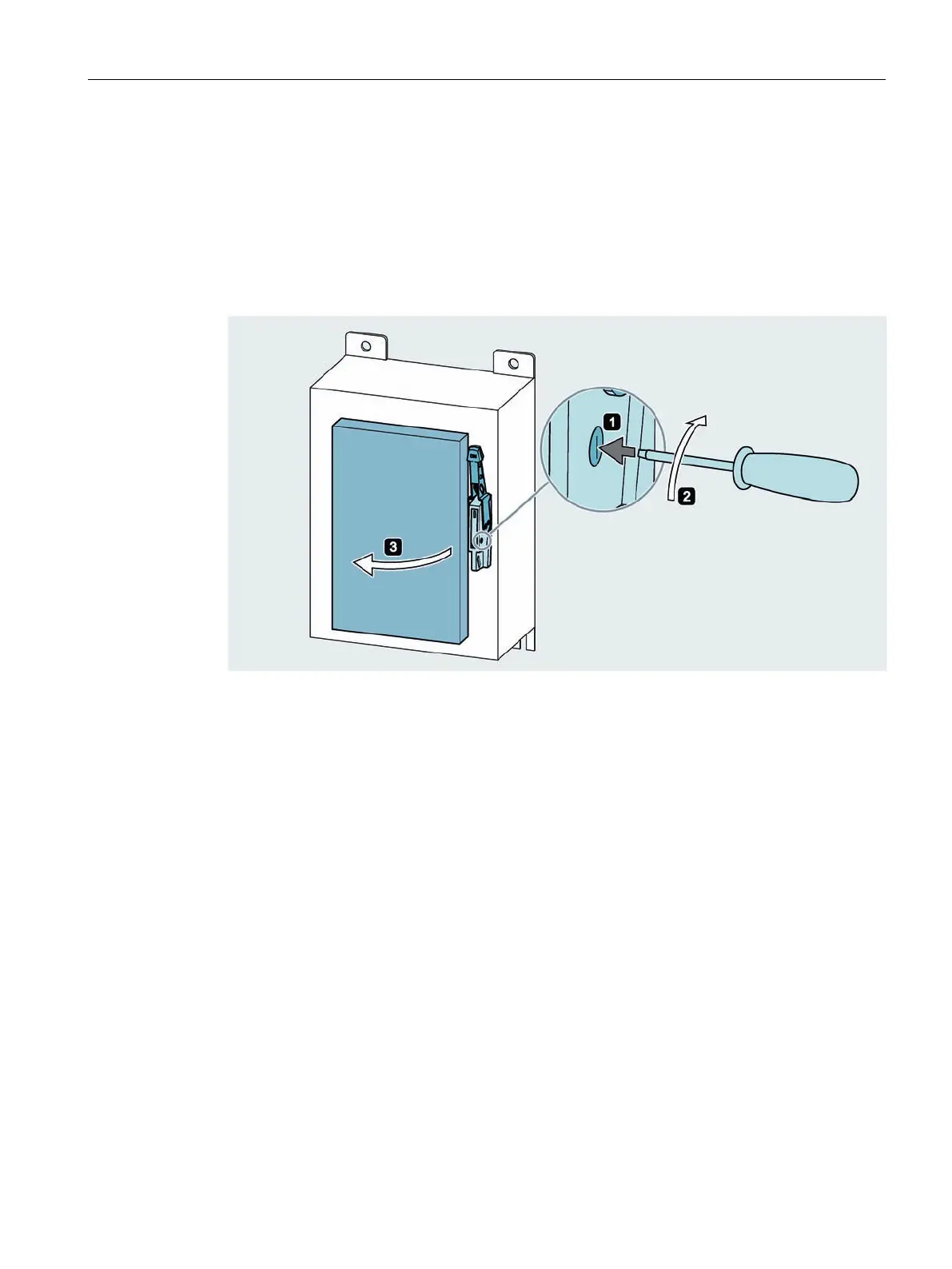

Defeat function of the door interlock
In order to open the panel door even when the molded case circuit breaker is closed, the
door interlock can be defeated. This is done using the screw on the side of the handle.
1. Use a screwdriver to turn the screw clockwise by 90°.
2. Keep the screw turned while the door is opened.
